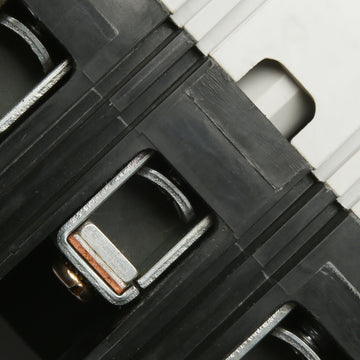

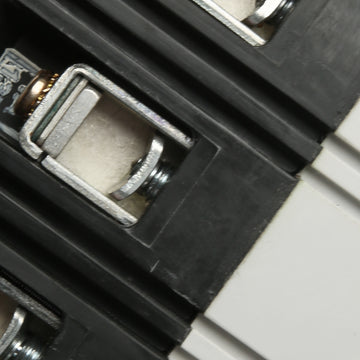

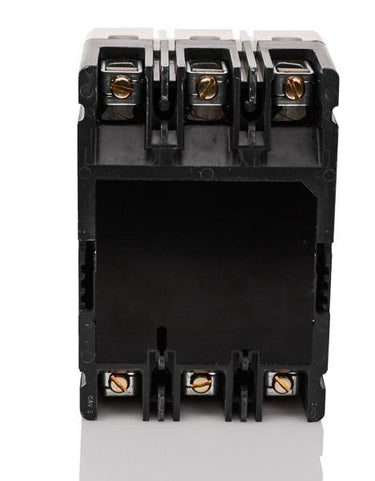

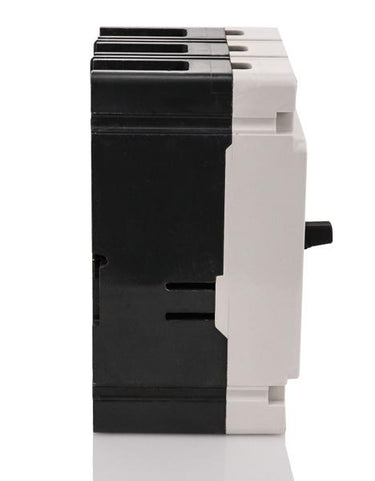

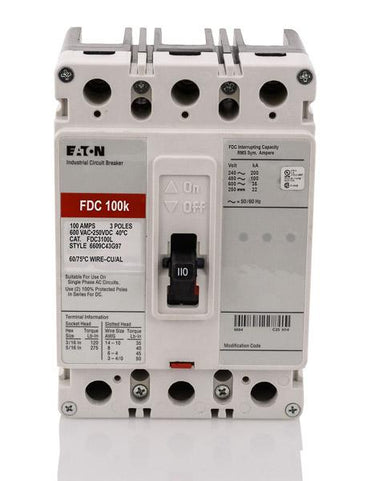

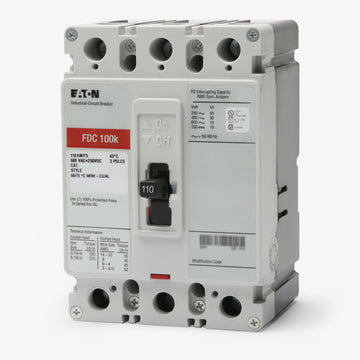

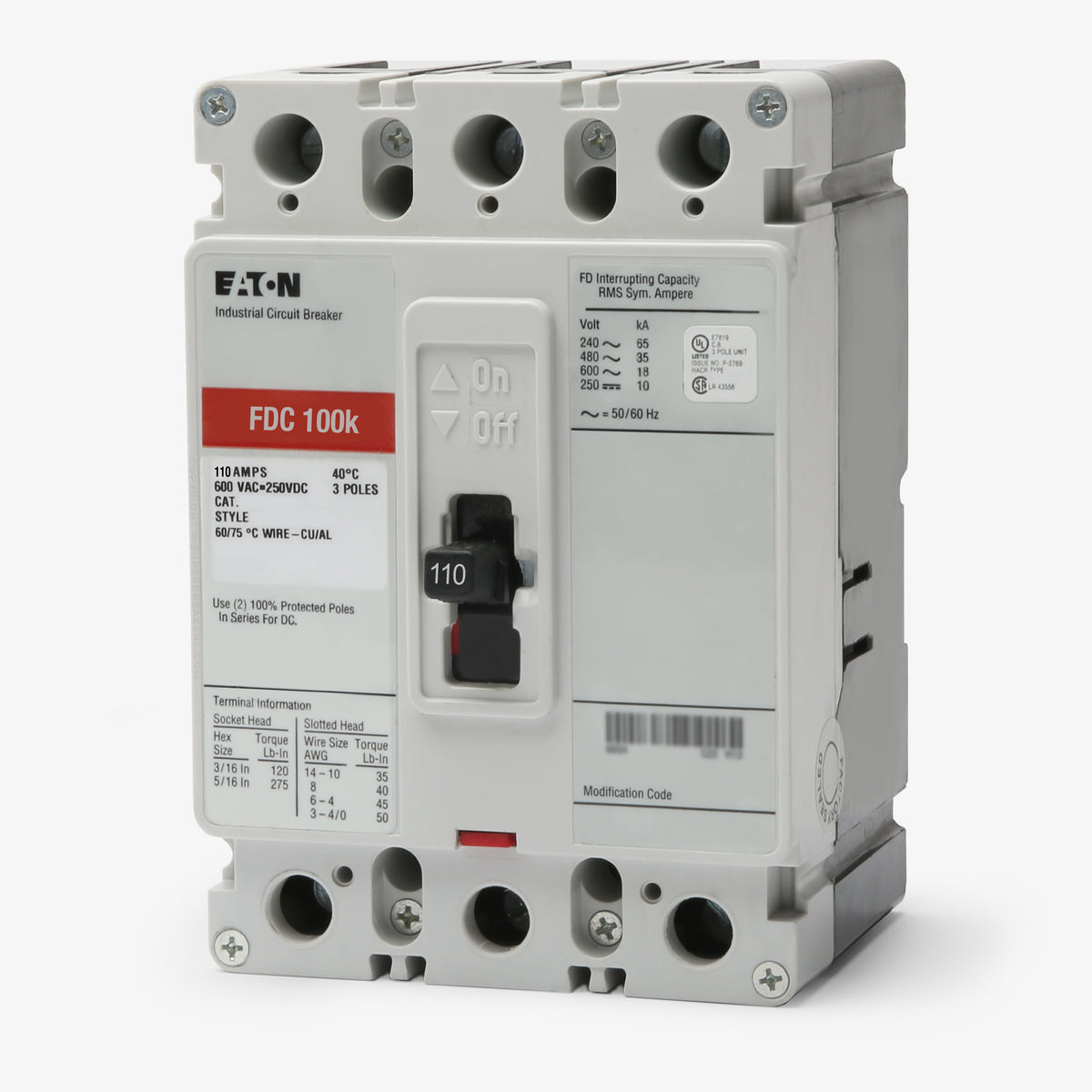

Eaton / Cutler-Hammer FDC3110L Molded Case Circuit Breaker
- 110A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
FDC3110L
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FDC3110L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FDC3110L - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Built for versatile integration, the Eaton FDC3110L is a 3-pole, 110A molded case circuit breaker from the trusted Series C family. It offers reliable thermal-magnetic trip functions for industrial power distribution. This F-Frame MCCB features a unit mount configuration and includes both line and load lugs. With a high interrupting capacity of 200kAIC at 240VAC and 100kAIC at 480VAC, it handles severe fault currents.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FDC3110L |
| Series | FDC |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, F-Frame Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersCan the Eaton FDC3110L replace an older Westinghouse FDC3110L?
Yes. Eaton acquired the Westinghouse distribution equipment business in the 1990s. The current Eaton Cutler-Hammer FDC3110L is an exact, direct replacement for the legacy Westinghouse breaker with the same catalog number.
Is the FDC3110L suitable for reverse feed applications?
Yes. Eaton Series C F-frame thermal magnetic circuit breakers are suitable for reverse feed use because they do not have specific line and load directional restrictions.
What is the difference between Eaton FD, HFD, and FDC circuit breakers?
These prefixes indicate the interrupting capacity of the Series C F-frame breakers. FD is the standard rating, HFD is the high interrupting rating, and FDC provides the extra-high interrupting capacity, which is rated at 100kA at 480VAC for this model.
Is the FDC3110L HACR rated?
Yes. All Eaton Series C F-frame circuit breakers are HACR rated for use with heating, air conditioning, and refrigeration equipment.
Can the trip unit on the FDC3110L be swapped to change the amperage?
No. The FDC3110L features a non-interchangeable trip unit. The thermal and magnetic trip functions are fixed at the factory and cannot be modified or replaced in the field.
