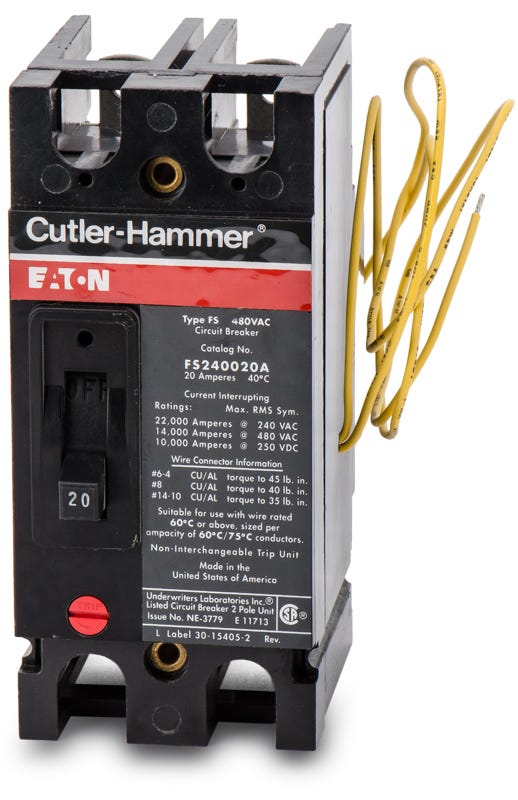

Eaton / Cutler-Hammer FS240020ASR01 Molded Case Circuit Breaker
- 20A
- 2 Pole
- Unit Mount
Quantity
Eaton / Cutler-Hammer FS240020ASR01 - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description
The FS240020ASR01 is a 2-pole, 20A molded case circuit breaker from Eaton's Series C family. Designed for commercial and industrial applications, it provides reliable overcurrent protection for switchboards, motor control centers, and panelboards. This unit mount MCCB features a non-interchangeable thermal-magnetic trip unit with long-time and instantaneous (LI) protection. It is rated for 18kAIC at 240VAC and 14kAIC at 480VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS240020ASR01 |
| Series | FS |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
6 answersWhat panels and equipment is the FS240020ASR01 compatible with?
This F-Frame breaker is designed for use in Eaton Series C panelboards, switchboards, and motor control centers. As a unit-mount breaker, it bolts directly to the chassis or bus of compatible enclosures.
Can the FS240020ASR01 replace older Cutler-Hammer breakers?
Yes, this 20A F-Frame breaker can successfully replace older EHD2020 and FDB2020 models, provided the 14kAIC at 480VAC interrupting rating meets your specific system requirements.
What wire sizes are accepted by the terminals on this breaker?
The standard lugs accept wire gauges ranging from 14 AWG to 1/0 AWG. When installing, ensure conductors are properly torqued according to the specifications printed on the breaker faceplate.
Can this circuit breaker be used in direct current (DC) systems?
Yes, the FS240020ASR01 is rated for use in DC applications up to 250VDC, where it provides a 10kA interrupting capacity. This makes it suitable for specific industrial control and battery system applications.
What type of protection does the trip unit provide?
It features a non-interchangeable thermal-magnetic trip unit with fixed thermal and fixed magnetic settings. This delivers standard long-time and instantaneous (LI) overcurrent and short-circuit protection for commercial and industrial power distribution.
Does this breaker provide ground fault or arc fault protection?
No, this is a standard thermal-magnetic breaker. It does not include Ground Fault Circuit Interrupter (GFCI) or Arc Fault Circuit Interrupter (AFCI) capabilities, which are typically required for certain residential or specialized commercial circuits.
