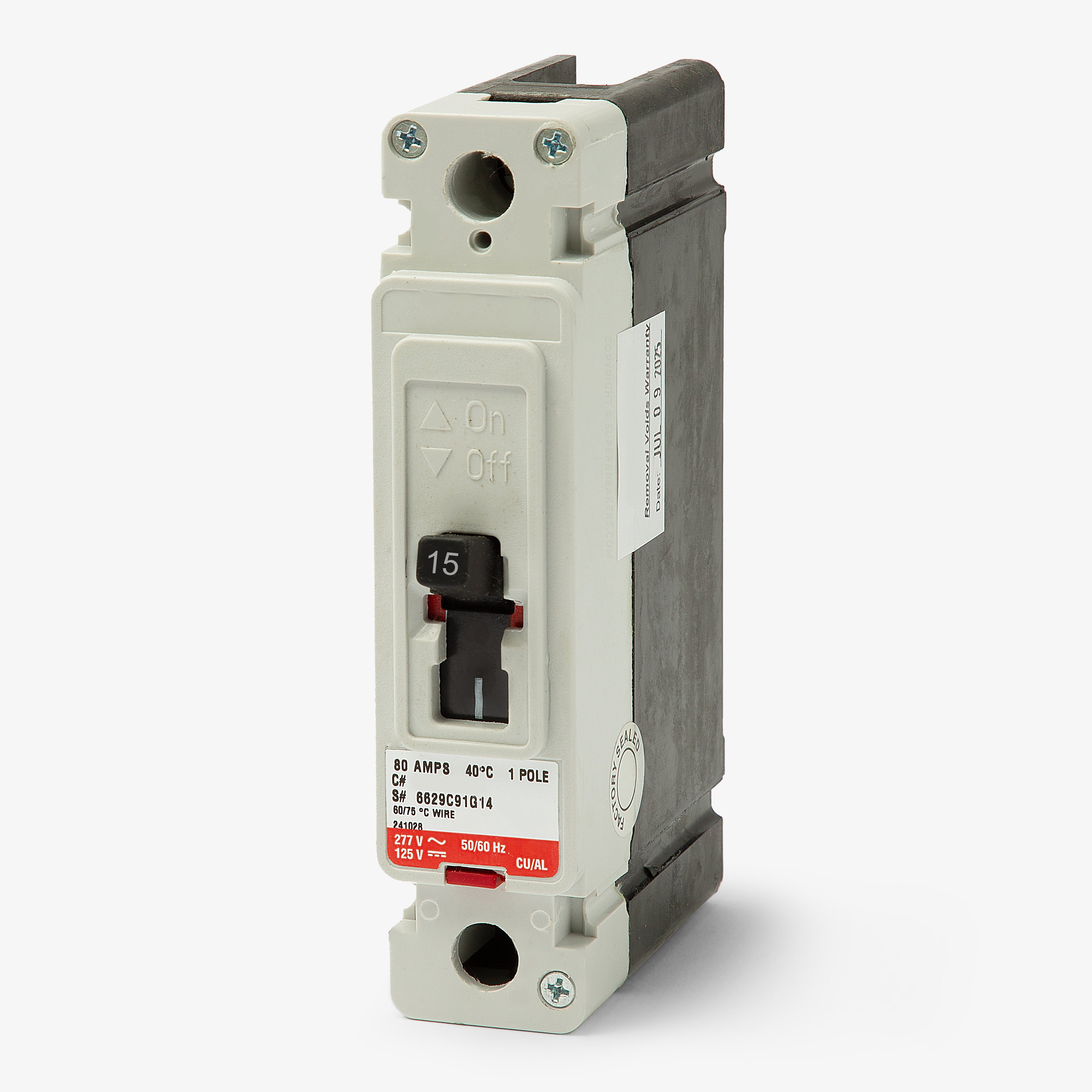

Eaton / Cutler-Hammer HFD1015L Molded Case Circuit Breaker
- 15A
- 1 Pole
- Unit Mount
Quantity
Eaton / Cutler-Hammer HFD1015L - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Description
Designed for cable-in/cable-out installations, this 15-amp Series C circuit breaker features factory-installed line and load lugs for versatile unit mounting. It fits seamlessly into Pow-R-Line panelboards, motor control centers, and standalone enclosures. The F-Frame mechanism delivers a substantial 65kA interrupting capacity at 277VAC, making it ideal for heavy commercial use. Additional certifications include HACR and HID ratings, ensuring compliance for specialized mechanical loads.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD1015L |
| Series | HFD |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 277VAC, 125VDC, 347VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 277VAC, 10kA @ 125VDC, 35kA @ 347VAC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | ABS, CE, CSA, HACR, HID, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat does the L suffix indicate on the HFD1015L catalog number?

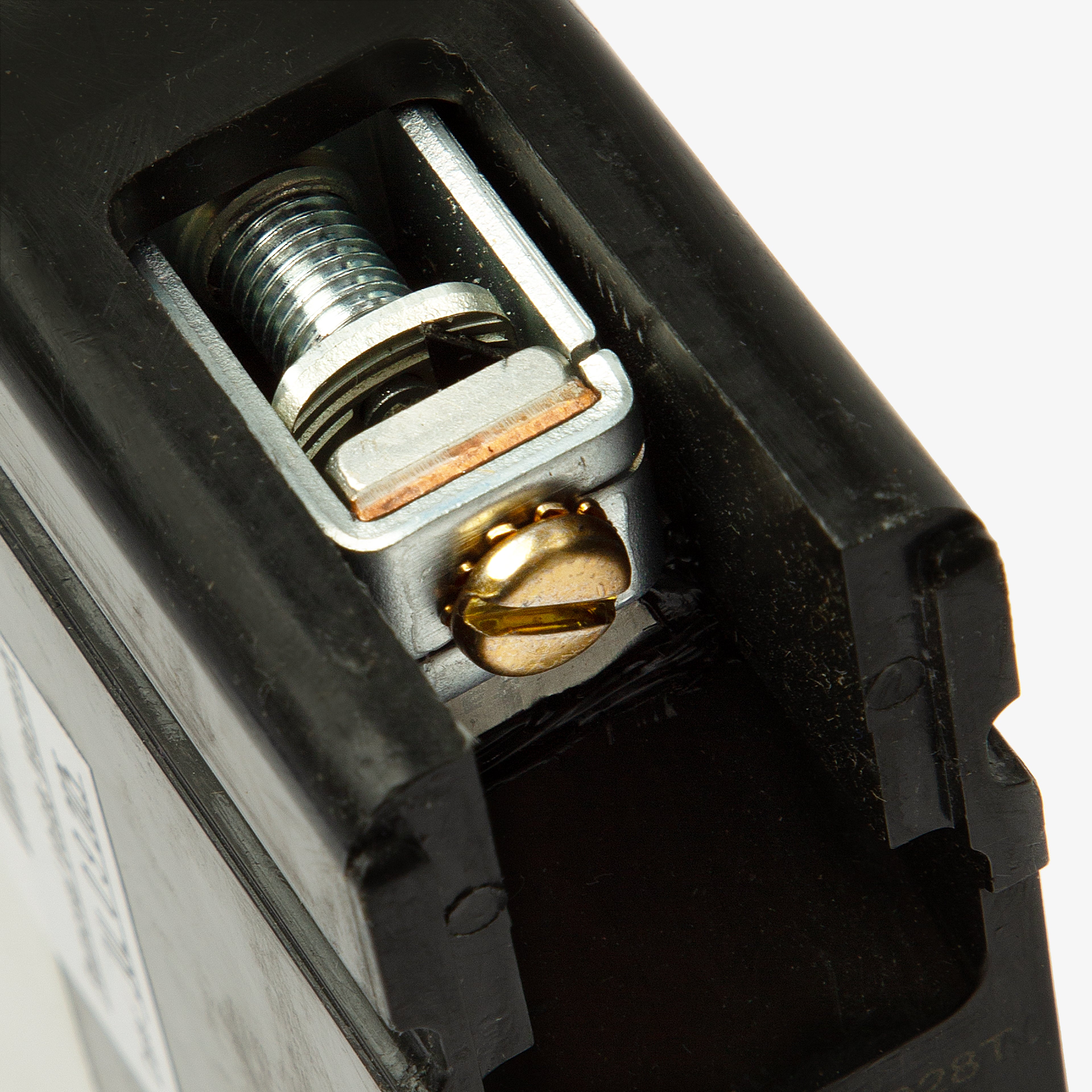

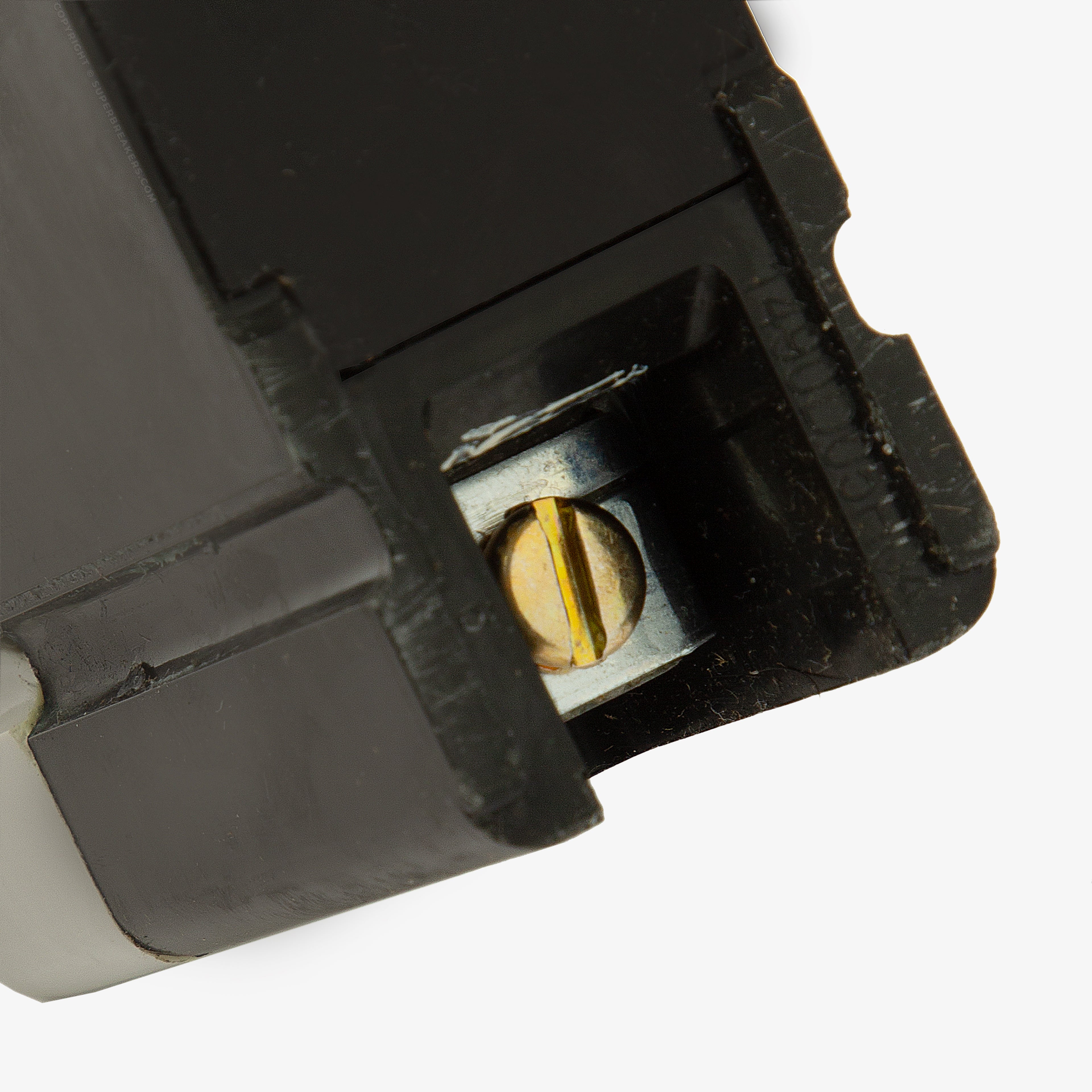

The L at the end of the part number signifies that the breaker comes factory-equipped with both line and load lugs. These standard lugs are designed to accept 14 to 1/0 AWG copper or aluminum wiring.
What is the difference between Eaton and Cutler-Hammer HFD1015L breakers?
Eaton acquired Cutler-Hammer and integrated their electrical distribution lines. An HFD1015L branded as Eaton is the exact same component as the older Cutler-Hammer version and serves as a direct, code-compliant replacement.
Can I use the HFD1015L to replace a standard FD1015L?
Yes. The HFD series is the high-interrupting version of the F-Frame family, offering 100kAIC at 240VAC compared to the standard FD series which offers 65kAIC. Upgrading to a breaker with a higher interrupting capacity is safe and acceptable as long as the physical dimensions and mounting style match.
How is the HFD1015L mounted inside an enclosure?

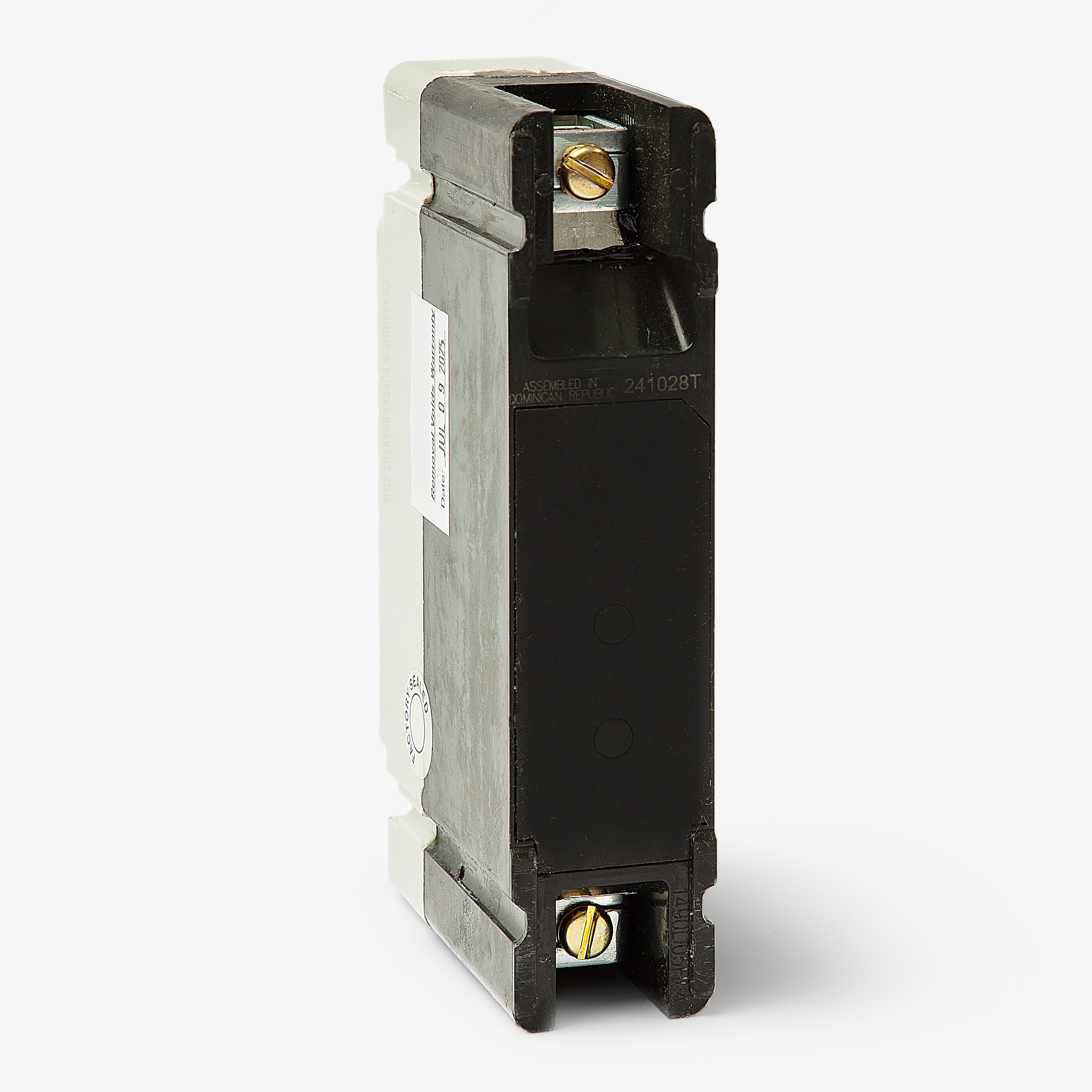

This is a unit mount, or feed-thru, circuit breaker. Unlike plug-on or bolt-on breakers that connect directly to a panelboard busbar, this unit is individually mounted to a backpan or bracket using screws, with wires landed on both the line and load terminals.
What enclosures and panelboards are compatible with this breaker?
This Series C F-Frame breaker is designed for installation in Eaton and Cutler-Hammer Pow-R-Line panelboards, switchboards, and motor control centers that are configured for unit mount components.
Is this breaker suitable for direct current (DC) applications?
Yes, this thermal magnetic breaker is rated for use in DC circuits up to 125VDC, where it provides a 10kA interrupting capacity.
