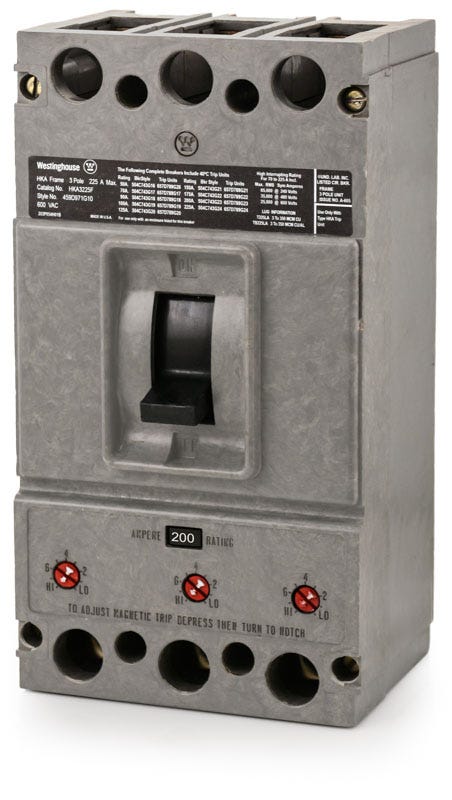

Eaton / Cutler-Hammer HKA3200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
HKA3200
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HKA3200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HKA3200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
225A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Operating at up to 600VAC, this 200A, 3-pole molded case circuit breaker delivers high-capacity thermal-magnetic protection. The Mark 75 series breaker is engineered for rigorous commercial and industrial electrical systems. The K-Frame unit mounts into legacy Westinghouse and modern Eaton Pow-R-Line C panelboards, switchboards, and motor control centers. It is an ideal replacement for aging infrastructure and crosses to the KD3200. This HACR-rated breaker provides 65kAIC at 240V.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HKA3200 |
| Series | HKA |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Panelboards, Eaton Pow-R-Line C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Mark 75, High Interrupting Capacity, Interchangeable Trip, HACR Rated |
Product FAQs
6 answersWhat equipment is compatible with the HKA3200 circuit breaker?
The HKA3200 is a bolt-on K-frame breaker designed for use in legacy Westinghouse panelboards, Eaton Pow-R-Line C panelboards, switchboards, and motor control centers.
Can an Eaton HKA3200 replace an older Westinghouse HKA3200?
Yes. Eaton acquired the Westinghouse distribution equipment line. A modern Eaton or Cutler-Hammer HKA3200 is a direct replacement for a legacy Westinghouse HKA3200 breaker.
What does the H in the HKA3200 catalog number signify?
The H indicates that this is a high-interrupting capacity version of the standard KA frame breaker. It provides elevated short-circuit interrupting ratings, such as 65kA at 240VAC, for systems with higher available fault currents.
How is the magnetic trip adjusted on the HKA3200?
The HKA3200 features a thermal-magnetic trip unit with a fixed thermal element and an adjustable magnetic element. The magnetic trip is adjusted using the dial on the front face of the breaker to set the instantaneous short-circuit pickup level.
What protection does the LI trip function provide on the HKA3200?
The LI designation indicates Long-Time and Instantaneous trip functions. The fixed Long-Time function protects the circuit against sustained overloads, while the adjustable Instantaneous function clears sudden short-circuit faults.
How does the HKA3200 mount into a panelboard?
The HKA3200 is a bolt-on circuit breaker. It secures directly to the panelboard bus using bolted connections, which provides a secure mechanical and electrical joint for high-amperage commercial and industrial applications.
