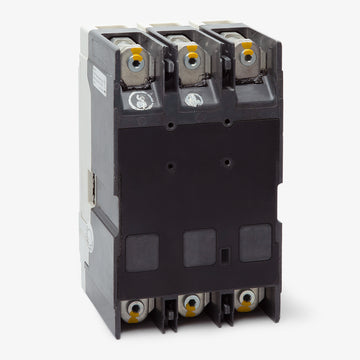

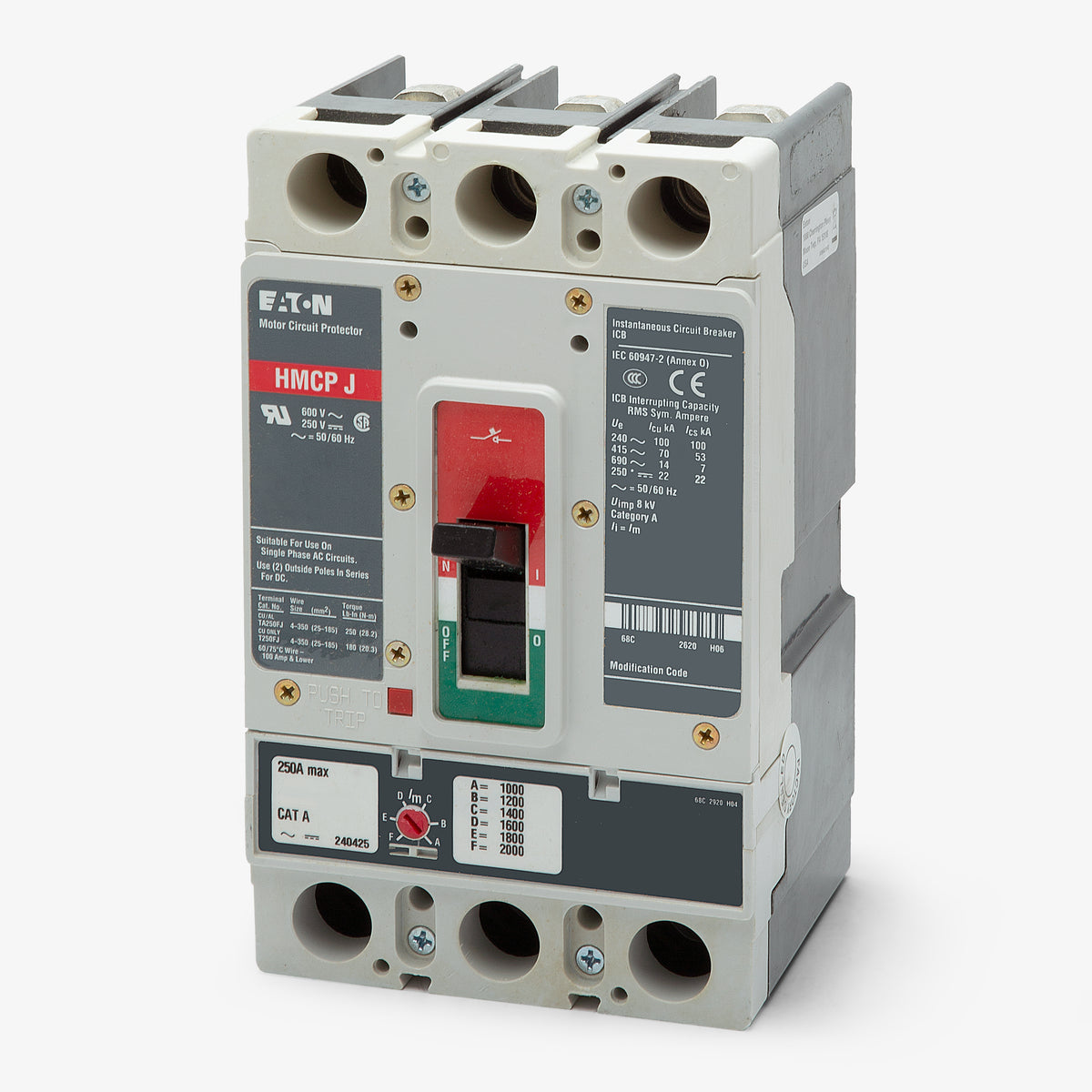

Eaton / Cutler-Hammer HMCPJ250L5L Motor Circuit Protector
- 250A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
HMCPJ250L5L
Motor Circuit Protector
Brand
Eaton / Cutler-Hammer
SKU
HMCPJ250L5L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HMCPJ250L5L - 250A 3 Pole Motor Circuit Protector
New
Quantity
Similar Items
Eaton / Cutler-HammerHMCP250C5C
250A 3 Pole Motor Circuit Protector
Eaton / Cutler-HammerHMCP250W5
250A 3 Pole Motor Circuit Protector
Eaton / Cutler-HammerHMCP250W5C
250A 3 Pole Motor Circuit Protector
Description
Providing dedicated short-circuit defense for industrial applications, this 250A Series C motor circuit protector coordinates with external overload relays. It mounts into Eaton motor control centers, enclosed control systems, and combination motor starters. The HMCPJ frame features an adjustable magnetic trip range of 1125 to 2250 amps, delivering precise instantaneous protection for specific motor horsepower ratings while maintaining a 65kA interrupting capacity at 240V.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HMCPJ250L5L |
| Series | HMCPJ |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Amperage Range | 1125-2250A |
|---|
| Frame Type | JD |
|---|---|

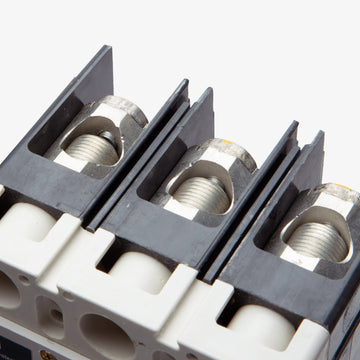

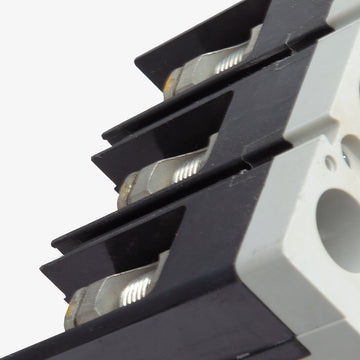

| Terminal Type | Lugs |
| For Use With | Eaton Motor Control Centers, Combination Motor Starters, Enclosed Control |
| Wire Gauge | 4 AWG - 350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Mechanism, Motor Operator |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, KEMA, UL, UR |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector |
