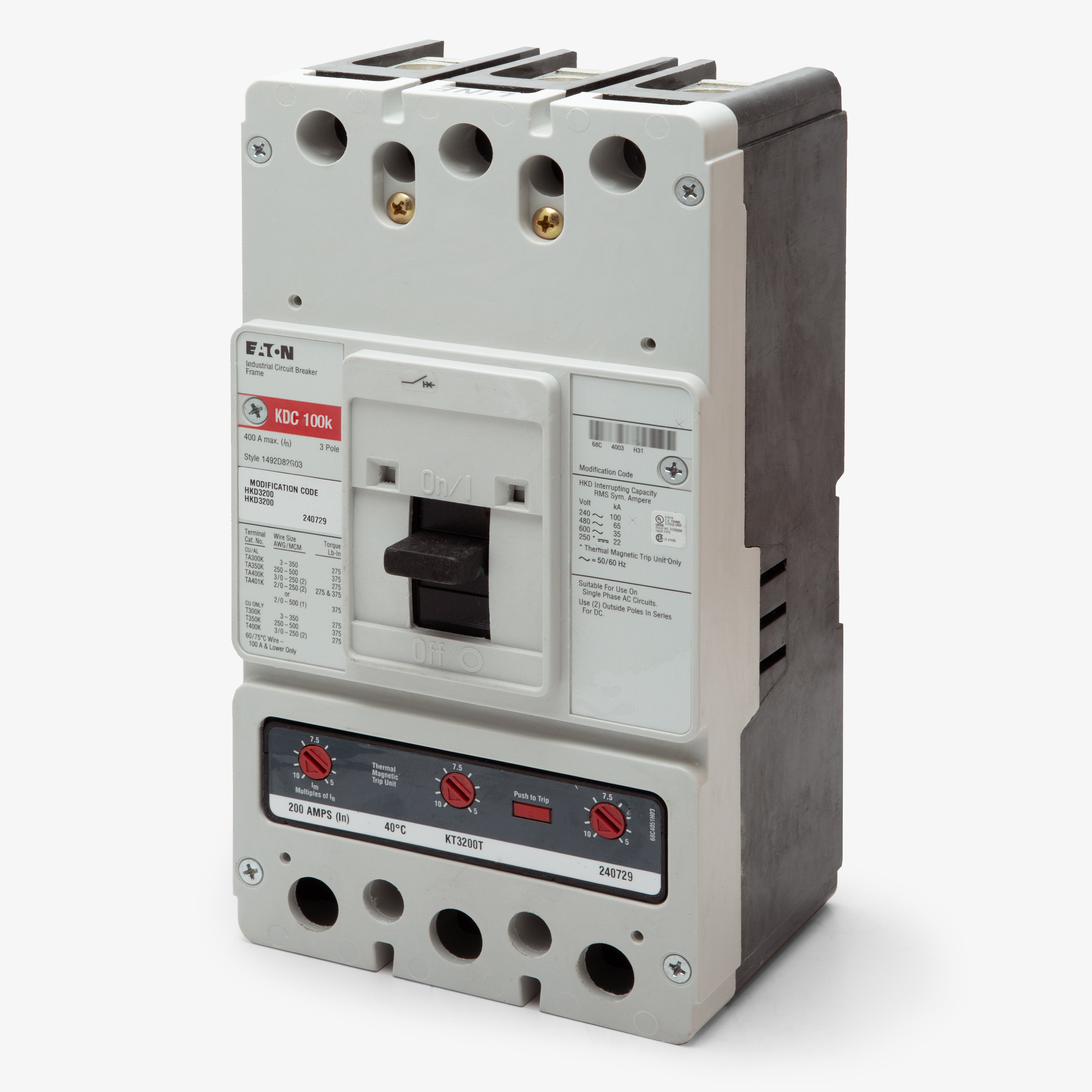

Eaton / Cutler-Hammer KDC3225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
KDC3225
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
KDC3225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer KDC3225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer KDC3225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | KDC3225 |
| Series | KDC |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | ABS, CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, High Interrupting Capacity, Interchangeable Trip Unit, Reverse Feed, Trip-Free Mechanism, Visual Trip Indicator |
Quantity
Eaton / Cutler-Hammer KDC3225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | KDC |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | ABS, CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, High Interrupting Capacity, Interchangeable Trip Unit, Reverse Feed, Trip-Free Mechanism, Visual Trip Indicator |
Similar Items
200A 3 Pole Molded Case Circuit Breaker
300A 3 Pole Molded Case Circuit Breaker
350A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial environments, the Eaton KDC3225 is a 3-pole, 225A Series C molded case circuit breaker. This K-Frame device provides reliable power distribution for heavy-duty applications. The breaker installs into Eaton Series C panelboards and motor control centers. It includes lugs accepting 3 AWG to 350 kcmil wire and supports reverse feed configurations. Featuring a 100 kAIC rating at 480VAC, it utilizes a thermal-magnetic trip unit with adjustable magnetic settings.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | KDC3225 |
| Series | KDC |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | ABS, CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, High Interrupting Capacity, Interchangeable Trip Unit, Reverse Feed, Trip-Free Mechanism, Visual Trip Indicator |
Product FAQs
6 answersWhat is the difference between the Eaton KD3225 and KDC3225 circuit breakers?
The primary difference is the interrupting capacity. The KD3225 is a standard-rated breaker at 35 kAIC at 480VAC, while the KDC3225 is an ultra-high interrupting capacity breaker rated at 100 kAIC at 480VAC. Both share the same physical K-frame dimensions and 225A rating.
What enclosures and equipment are compatible with the KDC3225 breaker?
This K-frame breaker is designed for installation in Eaton Series C panelboards, switchboards, and motor control centers.
Can I use the Eaton KDC3225 to replace an older Westinghouse K-frame breaker?
Yes, Eaton Series C breakers are direct replacements for legacy Westinghouse and Cutler-Hammer Series C breakers with matching frame sizes and specifications.
What does the LI trip function on the KDC3225 indicate?
The LI designation means the breaker is equipped with Long-Time and Instantaneous trip functions. The KDC3225 features a fixed thermal element for Long-Time overload protection and an adjustable magnetic element for Instantaneous short-circuit protection.
What type of conductors can be used with the standard lugs on the KDC3225?

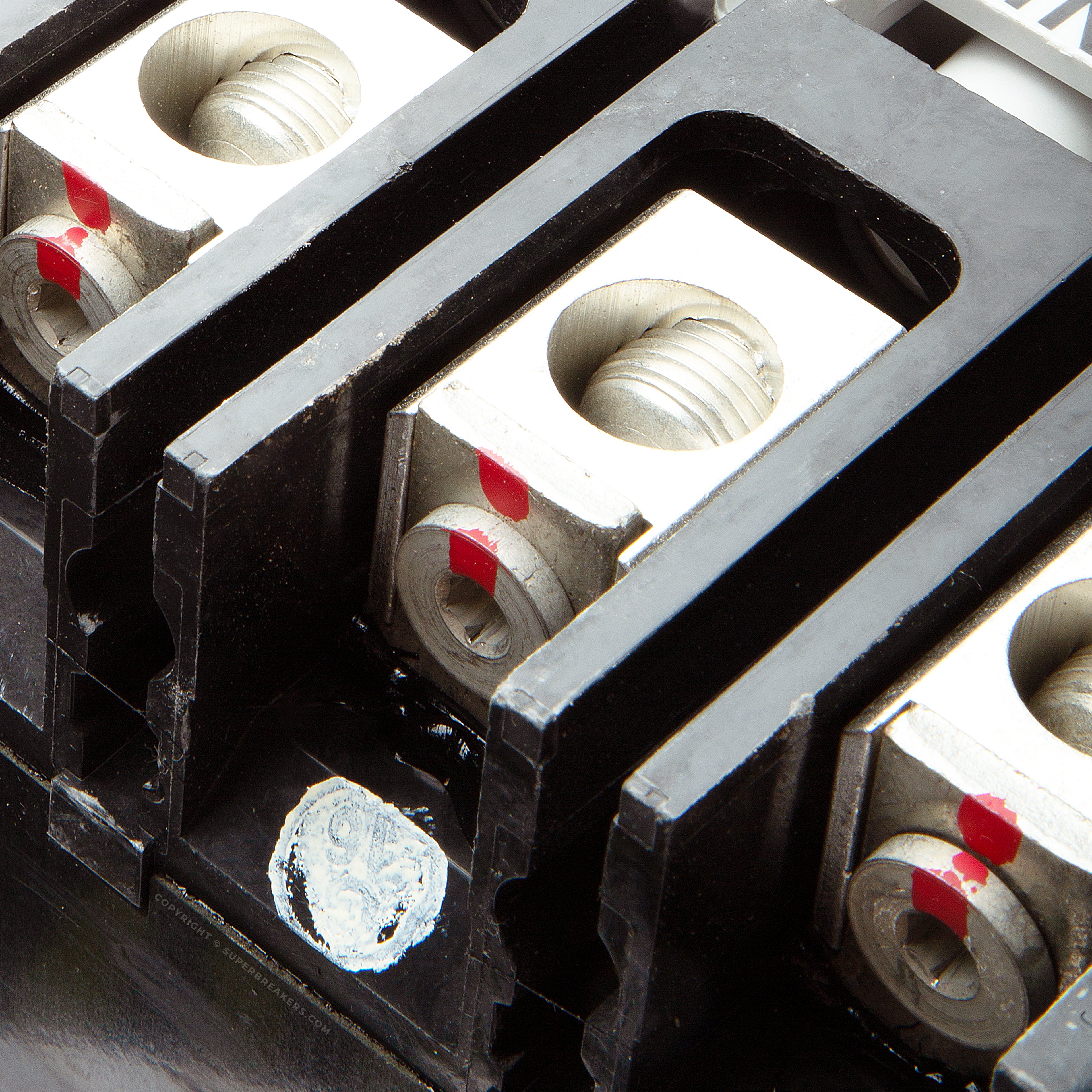

The standard lugs are dual-rated for both aluminum and copper (Al/Cu) conductors, accepting wire sizes from 3 AWG up to 350 kcmil.
Can the KDC3225 be applied in direct current (DC) systems?
Yes, this thermal-magnetic breaker is rated for 250VDC systems, providing a 22 kAIC interrupting rating for DC applications.
