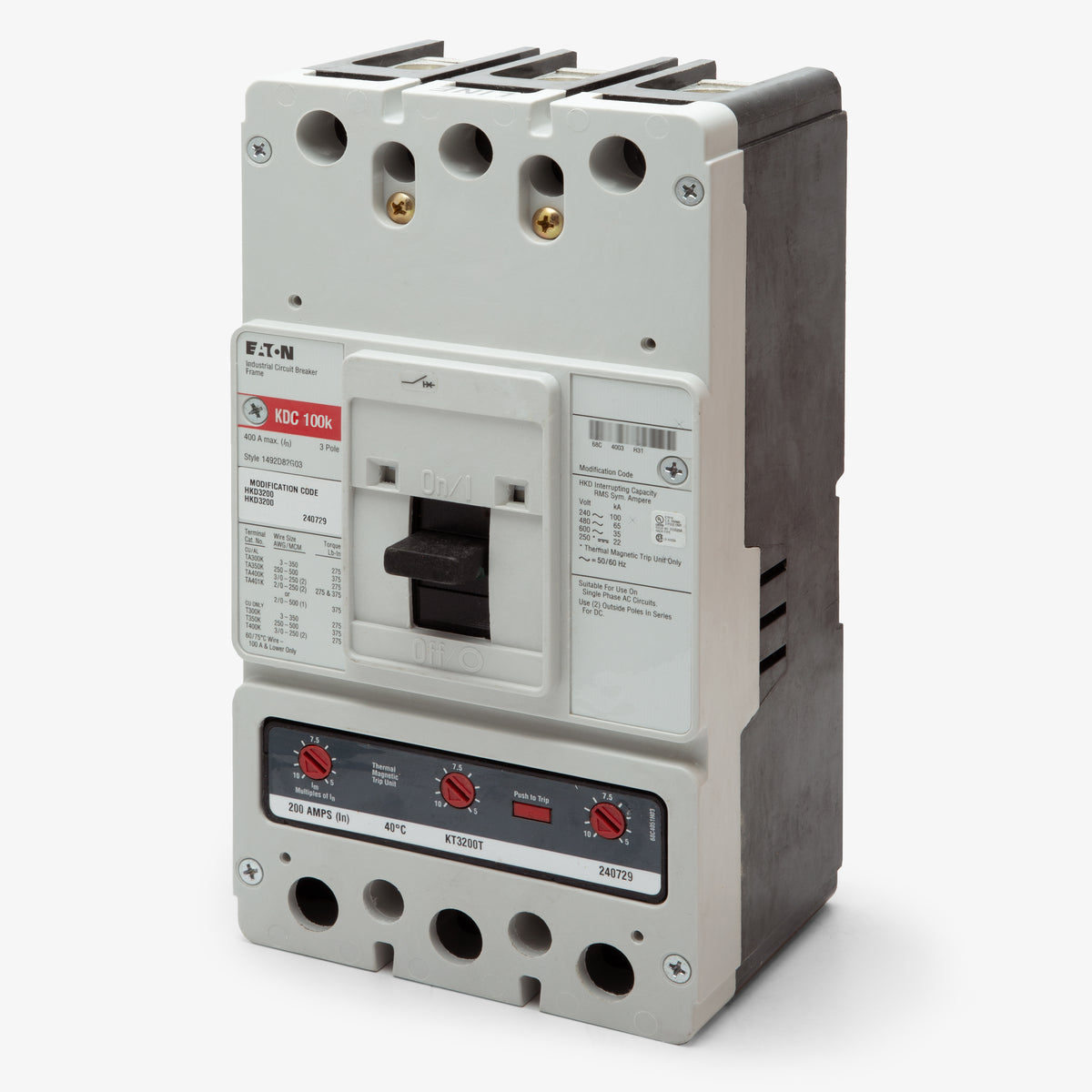

Eaton / Cutler-Hammer KDC3250 Molded Case Circuit Breaker
- 250A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
KDC3250
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
KDC3250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer KDC3250 - 250A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Eaton / Cutler-Hammer KDC3250 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | KDC3250 |
| Series | KDC |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | K |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 250 kcmil - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|

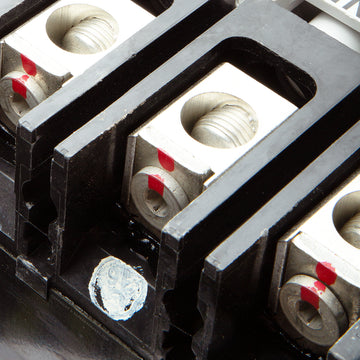

| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | ABS, CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, High Interrupting Capacity, Interchangeable Trip Unit, Reverse Feed, Trip-Free Mechanism, Visual Trip Indicator |
Quantity
Eaton / Cutler-Hammer KDC3250 - 250A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | KDC |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | K |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 250 kcmil - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | ABS, CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, High Interrupting Capacity, Interchangeable Trip Unit, Reverse Feed, Trip-Free Mechanism, Visual Trip Indicator |
Similar Items
300A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
350A 3 Pole Molded Case Circuit Breaker
Description
Providing robust protection for commercial facilities, the Eaton KDC3250 is a 250A, 3-pole molded case circuit breaker. As part of the Series C K-Frame family, it ensures dependable power distribution. This breaker integrates perfectly with Eaton Series C panelboards and motor control centers. It includes lugs that accept 250 to 500 kcmil wire, supporting substantial power needs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | KDC |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | K |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 250 kcmil - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | ABS, CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, High Interrupting Capacity, Interchangeable Trip Unit, Reverse Feed, Trip-Free Mechanism, Visual Trip Indicator |
Product FAQs
5 answersWhat is the difference between Eaton KD, HKD, and KDC circuit breakers?
The primary difference is their short-circuit interrupting rating. While they share the exact same physical K-frame dimensions, at 240VAC the KD is rated for 65kAIC, the HKD for 100kAIC, and the KDC for 200kAIC.
Can I use the KDC3250 to upgrade a KD3250 or HKD3250 breaker?
Yes. Because the KDC3250 shares the same physical footprint and mounting configuration as the KD3250 and HKD3250, it serves as a direct drop-in replacement for systems requiring higher fault current protection.
Is the KDC3250 suitable for reverse feed applications?
Yes, this breaker is rated for reverse feed installations. This allows electricians to supply power to either the top or bottom terminals, providing flexibility for specific enclosure layouts.
How does the adjustable magnetic trip on the KDC3250 work?
The breaker features a fixed thermal element for standard overload protection and an adjustable magnetic element for short circuits. The adjustable magnetic trip allows you to tune the instantaneous response threshold, which helps prevent nuisance tripping from high inrush currents like motor startups.
Does the KDC3250 provide ground fault protection?
No, the KDC3250 is equipped with an LI (Long-Time, Instantaneous) thermal-magnetic trip unit. This provides standard overload and short-circuit protection but does not include built-in equipment ground fault protection.
