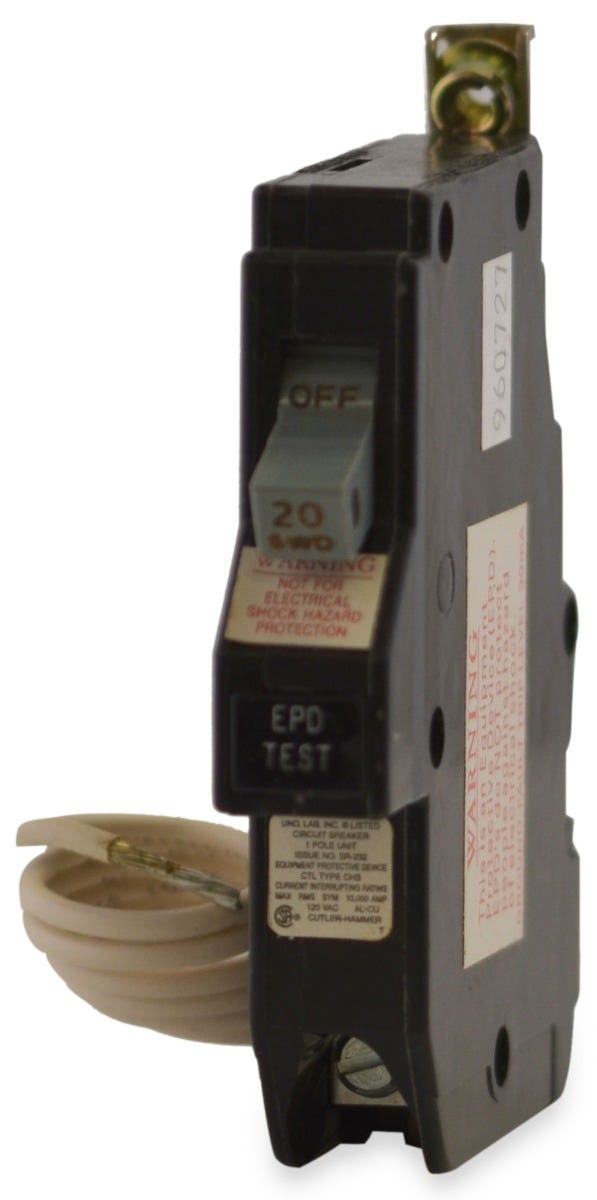

Eaton / Cutler-Hammer CHB120EPD GFEP Miniature Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Quantity
Eaton / Cutler-Hammer CHB120EPD - 20A GFEP Miniature Circuit Breaker
New
Quantity
Description
Designed for commercial and industrial applications, this 20A single-pole GFEP device detects 30mA ground faults to prevent damage to heat tracing and machinery. It is both HID and SWD rated, making it suitable for switching fluorescent lighting loads. The bolt-on configuration installs securely into Eaton Type PB and PH panelboards, as well as compatible meter panels. Operating at 120/240VAC with a 10kAIC rating, it provides reliable thermal-magnetic protection under UL 1053 standards.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB120EPD |
| Series | CHB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CHB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489, UL 1053 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
Product FAQs
5 answersWhat is the difference between this EPD breaker and a standard GFCI?
The CHB120EPD is an Equipment Protection Device (EPD) that trips at a 30mA ground fault threshold to protect machinery and heat tracing. Standard GFCI breakers trip at a 5mA threshold for personnel protection.
Which panelboards accept the CHB120EPD?
This bolt-on breaker is designed specifically for Eaton and Cutler-Hammer Type PB and PH panelboards, as well as compatible meter panels.
How is the neutral connected on this breaker?
It features a pigtail neutral wire that must be connected directly to the panelboard neutral bar to power the internal ground fault circuitry.
How much panel space does this breaker require?
As a 1-pole CHB frame breaker, it requires a single 3/4-inch space in the panelboard.
Can I use this to replace a standard CHB120 breaker?
Yes, it will fit in the same 3/4-inch space and bolt onto the same bus as a standard CHB120, but it provides added 30mA equipment ground fault protection and requires a dedicated neutral connection.
