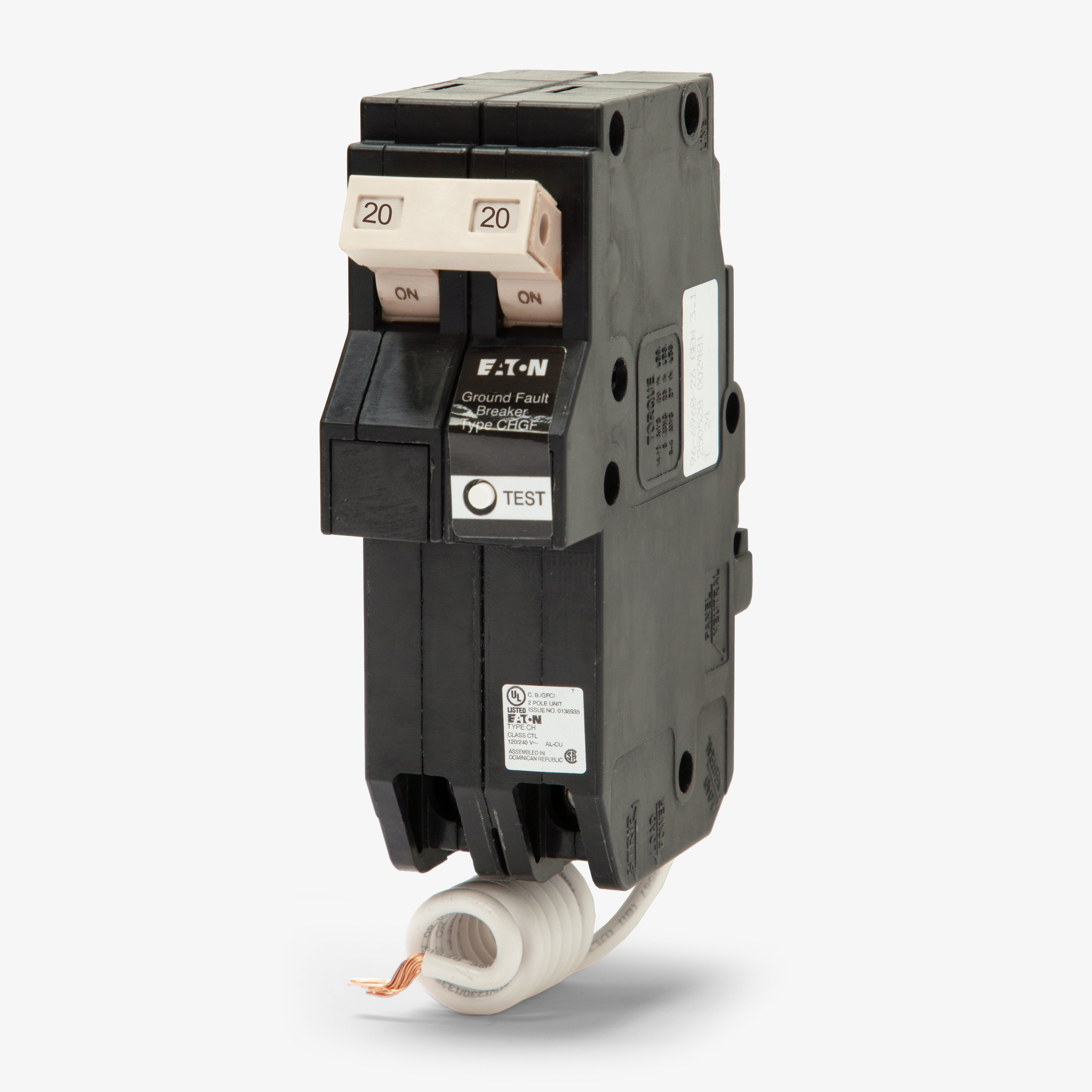

Eaton / Cutler-Hammer CHB220GF GFCI Miniature Circuit Breaker
- 20A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHB220GF
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHB220GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHB220GF - 20A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
40A GFCI Miniature Circuit Breaker
50A GFCI Miniature Circuit Breaker
60A GFCI Miniature Circuit Breaker
Description
Built for commercial use, the Eaton CHB220GF is a 2-pole, 20A miniature circuit breaker featuring 5mA ground fault personnel protection. This bolt-on GFCI breaker installs into Cutler-Hammer Type PB and PH panelboards or compatible meter panels. It accepts 14-8 AWG wire via box lugs. Rated at 10kAIC for 120/240VAC, the unit includes a built-in self-test function to ensure code-compliant safety in wet or damp locations.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB220GF |
| Series | CHB |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CHB |
|---|---|

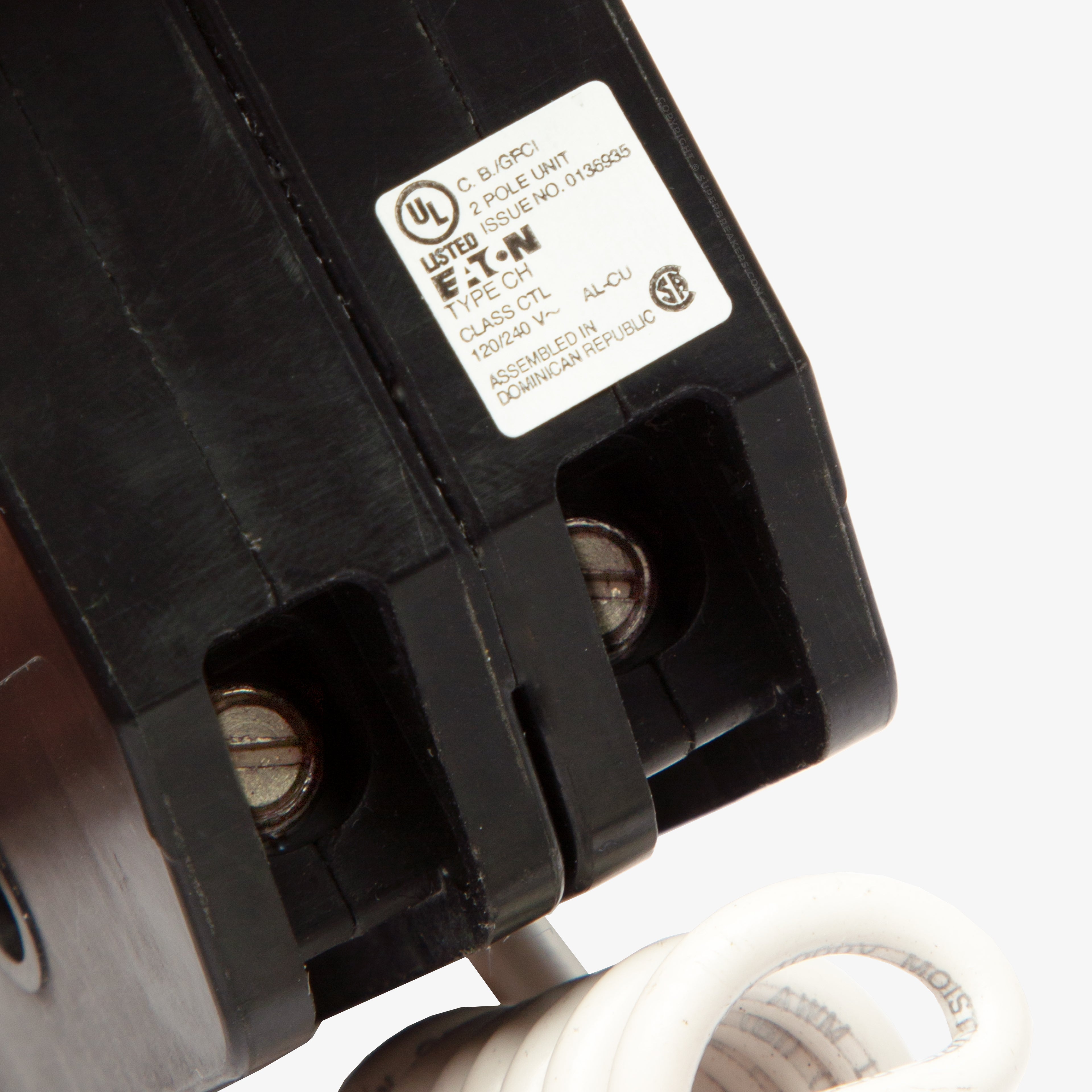

| Terminal Type | Box Lugs |
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels, Multi-Metering Modules |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | 5mA Ground Fault Personnel Protection, Common Trip, Self-Test |
Product FAQs
5 answersWhat panelboards are compatible with the CHB220GF circuit breaker?
This bolt-on breaker is designed for use in Eaton and Cutler-Hammer Type PB and PH panelboards, as well as compatible meter panels and multi-metering modules.
What level of ground fault protection does the CHB220GF provide?
It provides Class A ground fault personnel protection, which trips when a ground fault current of 5mA is detected.
How is the neutral connection wired on this GFCI breaker?

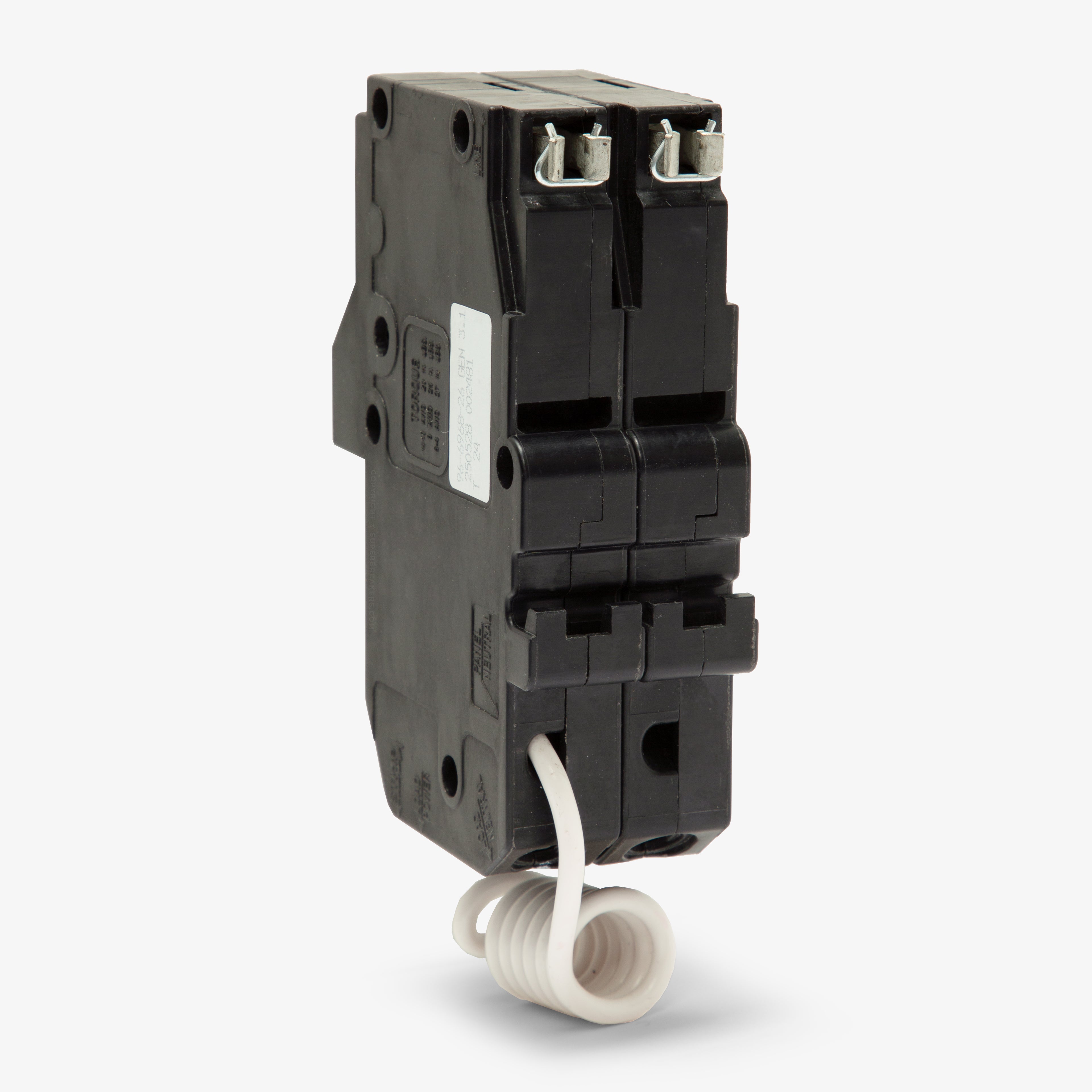

The CHB220GF features a pigtail neutral wire that must be connected directly to the panel neutral bar to ensure proper ground fault monitoring.
Can I use a CH220GF in place of the CHB220GF?
No. While both are Eaton 20A GFCI breakers, the CH series features a plug-on mounting design, whereas the CHB series uses a bolt-on connection required for PB and PH panelboards.
Does the CHB220GF provide standard overload protection in addition to ground fault detection?
Yes. It is a thermal magnetic circuit breaker that includes long-time and instantaneous trip functions for standard overcurrent and short-circuit protection, alongside the ground fault circuitry.
