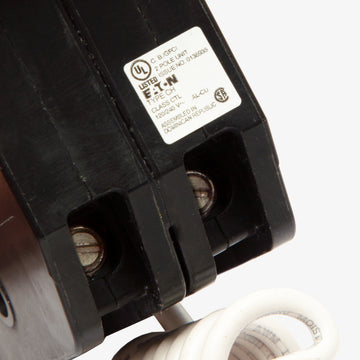

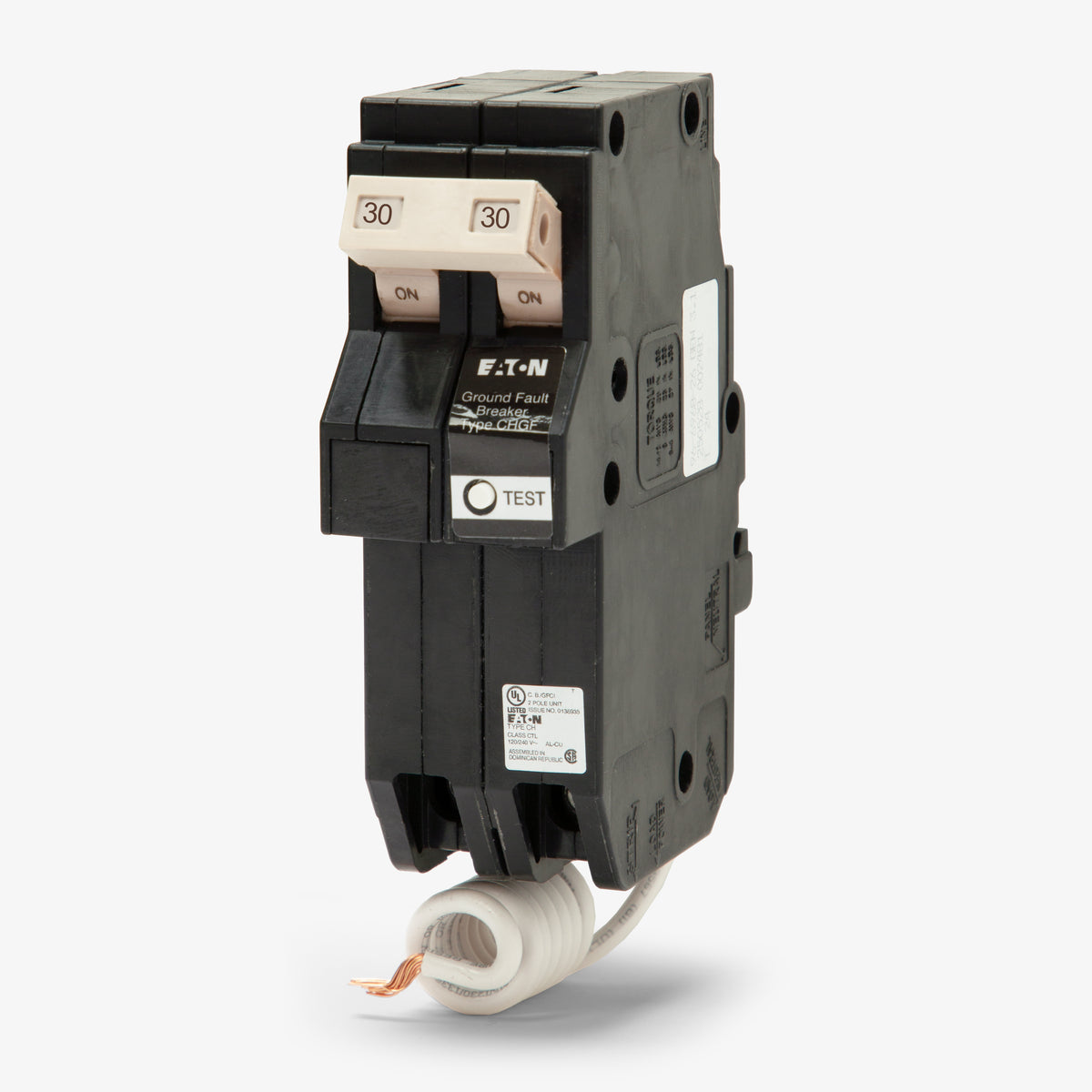

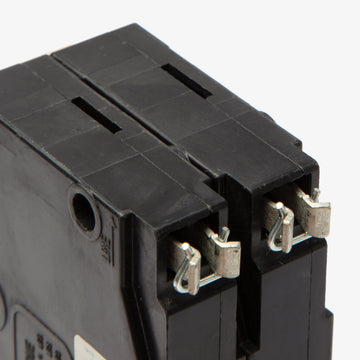

Eaton / Cutler-Hammer CHB230GF GFCI Miniature Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHB230GF
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHB230GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHB230GF - 30A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
20A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
50A GFCI Miniature Circuit Breaker
Description
Designed to prevent electrical shock, the Eaton CHB230GF provides 30A of thermal-magnetic protection alongside 5mA ground fault personnel safety. The 2-pole bolt-on breaker fits into Cutler-Hammer Type PB and PH panelboards, as well as multi-metering modules. Terminals accept 14-8 AWG wiring. With a 10kAIC rating at 120/240VAC, this HACR-rated unit features a common trip mechanism and self-test capabilities for reliable operation.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB230GF |
| Series | CHB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CHB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels, Multi-Metering Modules |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | 5mA Ground Fault Personnel Protection, Common Trip, Self-Test |
Product FAQs
4 answersWhat panelboards are compatible with the CHB230GF?
This bolt-on breaker is designed exclusively for Eaton and Cutler-Hammer Type PB and PH panelboards, as well as compatible meter panels and multi-metering modules. It will not fit standard plug-on CH or BR load centers.
What level of ground fault protection does the CHB230GF provide?
It provides 5mA Class A ground fault protection. This sensitivity level is designed to safeguard personnel from electrical shock in damp or wet environments.
How is the neutral connected on the CHB230GF?
This breaker features a pigtail neutral wire that must be connected directly to the panel neutral bar to power the internal ground fault circuitry. The load neutral wire connects directly to the designated terminal on the breaker itself.
Can I use the CHB230GF to replace a standard CH230GF breaker?
No. The CHB230GF features a bolt-on connection for commercial panels, whereas the CH230GF is a plug-on breaker designed for standard residential CH load centers. They are not interchangeable.
