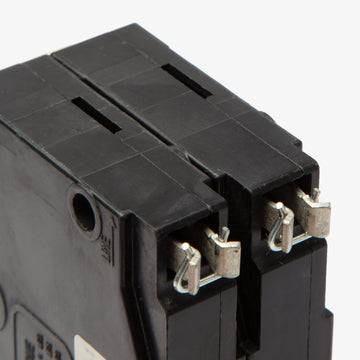

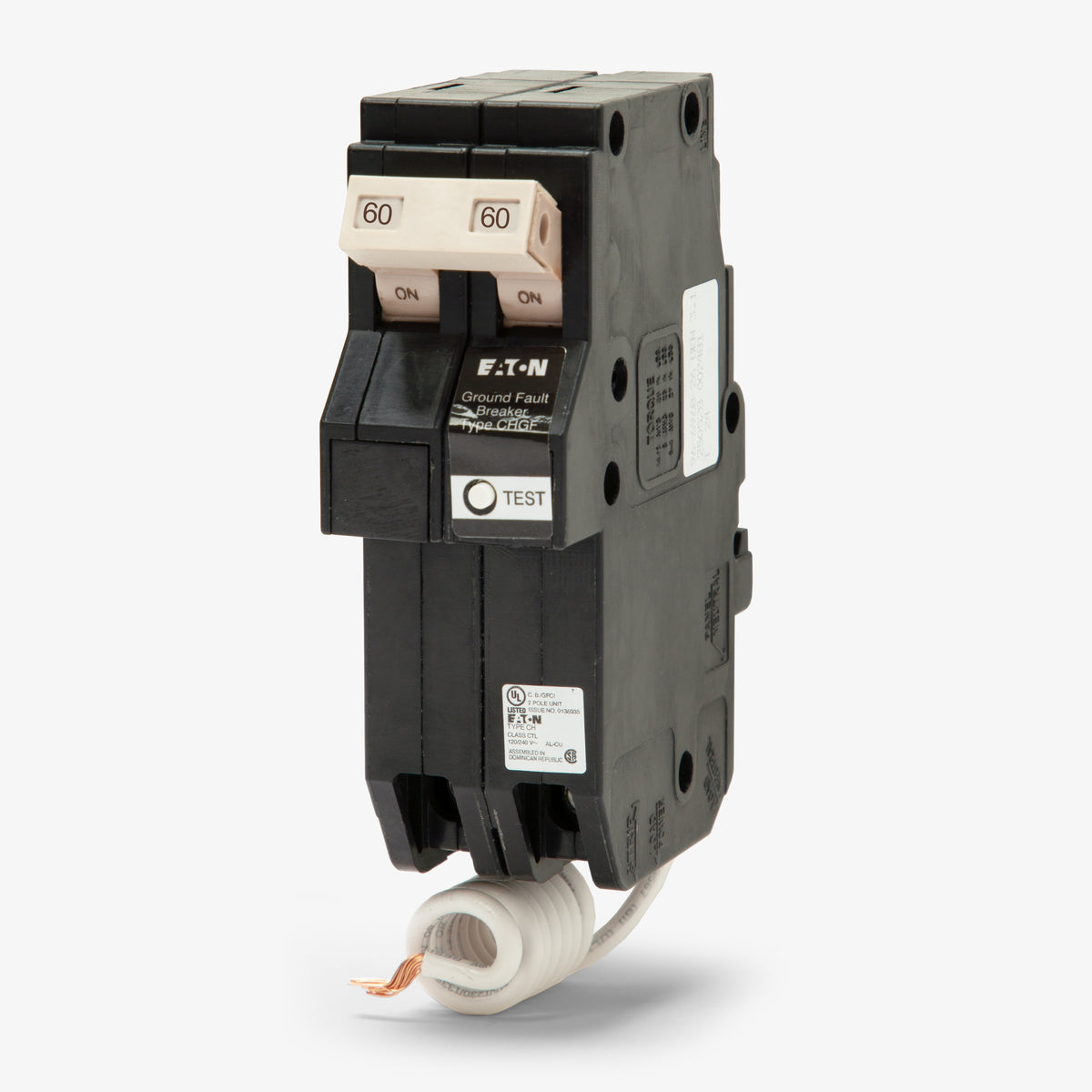

Eaton / Cutler-Hammer CHB260GF GFCI Miniature Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHB260GF
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHB260GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHB260GF - 60A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
40A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
Description
Rated 10 kAIC at 120/240V, this 60-amp GFCI breaker combines thermal-magnetic overcurrent defense with 5mA personnel ground fault protection. The two-pole unit features integrated self-test capabilities to verify proper safety functionality, alongside a common trip mechanism and HACR rating for HVAC applications. It mounts into Cutler-Hammer Type PB and PH panelboards via a robust bolt-on connection. Accommodating 8-2 AWG wire, it helps facilities comply with NEC wet-location codes.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB260GF |
| Series | CHB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CHB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Cutler-Hammer Type PB Panelboards, Type PH Panelboards |
| Wire Gauge | 8-2 AWG (Cu/Al) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | 5mA Ground Fault Personnel Protection, Common Trip, HACR Rated, Self-Test |
Product FAQs
6 answersWhich panelboards are compatible with the CHB260GF circuit breaker?
This bolt-on breaker is designed exclusively for use in Cutler-Hammer Type PB and Type PH panelboards.
What level of ground fault protection does the CHB260GF provide?
It provides 5mA personnel ground fault protection, designed to protect users from electrical shock in wet locations such as spas, pools, and HVAC applications. It also features an integrated self-test capability to verify proper safety functionality.
How is the neutral connection configured on this GFCI breaker?
The CHB260GF utilizes a traditional pigtail neutral wire that must be connected directly to the panelboard neutral bus to ensure proper ground fault sensing.

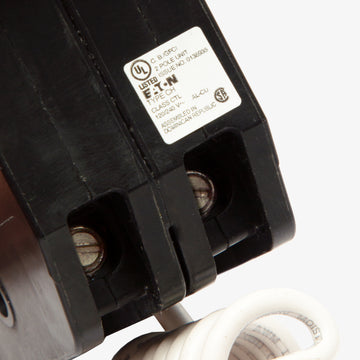

What wire sizes and materials are accepted by the box lugs on this breaker?
The terminals accommodate 8 AWG to 2 AWG wire and are rated for both copper (Cu) and aluminum (Al) conductors.
Is there a difference between the Eaton CHB260GF and the Cutler-Hammer CHB260GF?
No, they are the exact same component. Eaton acquired Cutler-Hammer, so CHB series breakers are frequently labeled under either brand name interchangeably.
Does this breaker include standard overcurrent protection alongside ground fault sensing?
Yes, it combines standard thermal-magnetic overcurrent and short-circuit protection, utilizing Long-Time and Instantaneous trip functions, with ground fault sensing in a single unit.
