Eaton / Cutler-Hammer EC3040 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
EC3040
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EC3040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EC3040 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items

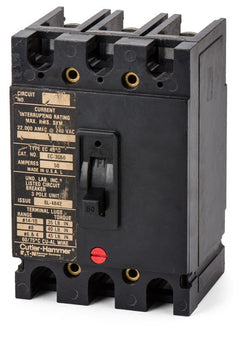

60A 3 Pole Molded Case Circuit Breaker

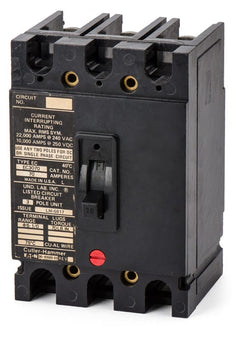

70A 3 Pole Molded Case Circuit Breaker

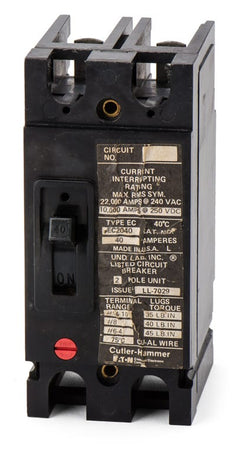

40A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial use, the Eaton EC3040 is a 3-pole, 40A molded case circuit breaker. It features fixed thermal-magnetic trip units for consistent overcurrent protection. This bolt-on unit is designed to install into Cutler-Hammer Type EC panelboards. For modern upgrades, this legacy frame is officially replaced by the EHD3040 model. Rated for 10kA at 240VAC, it provides robust fault clearing. The breaker is also HACR rated for heating and cooling applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | EC |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | EC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Cutler-Hammer Type EC Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB 1, UL 489 |
| Approval | UL |
| Temp Rating | 40°C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the EC3040 circuit breaker?
The EC3040 is designed specifically for use in legacy Cutler-Hammer Type EC panelboards. It features a bolt-on connection to securely mount into these older commercial distribution systems.
Is there a modern replacement for the legacy EC3040 breaker?
Yes. For facilities upgrading their hardware or seeking a current equivalent, the Eaton EHD3040 is the recommended modern cross-reference. It serves as a direct substitute for the older Westinghouse E-Frame profile.
Will the EC3040 replace older Westinghouse E-Frame breakers?
Yes. The EC3040 belongs to the classic Westinghouse E-Frame family and shares the same physical footprint, making it a suitable drop-in replacement for aging E-Frame breakers in compatible panelboards.
What wire sizes are accepted by the lugs on the EC3040?
The standard lugs on this breaker accept wire gauges ranging from 14 AWG up to 1/0 AWG. The terminals are rated for use with both copper and aluminum conductors.
Can the trip settings on the EC3040 be adjusted in the field?
No. This breaker is built with fixed thermal and fixed magnetic trip units. The long-time and instantaneous trip functions are factory-set and cannot be modified by the user.
Can the EC3040 be used in 480V applications?
No. The EC3040 is strictly rated for a maximum of 240VAC with a 10kAIC interrupting capacity. For 480V applications, a different breaker series such as the EHD frame must be selected.
