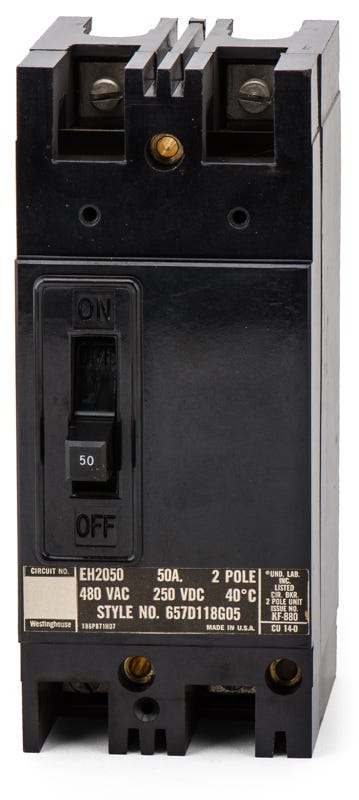

Eaton / Cutler-Hammer EH2050 Molded Case Circuit Breaker
- 50A
- 2 Pole
- Bolt-On
Quantity
Eaton / Cutler-Hammer EH2050 - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description
Engineered for commercial and industrial applications, the Eaton EH2050 provides reliable overcurrent protection. This 2-pole, 50A molded case circuit breaker utilizes thermal-magnetic trip technology to safeguard critical electrical systems. Designed for bolt-on installation, it mounts into Eaton Pow-R-Line panelboards, switchboards, and motor control centers. For modern upgrades, this unit is replaced by the EHD2050 model. Rated for 18kAIC at 240VAC, it is HACR rated for HVAC equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EH2050 |
| Series | EH |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhich panelboards accept the EH2050 circuit breaker?
This bolt-on breaker is specifically designed to mount into Eaton Pow-R-Line panelboards, switchboards, and motor control centers. It is not interchangeable with standard residential plug-on load centers.
Are Eaton, Cutler-Hammer, and Westinghouse EH2050 breakers interchangeable?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse electrical distribution lines. The EH2050 catalog number is identical across these brands and functions as a direct replacement for legacy E-frame installations.
What is the modern upgrade for the legacy EH2050 breaker?
If you are upgrading your system, the legacy EH2050 is commonly replaced by the EHD2050 model. The EHD2050 provides equivalent 50A, 2-pole protection in a newer frame style.
Is the EH2050 rated for use with HVAC systems?
Yes, this breaker carries an HACR rating, meaning it is tested and approved to handle the specific inrush currents associated with heating, air conditioning, and refrigeration equipment.
What wire gauge is required for the EH2050 terminals?
The factory-installed lugs accept wire sizes from 14 AWG up to 1/0 AWG. Installers must verify that the selected wire size matches the 50A circuit requirements and is torqued to Eaton specifications.
Does the EH2050 support direct current (DC) circuits?
Yes, in addition to its AC ratings, the EH2050 is certified for DC applications. It provides a 10kAIC interrupting rating at 250VDC, making it suitable for industrial control or battery systems.
