Eaton / Cutler-Hammer CV3150X Molded Case Circuit Breaker
- 150A
- 3 Pole
- Bolt-On
Quantity

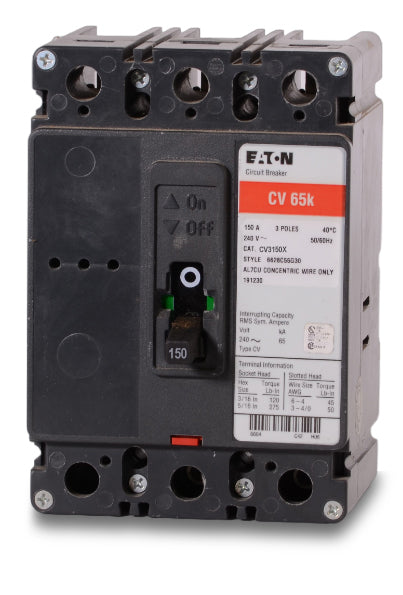

Eaton / Cutler-Hammer CV3150X - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Engineered for commercial applications, the CV3150X delivers 150A of thermal-magnetic trip protection in a 3-pole configuration. It functions specifically as a tenant main breaker with load terminals only (X suffix) for use in Eaton group metering stacks, including 1MM, 3MM, and 1MP modular units. Rated at 65kAIC at 240VAC, this bolt-on MCCB provides reliable long-time and instantaneous (LI) protection. It also serves as an exact replacement for legacy CHH3150 breakers.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CV3150X |
| Series | CV |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Group Metering Stacks, Modular Metering (1MM, 3MM, 1MP) |
| Wire Gauge | 6 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main |
Product FAQs
4 answersWhat equipment is the CV3150X designed to be installed in?
This breaker is specifically designed for use as a tenant main breaker in Eaton and Cutler-Hammer group metering stacks, including 1MM, 3MM, and 1MP modular metering units.
What does the "X" suffix in the CV3150X catalog number indicate?
The "X" suffix indicates that the breaker is configured with load-side lugs only. The line side is designed to bolt directly onto the busbar within compatible Eaton metering stacks.
Can I install the CV3150X in a standard residential load center?
No. This is a specialized bolt-on tenant main breaker designed exclusively for group metering stacks. It lacks line-side lugs and will not mount or wire correctly in standard plug-on or bolt-on panelboards.
Is this a direct replacement for legacy Cutler-Hammer CHH breakers?
Yes, the CV3150X serves as an exact drop-in replacement for the legacy Cutler-Hammer CHH3150 tenant main breaker used in older group metering applications.
