Eaton / Cutler-Hammer EGE2015FFG Molded Case Circuit Breaker
- 15A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
EGE2015FFG
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EGE2015FFG
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

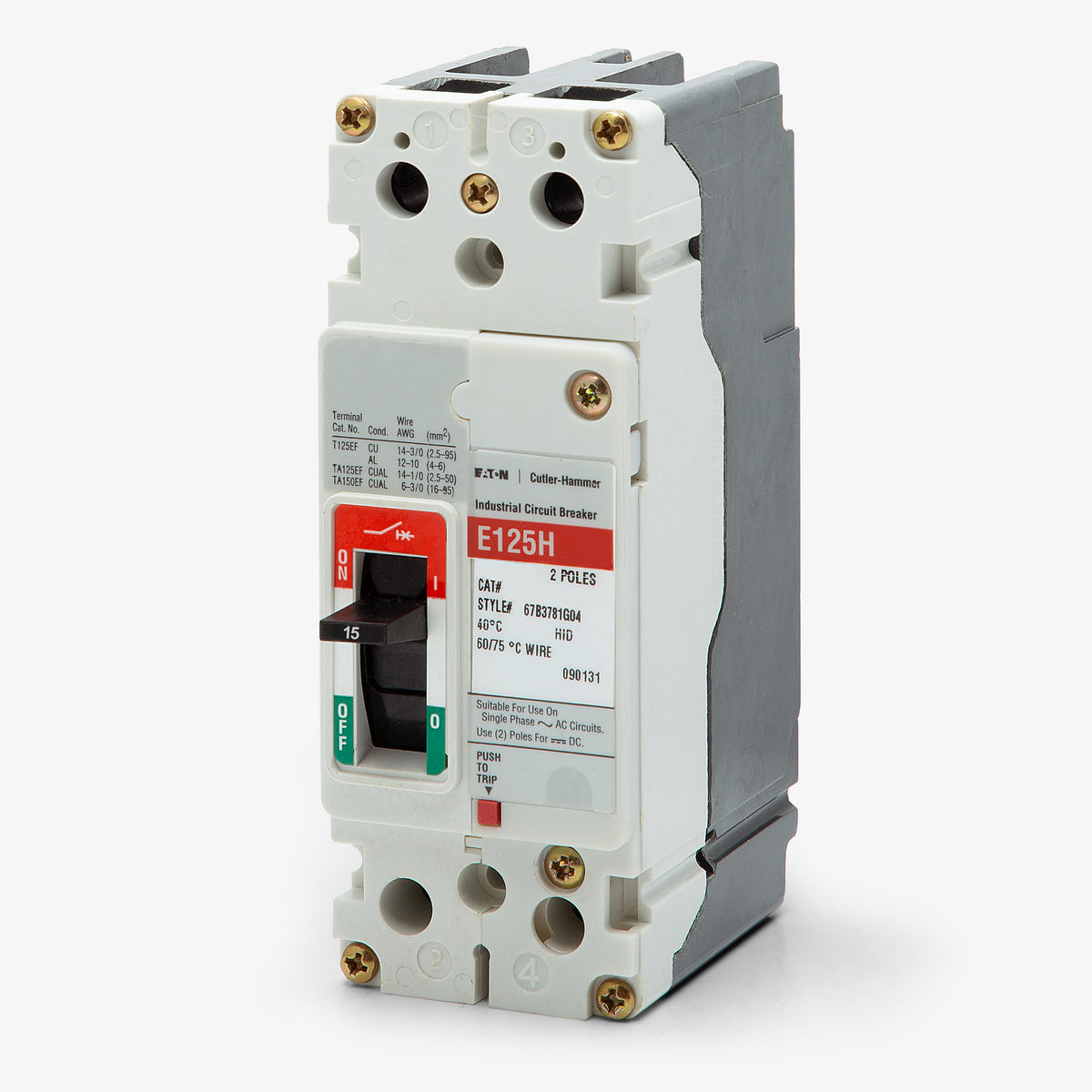

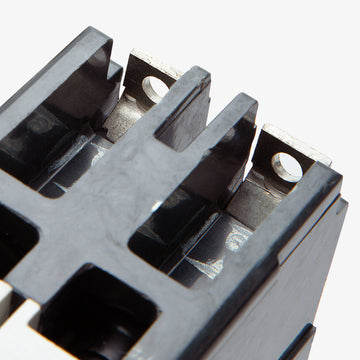

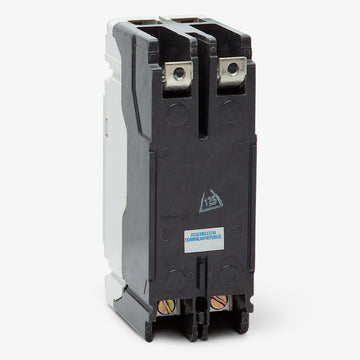

Eaton / Cutler-Hammer EGE2015FFG - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerEGH2015FFG
15A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGE2020FFG
20A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGE2030FFG
30A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Eaton EGE2015FFG is a 2-pole, 15A molded case circuit breaker from the Series G family. This unit mount breaker installs into Eaton Pow-R-Line 1a and 2a panelboards, switchboards, and motor control centers. It also cross-references with the Power Defense PDG22F0015TFFJ. Rated at 35kAIC at 240VAC, the EG frame features high-speed blow-open action and current-limiting capabilities. It is HACR and HID rated for specialized loads.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | EGE |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line 1a Panelboards, Eaton Pow-R-Line 2a Panelboards, Series G Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, HID Rated, Reverse Feed |
Product FAQs
6 answersWhich panelboards are compatible with the EGE2015FFG?
This EG-frame breaker installs in Eaton Pow-R-Line 1a and 2a panelboards, as well as Series G enclosures, switchboards, and motor control centers.

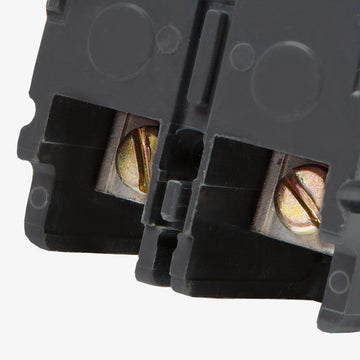

What wire sizes do the standard lugs on the EGE2015FFG accept?
The included lugs accommodate wire gauges ranging from 14 AWG to 1/0 AWG.
Can the EGE2015FFG be reverse fed?
Yes, Eaton Series G EG-frame circuit breakers are suitable for reverse feed installations.
Can I use the EGE2015FFG in direct current (DC) systems?
Yes, this thermal-magnetic breaker is rated for DC applications up to 250VDC, delivering a 10kAIC interrupting rating.
What does the FFG suffix mean in the EGE2015FFG catalog number?
The FFG suffix designates that the breaker features fixed thermal and fixed magnetic trip elements, and it comes factory-equipped with standard line and load terminals.
How do I reset the breaker after a trip?
When the breaker trips, the handle moves to a center position. To reset it, push the toggle handle fully past the OFF position to RESET, then move it back to ON.
