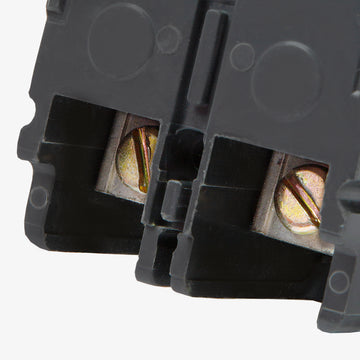

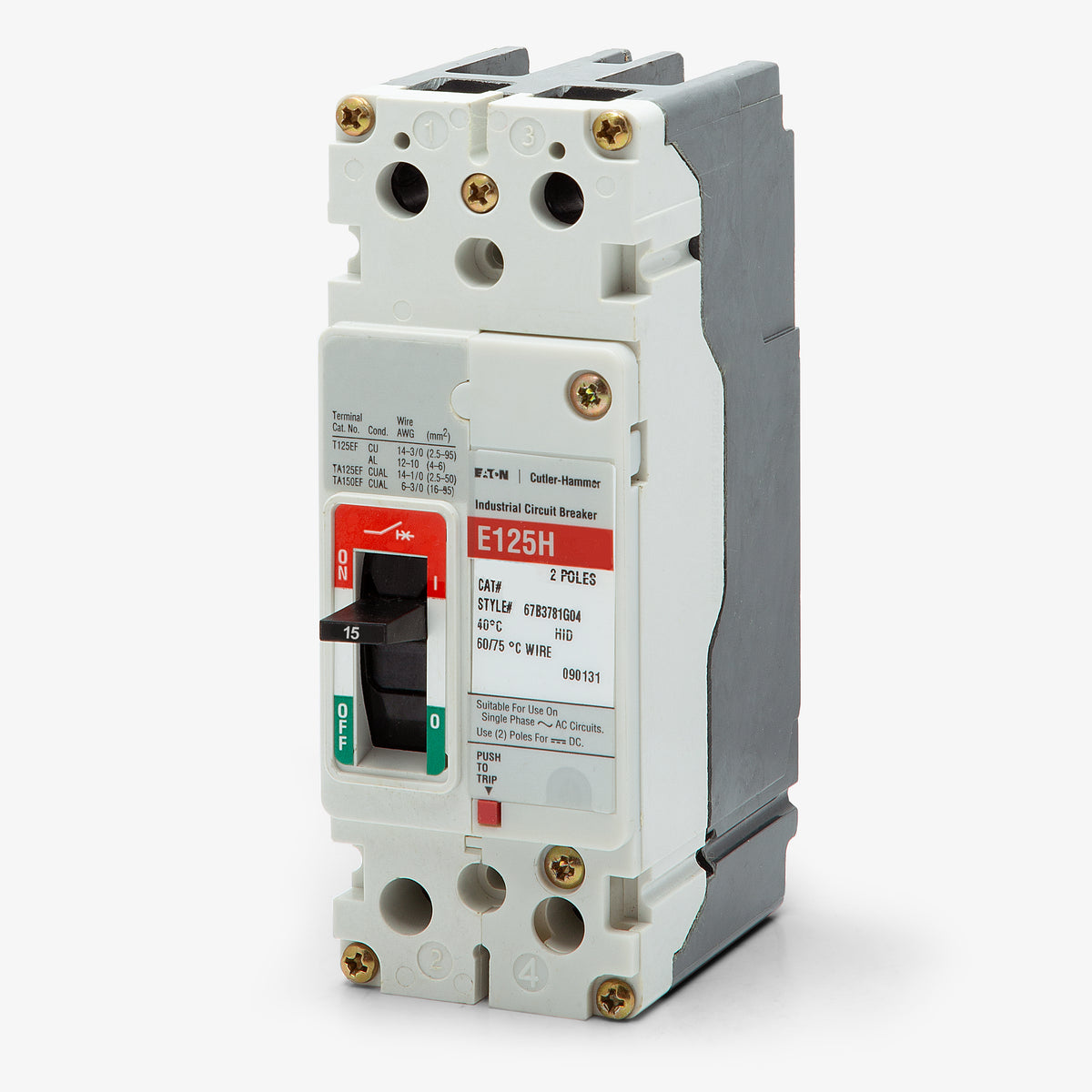

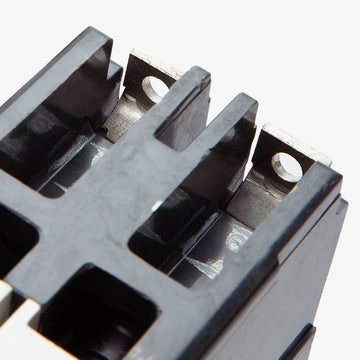

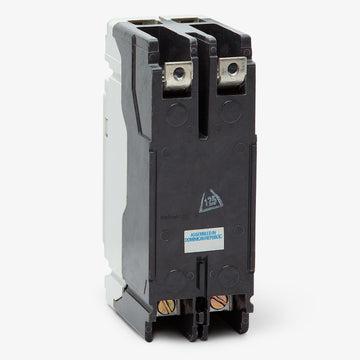

Eaton / Cutler-Hammer EGS2015FFG Molded Case Circuit Breaker
- 15A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
EGS2015FFG
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EGS2015FFG
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EGS2015FFG - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerEGS2030FFG
30A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGS2040FFG
40A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGS2050FFG
50A 2 Pole Molded Case Circuit Breaker
Description
Designed for versatile industrial integration, the EGS2015FFG is a 2-pole, 15A unit-mount molded case circuit breaker. It provides reliable thermal-magnetic protection with a 35kAIC interrupting capacity at 480V and 85kAIC at 240V. Unlike bolt-on variants, this EG-frame breaker features line and load terminals for standalone mounting. It installs easily into Eaton Series G enclosures, motor control centers, and switchboards, making it an excellent choice for heavy-duty machinery and marine use.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | EGS |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC, 35kA @ 125/250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series G Enclosures, Motor Control Centers, Switchboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Multi-Wire Lug Kit |
|---|---|
| Accessories | Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting |
Product FAQs
6 answersWhat types of enclosures and panels is the EGS2015FFG compatible with?
This EG frame breaker is designed for use in Eaton Series G enclosures, motor control centers, switchboards, and various OEM electrical assemblies.
How is the EGS2015FFG breaker mounted?
It features a unit mount, feed-thru design. This means it bolts directly to the panel backplate or enclosure rather than plugging onto a busbar.
What wire sizes do the standard terminals on this breaker accept?
The included line and load lugs accept wire ranging from 14 AWG to 1/0 AWG.
What does the FFG suffix mean in the EGS2015FFG catalog number?
In Eaton Series G nomenclature, FFG indicates that the breaker has a fixed thermal and fixed magnetic trip unit, and it comes standard with factory-installed line and load terminals.
What type of protection does the EGS2015FFG provide?
It features a thermal magnetic trip unit with LI (Long-Time and Instantaneous) functions, providing protection against both overloads and short circuits.
Can I use this to replace an older Cutler-Hammer EGS2015FFG?
Yes. Eaton and Cutler-Hammer are the same brand for this product line, making this an exact, direct replacement for a Cutler-Hammer breaker with the identical catalog number.
