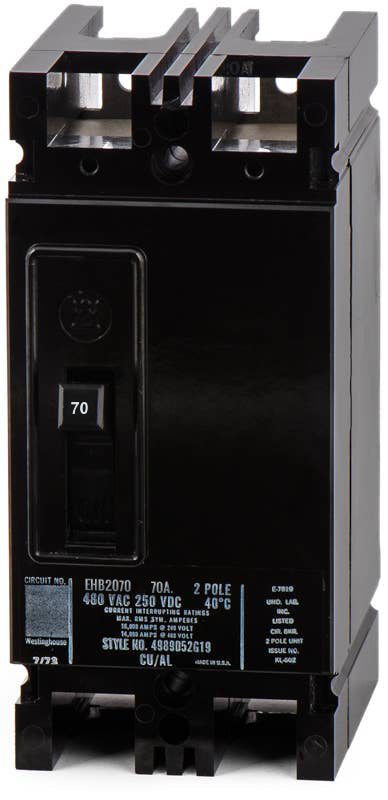

Eaton / Cutler-Hammer EHB2070 Molded Case Circuit Breaker
- 70A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
EHB2070
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EHB2070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EHB2070 - 70A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
15A 2 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Designed to safeguard industrial facilities, the Eaton EHB2070 is a robust 70-amp molded case circuit breaker. It is built to protect commercial electrical systems against overloads and short circuits. Featuring a secure bolt-on mounting style, it integrates into classic Westinghouse and Eaton Pow-R-Line 4B panelboards. It acts as a vital maintenance component for older systems, serving as the predecessor to the modern EHD2070 replacement.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EHB2070 |
| Series | EHB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | EHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line 4B Panelboards, Westinghouse Panelboards |
| Wire Gauge | 4 AWG-2/0 AWG |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards accept the EHB2070 circuit breaker?
This legacy E-Frame breaker is specifically designed to bolt into Eaton Pow-R-Line 4B distribution panelboards, as well as older Westinghouse panelboards that utilize the same chassis design.
What is the active replacement for the obsolete EHB2070?
Because the EHB series is a legacy product, Eaton offers the EHD2070 from the Series C F-Frame family as the modern, functional cross-reference for 70-amp, 2-pole applications.
How does the thermal-magnetic trip unit operate on this breaker?
The EHB2070 uses a fixed thermal and fixed magnetic mechanism. The thermal component provides long-time delayed protection against sustained overloads, while the magnetic component delivers instantaneous tripping during severe short circuits.
Are the load lugs included with the EHB2070?
Yes, the breaker comes equipped with standard pressure load terminals that accept wire gauges from 4 AWG up to 2/0 AWG for your branch circuit connections.
Is the Eaton EHB2070 interchangeable with Cutler-Hammer and Westinghouse versions?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse electrical distribution lines, so this breaker serves as a direct replacement for older EHB2070 models branded under either of those names.
