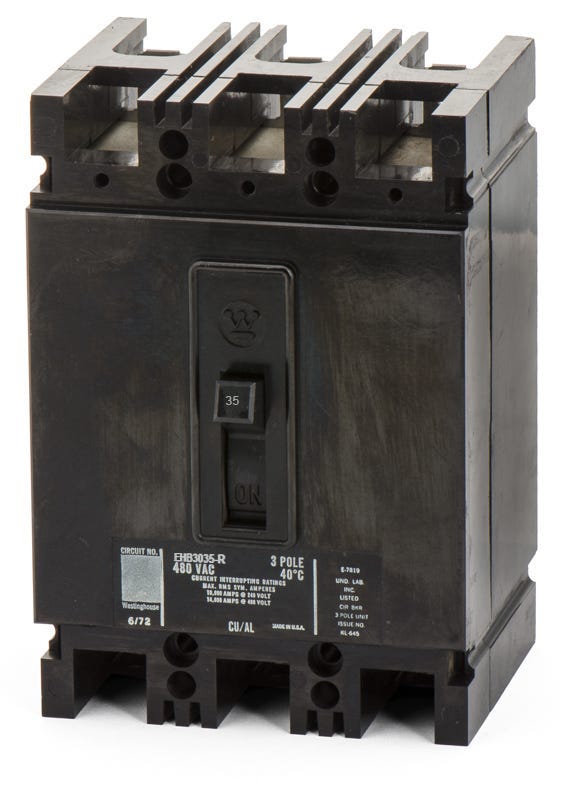

Eaton / Cutler-Hammer EHB3035 Molded Case Circuit Breaker
- 35A
- 3 Pole
- Bolt-On
Quantity
Eaton / Cutler-Hammer EHB3035 - 35A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Built for heavy-duty power distribution, this 35-amp molded case circuit breaker secures commercial electrical systems against overloads and short circuits. The bolt-on design fits seamlessly into Eaton Pow-R-Line C and classic Westinghouse F-Frame panelboards. With an interrupting capacity of 65kA at 240VAC and 14kA at 480Y/277VAC, it meets stringent safety standards including UL 489. Facilities upgrading their infrastructure often transition to the EHD3035 substitute.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EHB3035 |
| Series | EHB |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC |
| Frame Type | EHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Westinghouse F-Frame Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
7 answersWhich panelboards accept the EHB3035 circuit breaker?
This F-Frame breaker is designed for bolt-on installation in modern Eaton Pow-R-Line C panelboards as well as legacy Westinghouse and Cutler-Hammer F-Frame distribution panels.
What is the modern replacement for the EHB3035?
The EHB series is a legacy F-Frame breaker. If you are upgrading your infrastructure, the Eaton EHD3035 is the direct substitute, offering the same physical dimensions and 14kA at 480VAC interrupting capacity.
Does the EHB3035 require a specific mounting kit?
Yes, as a bolt-on F-Frame breaker, it requires the appropriate twin or single mounting hardware kit to secure it to the busbar in Pow-R-Line or legacy Westinghouse switchboards.
What type of protection does the EHB3035 trip unit provide?
It features a fixed thermal-magnetic trip unit with long-time and instantaneous (LI) functions. The thermal element responds to prolonged overloads, while the magnetic element trips immediately during short circuits.
Can the EHB3035 be used in high-vibration environments?
Yes, the bolt-on connection provides a secure mechanical attachment to the panelboard bus. This ensures a reliable connection that resists loosening in industrial or high-vibration environments, reducing the risk of arcing.
Is the EHB3035 rated for direct current (DC) systems?
Yes, alongside its standard AC ratings, this breaker is certified for 250VDC applications with a 10kA interrupting capacity, making it suitable for industrial DC control and distribution circuits.
What wire sizes are compatible with the EHB3035 terminals?
The factory lugs on this 35-amp breaker accept wire sizes from 14 AWG to 2 AWG. Always torque the terminal screws to the manufacturer specifications printed on the breaker to ensure a safe connection.
