Eaton / Cutler-Hammer FDC3175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
FDC3175
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FDC3175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

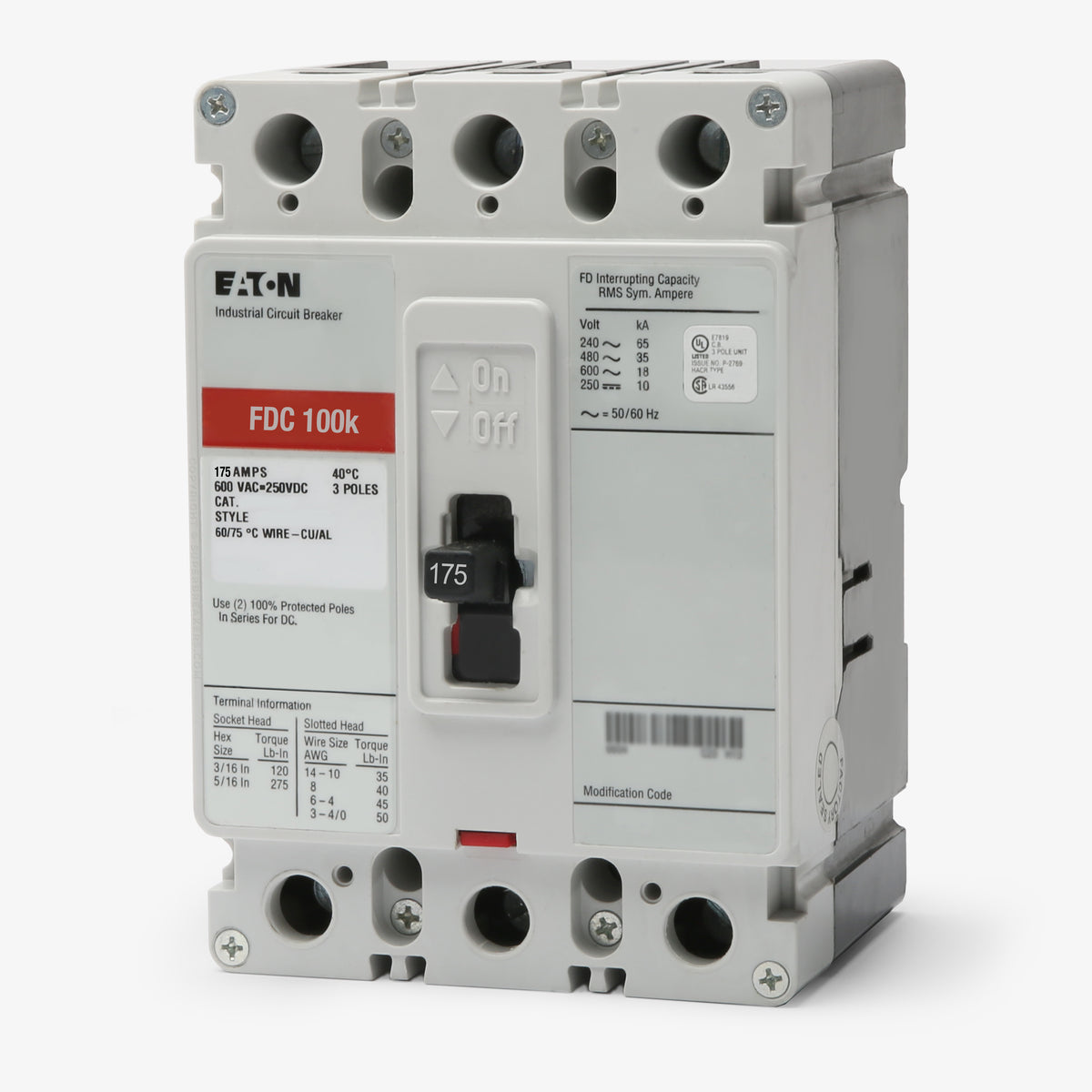

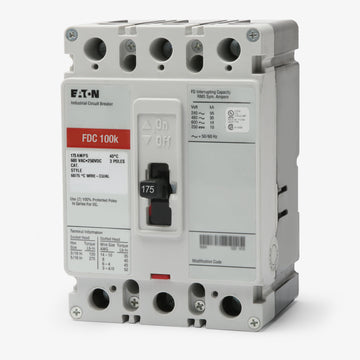

Eaton / Cutler-Hammer FDC3175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
225A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the 175A FDC3175 offers robust thermal-magnetic protection. This F-Frame breaker utilizes a current-limiting design to restrict let-through energy. The bolt-on configuration ensures a secure connection in Eaton Series C panelboards and switchboards. It includes load side lugs accommodating 4 AWG to 4/0 AWG wire. Delivering 200kAIC at 240V and 100kAIC at 480V, it meets stringent industrial requirements. The device features fixed LI trip settings.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FDC3175 |
| Series | FDC |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields, Lug Kits |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersWhat panelboards are compatible with the FDC3175 breaker?
This F-Frame breaker is designed for use in Eaton and Cutler-Hammer Series C panelboards, switchboards, and motor control centers.
Can the FDC3175 replace older Westinghouse or Cutler-Hammer FDC breakers?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse distribution equipment lines. A modern Eaton FDC3175 is a direct, drop-in replacement for legacy Westinghouse or Cutler-Hammer breakers with the exact same catalog number.
Can I use the FDC3175 in place of an FD3175 or HFD3175?
Yes. The FDC3175 shares the exact same physical dimensions as the standard FD3175 and high-interrupting HFD3175, but features an ultra-high interrupting capacity (100kAIC at 480VAC). It is safe and code-compliant to use a higher-rated breaker in place of a lower-rated one within the same frame family.
Are the thermal and magnetic trip points adjustable on this breaker?
No. The FDC3175 features a fixed thermal and fixed magnetic trip unit. If you require adjustable trip settings, you will need a breaker with an electronic trip unit, such as an FDE frame.

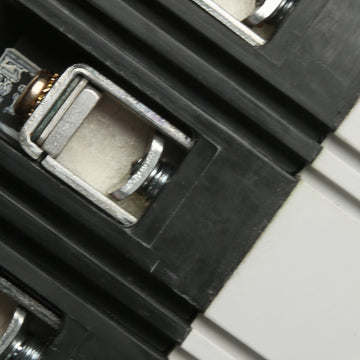

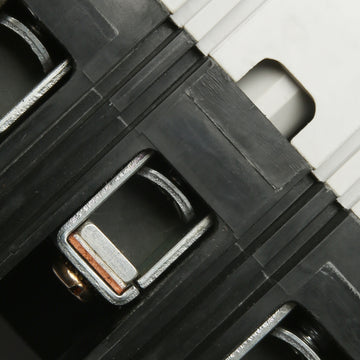

What wire sizes do the standard lugs on the FDC3175 accept?
The factory-installed lugs accept 4 AWG through 4/0 AWG copper or aluminum conductors. Ensure proper torque specifications are followed during installation as outlined on the breaker faceplate.
Is the FDC3175 suitable for direct current (DC) applications?
Yes, this thermal-magnetic breaker is rated for up to 250VDC with an interrupting capacity of 22kAIC, making it suitable for specific DC control circuits, solar applications, and battery systems.
What does the 'C' in the FDC frame designation indicate?
In the Eaton Series C F-Frame family, the 'C' designates the ultra-high interrupting capacity tier. The FDC frame provides up to 200kAIC at 240VAC and 100kAIC at 480VAC, which is significantly higher than the standard FD and high-interrupting HFD frames.
Does this breaker mount to DIN rail or bolt directly to the bus?
The FDC3175 is a bolt-on circuit breaker designed to bolt directly to the busbars in Series C panelboards and switchboards. It is not designed for DIN rail mounting.
