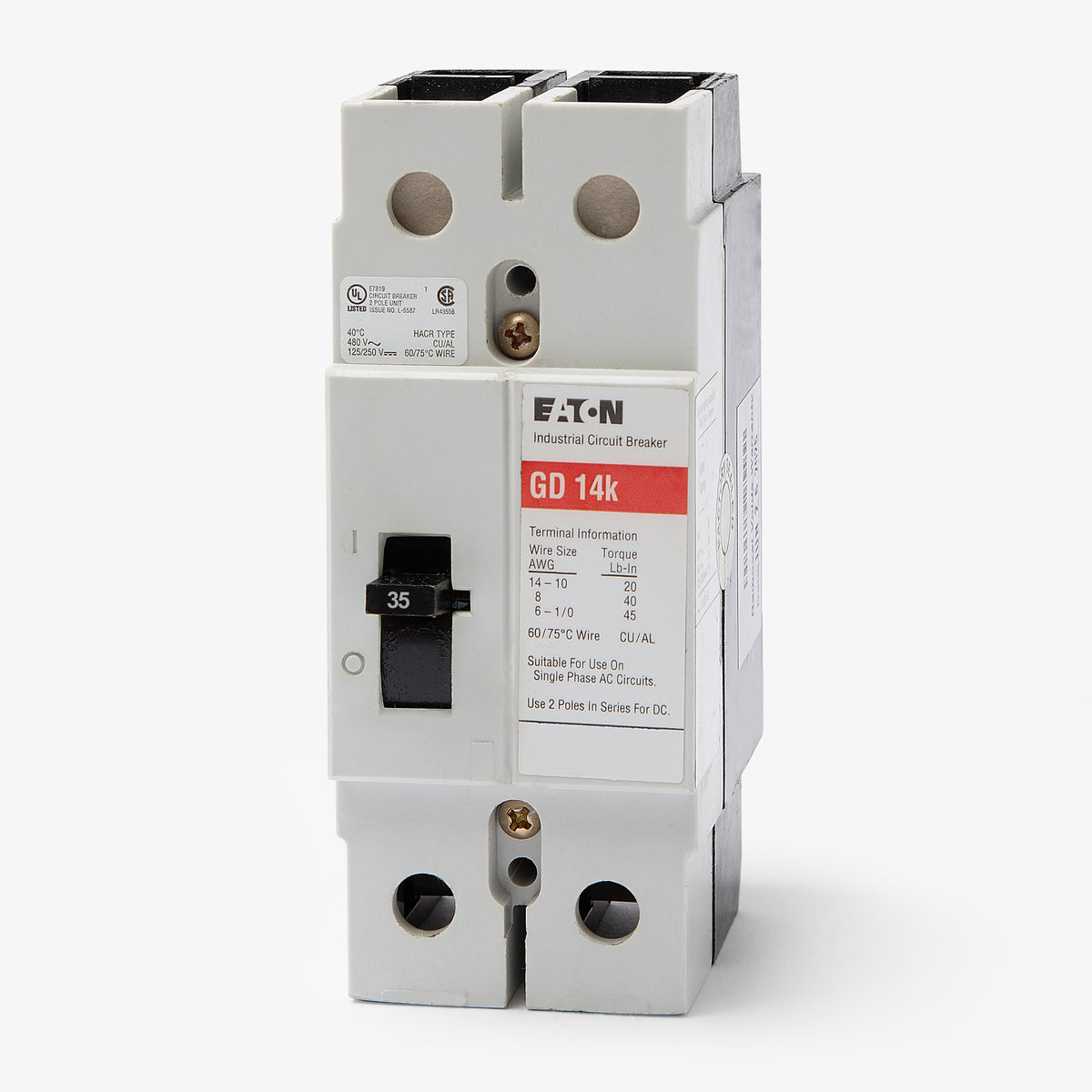

Eaton / Cutler-Hammer GD2035 Molded Case Circuit Breaker
- 35A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
GD2035
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GD2035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GD2035 - 35A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 2 Pole Molded Case Circuit Breaker
45A 2 Pole Molded Case Circuit Breaker
25A 2 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty power systems, this 35A molded case circuit breaker provides essential LI (long-time and instantaneous) protection. It is an ideal choice for commercial facilities requiring consistent electrical safety. The G-Frame device integrates seamlessly into Eaton Series C motor control centers and panelboards. It utilizes a standard unit-mount configuration with included line and load lugs. Operating at up to 480VAC, it features a 14 kAIC interrupt capacity and HACR rating.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GD |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480VAC, 10kA @ 125/250VDC |
| Frame Type | G |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Motor Control Centers, Switchboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included, Mounting Hardware |
| Standards | HACR, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
8 answersCan I use aluminum wire with the standard lugs on the GD2035?

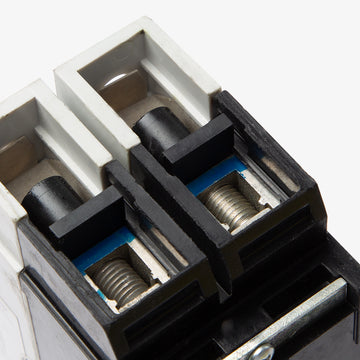

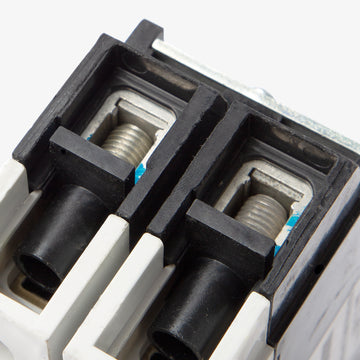

Yes, the standard pressure terminals on Eaton G-frame circuit breakers are rated for both copper and aluminum (Cu/Al) conductors.
What is the difference between Eaton GD and GHB circuit breakers?
While both are Series C G-frame breakers, the GD2035 is a unit-mount (feed-thru) breaker designed for cable-in and cable-out connections. The GHB series is designed to bolt directly onto the busbar of an Eaton panelboard.
Is the Eaton GD2035 suitable for DC voltage applications?
Yes, this breaker is rated for up to 125/250VDC with a 10kAIC interrupting capacity, making it suitable for specific direct current control circuits and panels.
How is the GD2035 circuit breaker mounted?

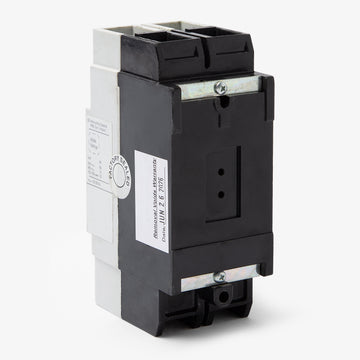

The GD2035 features a feed-thru, unit-mount design. It bolts directly to a mounting plate or enclosure backpan rather than plugging or bolting onto a panelboard busbar.
Can I install the GD2035 in a standard load center?
No, the GD2035 is a molded case circuit breaker designed for industrial enclosures, motor control centers, and switchboards. It will not fit in standard residential load centers that require plug-on or bolt-on branch breakers.
Does the GD2035 support reverse feeding?
Yes, Eaton Series C G-frame circuit breakers are suitable for reverse feed applications.
Are the trip settings adjustable on the GD2035?
No, this breaker features a thermal-magnetic trip unit with fixed long-time and fixed instantaneous trip functions. The trip settings cannot be adjusted in the field.
Does the GD2035 provide ground fault or arc fault protection?
No, the GD2035 is a standard thermal-magnetic breaker designed for overload and short-circuit protection. It does not include built-in GFCI or AFCI capabilities.
