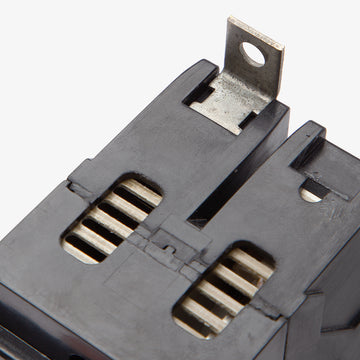

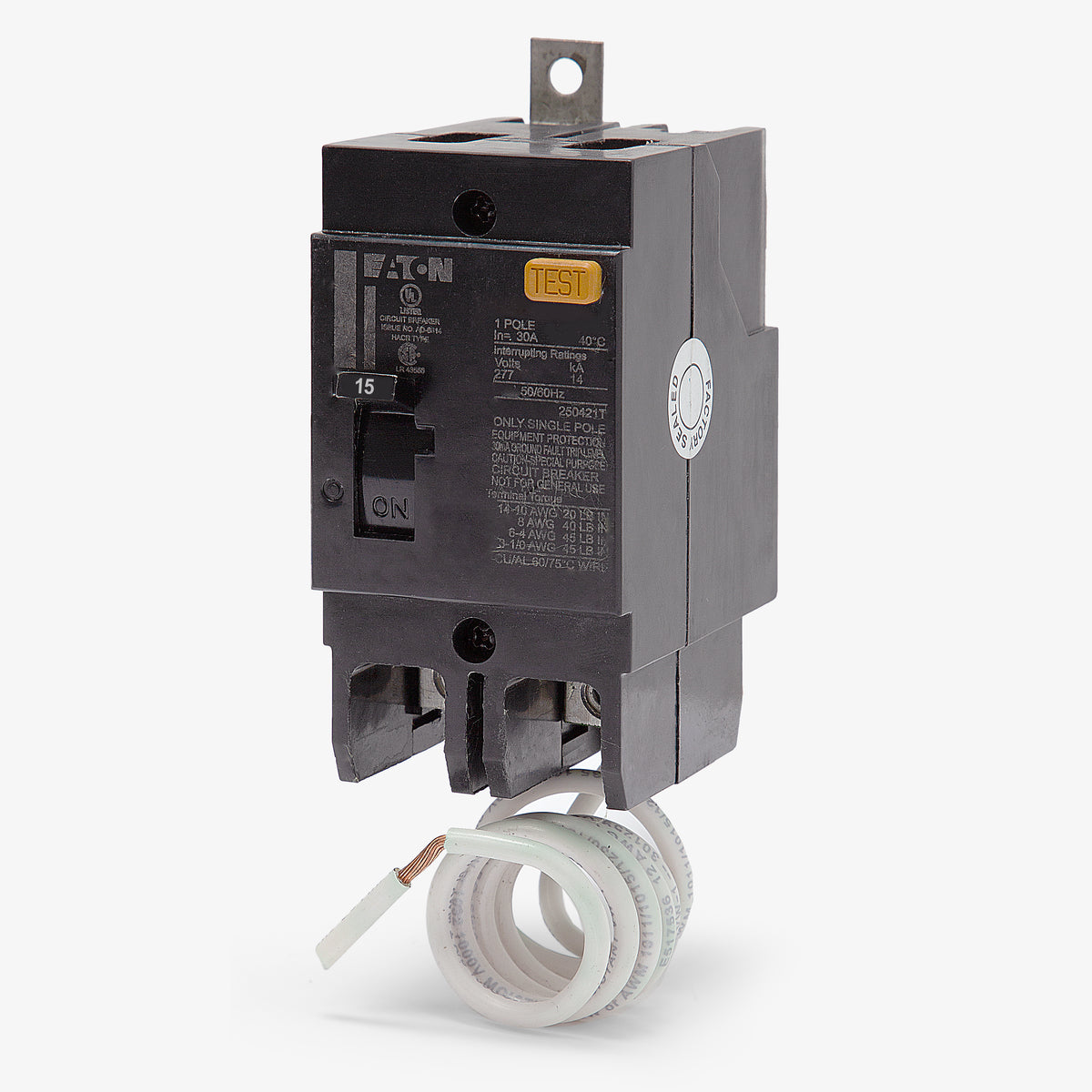

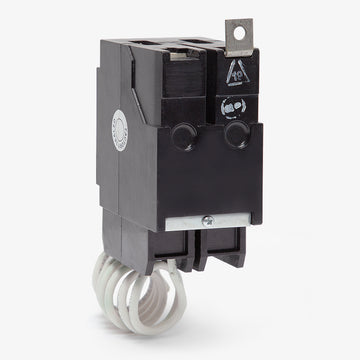

Eaton / Cutler-Hammer GHBGFEP1015 GFEP Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Quantity
Eaton / Cutler-Hammer GHBGFEP1015 - 15A GFEP Molded Case Circuit Breaker
New
Quantity
Description
Engineered for commercial and industrial distribution, the Eaton GHBGFEP1015 delivers reliable 30mA ground-fault equipment protection. This 1-pole, 15A molded case circuit breaker utilizes thermal-magnetic trip technology to safeguard machinery from low-level fault currents. It bolts securely into Eaton Pow-R-Line panelboards and Series C switchboards. Featuring a 14 kAIC rating at 277VAC, this G-Frame breaker is HACR rated and current limiting for enhanced system safety.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GHB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Pow-R-Line Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment, Alarm Switch |
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 1053, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting |
Product FAQs
6 answersWhich panelboards accept the GHBGFEP1015 circuit breaker?
This breaker is designed for use in Eaton and Cutler-Hammer Series C panelboards, as well as Pow-R-Line panelboards (including PRL1a, PRL2a, and PRL3a) and switchboards that accept G-frame bolt-on breakers.
What is the ground fault trip sensitivity for the GHBGFEP1015?
This GFEP (Ground Fault Equipment Protection) breaker features a 30mA ground fault trip threshold. It is designed to protect equipment from low-level electrical faults, rather than providing the 5mA personnel protection found in standard GFCI breakers.
Can the GHBGFEP1015 be used in a 120/208V panelboard?
No. This breaker is rated for 277VAC and requires sufficient voltage to power the internal ground fault sensor. It will not function correctly in a 120/208V system.
How is the neutral connection handled on this breaker?
The GHBGFEP1015 is equipped with a pigtail neutral wire. This pigtail must be connected directly to the neutral bar in the panelboard to power the ground fault sensor and ensure proper operation.
How do I test the ground fault function on the GHBGFEP1015?

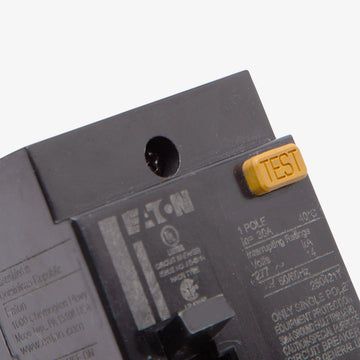

The breaker includes a built-in push-to-trip button for functional testing of the ground fault circuitry. It also features a trip window that indicates red when the breaker has tripped due to a ground fault condition.
Is the Eaton GHBGFEP1015 the same as the Cutler-Hammer GHBGFEP1015?
Yes. Eaton acquired Cutler-Hammer, and they manufacture this breaker under the exact same GHBGFEP1015 catalog number. They are physically and functionally identical.
