Eaton / Cutler-HammerHMCP030H1
Eaton / Cutler-Hammer GMCP030H1C Motor Circuit Protector
- 30A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
GMCP030H1C
Motor Circuit Protector
Brand
Eaton / Cutler-Hammer
SKU
GMCP030H1C
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GMCP030H1C - 30A 3 Pole Motor Circuit Protector
New
Quantity
Similar Items

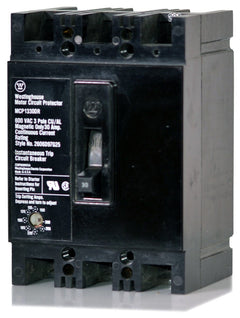

Eaton / Cutler-HammerMCP13300R
30A 3 Pole Motor Circuit Protector
Eaton / Cutler-HammerHMCP030H1C
30A 3 Pole Motor Circuit Protector
Eaton / Cutler-HammerHMCPS030H1C
30A 3 Pole Motor Circuit Protector
Description
Engineered for motor branch circuit protection, this 30A Eaton Series C device delivers reliable magnetic-only trip performance. It installs into Series C motor control centers, combination motor starters, and compatible panelboards. The adjustable magnetic trip range of 150 to 300 amps allows precise coordination with motor overloads. Rated for 35kA interrupting capacity at 480VAC, it includes copper line and load lugs for immediate integration into industrial control applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GMCP030H1C |
| Series | GMCP |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Motor Control Centers, Combination Motor Starters, Series C Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included, Copper Lugs Included |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector |
