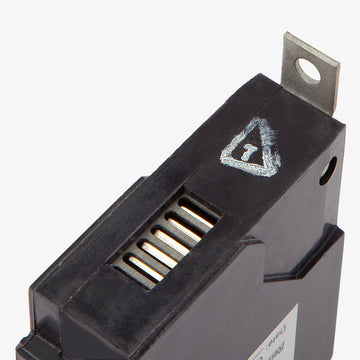

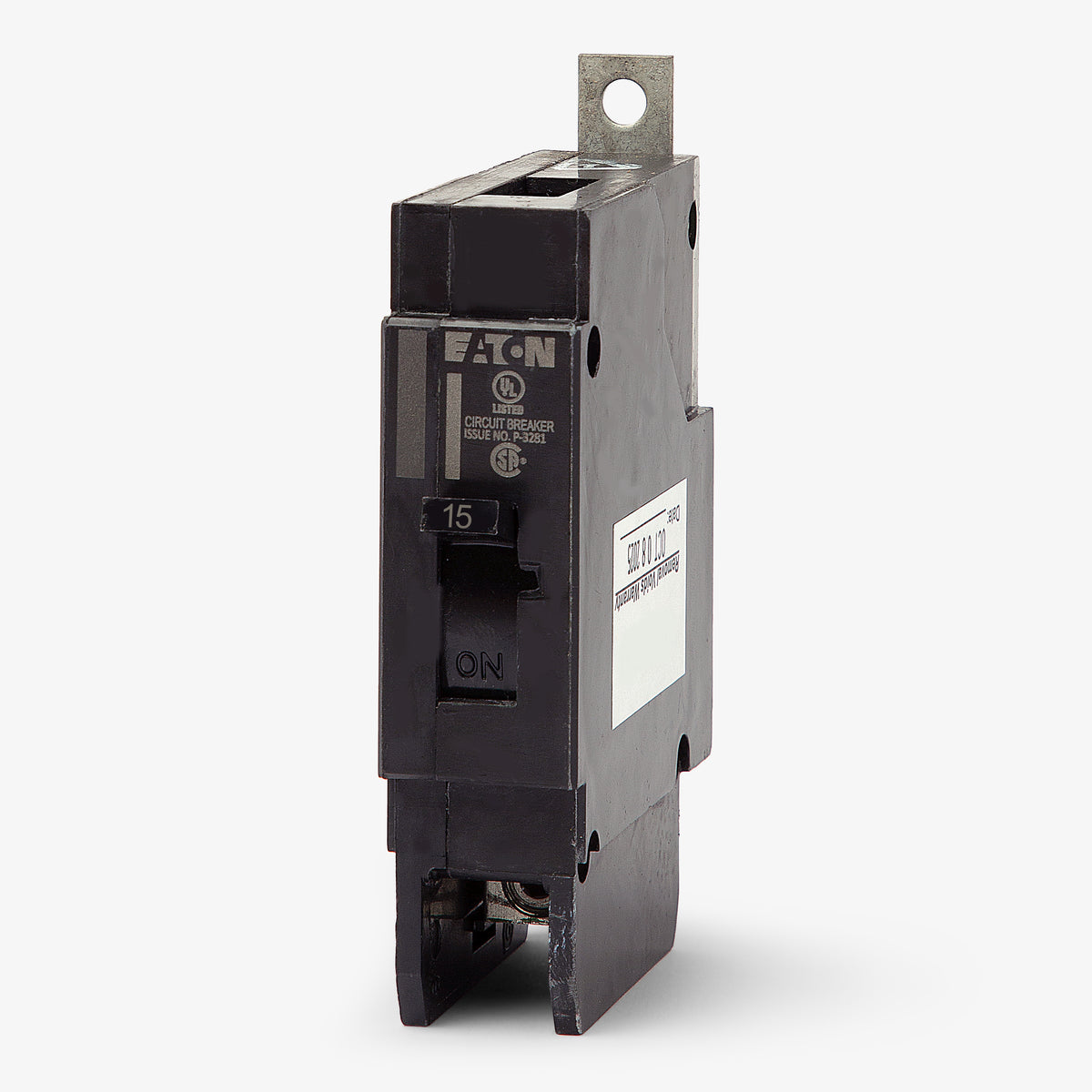

Eaton / Cutler-Hammer HGHB1015 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Quantity
Eaton / Cutler-Hammer HGHB1015 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Description

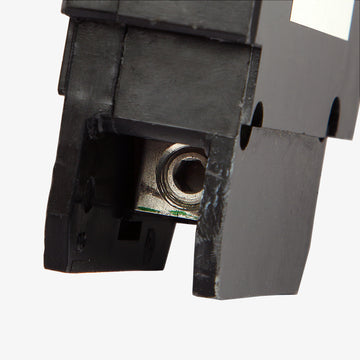

Built for commercial power distribution, the Eaton HGHB1015 is a 1-pole, 15A molded case circuit breaker. Part of the Series C G-Frame family, it delivers dependable thermal-magnetic protection. This unit bolts into Eaton Pow-R-Line 2 (PRL2) panelboards and motor control centers. It features standard load side lugs accommodating 14 to 1/0 AWG wire. Delivering 65kAIC at 120VAC, it is HACR rated for HVAC equipment and SWD rated for switching fluorescent lighting loads.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | HGHB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 25kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | G |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line 2 (PRL2) Panelboards, Series C Panelboards, Motor Control Centers, Switchboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375b, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, SWD Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards are compatible with the Eaton HGHB1015 circuit breaker?
The HGHB1015 is a Series C, G-frame breaker designed to bolt into Eaton Pow-R-Line 2 (PRL2) panelboards, Series C switchboards, and compatible motor control centers.
Is the HGHB1015 rated for HVAC and lighting applications?
Yes, this breaker is both HACR rated for use with heating, air conditioning, and refrigeration equipment, and SWD rated for switching fluorescent lighting loads.
Can the Eaton HGHB1015 be reverse fed?
Yes, this Series C G-frame breaker is suitable for reverse feed installations.
What wire sizes are accepted by the lugs on the HGHB1015?
The standard load-side lugs on this breaker accommodate wire sizes ranging from 14 AWG to 1/0 AWG.
What is the difference between the HGHB1015 and the standard GHB1015?
Both are 15A, 1-pole G-frame breakers for PRL2 panelboards, but the HGHB1015 is the high-interrupting version. It provides 25kAIC at 277VAC, whereas the standard GHB1015 provides 14kAIC at 277VAC.
