Eaton / Cutler-Hammer NB3800PR Molded Case Circuit Breaker
- 800A
- 3 Pole
- Unit Mount
Quantity

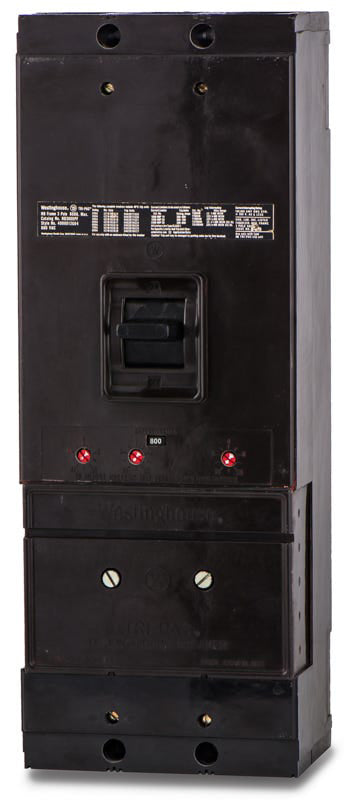

Eaton / Cutler-Hammer NB3800PR - 800A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Built for demanding commercial environments, the Eaton NB3800PR is a 3-pole, 800A MCCB. It is equipped with a thermal magnetic trip unit offering fixed thermal and adjustable magnetic responses for precise LI overcurrent protection. Designed for unit-mount installations, this breaker fits into Westinghouse Pow-R-Line 4B panelboards. It acts as a replacement for the NB3800P. Boasting a 200kAIC rating at 480VAC, it incorporates fused current-limiting capabilities to clear high-level faults.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | NB3800PR |
| Series | NB |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 200kA @ 600VAC, 100kA @ 250VDC |
| Frame Type | NB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse Pow-R-Line 4B Panelboards, Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, Fused, High Interrupting Capacity |
| Special Features | Integrally Fused |
Product FAQs
8 answersWhat panelboards are compatible with the Eaton NB3800PR circuit breaker?
The NB3800PR is designed for use in Westinghouse Pow-R-Line 4B panelboards and compatible switchboards.
Is the NB3800PR a complete breaker or just the frame?
The NB3800PR catalog number represents a complete Tri-Pac fused molded case circuit breaker. It includes the NB frame, an 800A thermal-magnetic trip unit, and current-limiting fuses.
What is the difference between the NB3800PR and the NB3800PF?
The NB3800PR is a fully assembled breaker that includes the 800A trip unit and fuses. The NB3800PF refers to the breaker frame only, requiring a separate trip unit to be installed.
What does the Tri-Pac designation mean for the NB3800PR?
Tri-Pac indicates that this is a fused molded case circuit breaker. It integrates standard thermal-magnetic trip functions with current-limiting fuses to provide high interrupting capacity, up to 200kA at 480VAC.
How does the NB3800PR mount into a panelboard?
This breaker features a bolt-on connection type and is designed for unit mount installation within compatible panelboards and switchboards.
Can the NB3800PR be used in DC applications?
Yes, this breaker is rated for DC applications with a maximum voltage of 250VDC and an interrupting capacity of 100kA at that voltage.
Is the Eaton NB3800PR the same as the Westinghouse NB3800PR?
Yes. The NB3800PR was originally manufactured by Westinghouse. Eaton acquired the Westinghouse distribution equipment business and continued producing these breakers under the Cutler-Hammer and Eaton brands.
Are the trip settings on the NB3800PR adjustable?
The NB3800PR features a thermal-magnetic trip unit with a fixed thermal setting for long-time protection and an adjustable magnetic setting for instantaneous short-circuit protection.
