Eaton / Cutler-Hammer PB32500 Molded Case Circuit Breaker
- 2500A
- 3 Pole
- Bolt-On
Quantity

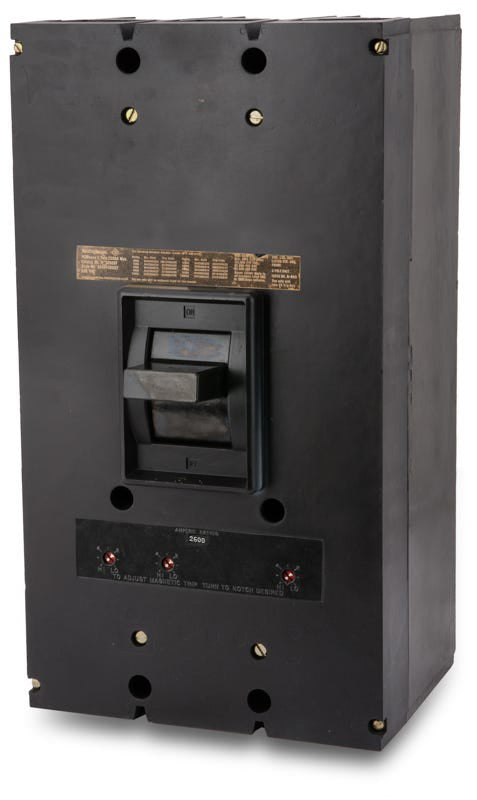

Eaton / Cutler-Hammer PB32500 - 2500A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Designed for maximum current capacity, the Eaton PB32500 is a 3-pole, 2500A insulated case circuit breaker. It ensures safe power distribution across heavy-duty 600VAC industrial applications. Utilizing a sturdy busbar connection, this bolt-on MCCB installs into PB Series enclosures, panelboards, and switchboards. For facility upgrades, it is commonly replaced by Eaton's Series C RD-Frame or Power Defense PD6 breakers. The 100% rated breaker features an interchangeable LI trip unit and 100kAIC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PB32500 |
| Series | PB |
| Amperage | 2500A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 100kA @ 600VAC, 100kA @ 250VDC |
| Frame Type | PB |
|---|---|
| Terminal Type | Busbar Connection |
| For Use With | PB Series Enclosures, PB Panelboards, Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Not Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | 100% Rated, Interchangeable Trip Unit |
Product FAQs
7 answersWhat types of electrical gear can the PB32500 be installed in?
This legacy PB-frame breaker is specifically engineered for Eaton, Cutler-Hammer, and Westinghouse PB series enclosures, PB panelboards, and compatible switchboards. It uses a bolt-on busbar connection and cannot be installed in standard molded case panelboards.
Are Eaton, Cutler-Hammer, and Westinghouse PB32500 breakers the same?
Yes. Eaton acquired the Westinghouse electrical distribution business and integrated it into the Cutler-Hammer brand. A PB32500 breaker carrying the Westinghouse, Cutler-Hammer, or Eaton nameplate is electrically and physically interchangeable.
What is the difference between the PB32500 and the PB32500F?
The PB32500 represents the complete circuit breaker assembly, while the PB32500F catalog number designates the breaker frame only. If you are replacing a complete unit, you must ensure you have both the frame and the interchangeable thermal-magnetic trip unit.
Are cable lugs included with the PB32500 circuit breaker?
No. This breaker is factory-configured for a direct bolt-on busbar connection and does not include wire lugs. If your application requires cable terminations, you must purchase the appropriate PB-frame lug kits separately.
How do the trip functions on the PB32500 operate?
The breaker is equipped with a thermal-magnetic trip unit featuring LI (Long-Time and Instantaneous) functions. It allows licensed electricians to adjust both the thermal overload and the magnetic short-circuit response curves to coordinate with facility protection requirements.
What safety protocols are required when adjusting the thermal-magnetic trip unit?
Proper Lockout/Tagout (LOTO) procedures must be strictly followed. The breaker must be completely de-energized, isolated from all power sources, and verified with a multimeter before an electrician adjusts the Long-Time or Instantaneous settings.
Can I upgrade a PB32500 to a modern Eaton Power Defense or Series C breaker?
While modern equivalents like the Power Defense PD6 or Series C RD-frame offer similar 2500A ratings, they are not direct plug-and-play replacements for the PB-frame. Installing a newer frame style into existing PB gear requires specific retrofill hardware or custom bus modifications.
