Eaton / Cutler-Hammer PDG22F0100TFFL Molded Case Circuit Breaker
- 100A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22F0100TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22F0100TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG22F0100TFFL - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22G0100TFFL
100A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0100TFFJ
100A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0100TFFJ
100A 2 Pole Molded Case Circuit Breaker
Description
The PDG22F0100TFFL is a 100A, two-pole molded case circuit breaker from Eaton's Power Defense series. Designed for commercial power distribution, this Frame 2 device provides reliable long-time and instantaneous (LI) protection. It mounts into Eaton panelboards and enclosures. As a modern upgrade, it serves as a drop-in replacement for legacy FDB2100 breakers, ensuring seamless integration. Featuring a 35kAIC rating at 240VAC, it includes standard load-side lugs and is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Terminal Shields, Handle Lock |
|---|---|
| Accessories | Standard Terminals Load Only |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
8 answersCan the PDG22F0100TFFL replace older Eaton or Cutler-Hammer breakers?
Yes, the Power Defense Frame 2 series serves as a drop-in replacement for legacy Series C F-frame breakers, such as the FDB2100, fitting into the same panelboards and enclosures.
What does the F in the PDG22F0100TFFL catalog number signify?
In the Eaton Power Defense nomenclature, the F indicates the interrupting capacity. For this Frame 2 breaker, it signifies a 25kAIC rating at 480VAC.
What do the letters TFF indicate in the part number?
TFF indicates the trip unit configuration. It stands for a thermal magnetic trip unit with fixed thermal and fixed magnetic protection settings.
Is this circuit breaker suitable for DC applications?
Yes, the PDG22F0100TFFL is rated for DC systems, providing an interrupting capacity of 10kAIC at 250VDC.
What types of enclosures and panels is this breaker compatible with?
This bolt-on breaker is designed for use with Eaton Power Defense panelboards, switchboards, and compatible industrial control enclosures.
How is the PDG22F0100TFFL installed into a panel?
This is a panel mount breaker that utilizes a bolt-on connection type for secure installation in compatible Eaton distribution equipment.
What wire sizes are compatible with the lugs on this breaker?

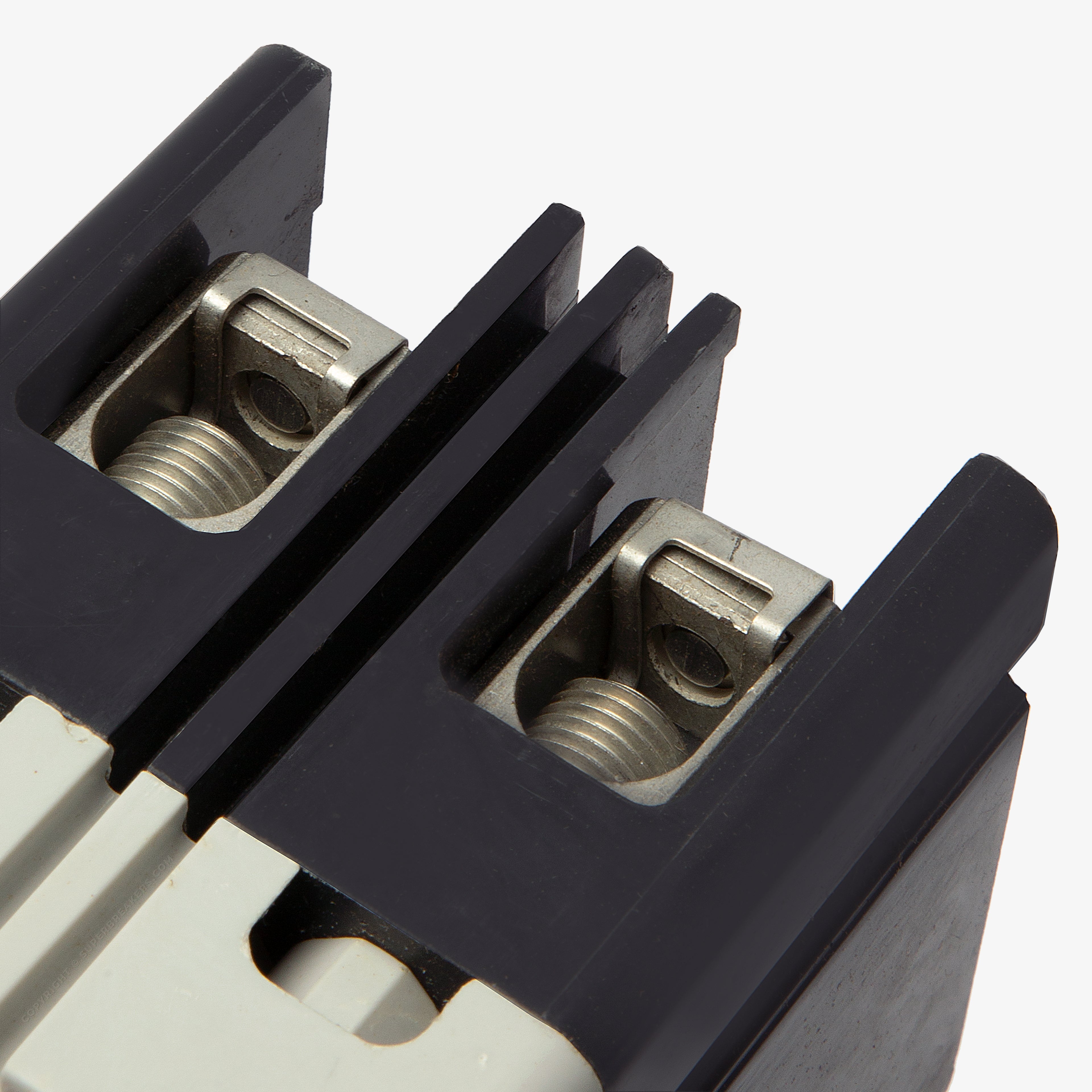

The standard lugs accept wire gauges from 14 AWG up to 1/0 AWG and are compatible with both aluminum and copper conductors.
Does this breaker provide instantaneous short-circuit protection?
Yes, it features a thermal magnetic trip unit that provides both long-time overload protection and instantaneous short-circuit protection.
