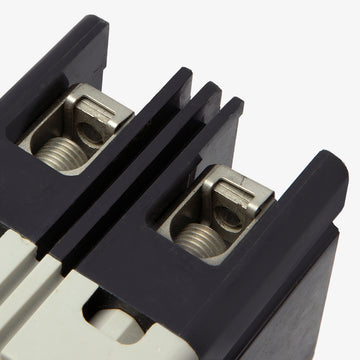

Eaton / Cutler-Hammer PDG22F0150TFFL Molded Case Circuit Breaker
- 150A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22F0150TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22F0150TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG22F0150TFFL - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22G0150TFFJ
150A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0150TFFL
150A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0150TFFJ
150A 2 Pole Molded Case Circuit Breaker
Description
Built for demanding electrical environments, the Eaton PDG22F0150TFFL is a 2-pole, 150A MCCB from the Power Defense family. It utilizes a fixed thermal-magnetic (LI) trip mechanism to deliver dependable protection across commercial and industrial settings. This Frame 2 breaker installs into Eaton panelboards and switchboards. Equipped with load-side lugs, it acts as an exact functional substitute for legacy EGB2150FFG breakers. It features a 25kAIC rating at 480VAC and is RoHS compliant.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Terminal Shields |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | RoHS Compliant |
Product FAQs
8 answersCan the PDG22F0150TFFL be used to replace older Eaton circuit breakers?
Yes, this Power Defense Frame 2 breaker serves as a direct functional replacement for legacy Series G EGB2150FFG circuit breakers.
How do I decode the PDG22F0150TFFL catalog number?
PDG indicates a Power Defense globally rated breaker, the first 2 is the frame size, the second 2 is the number of poles, F denotes the 25kAIC rating at 480VAC, 0150 is the 150A rating, and TFFL specifies a fixed thermal magnetic trip unit with load side lugs.
What type of protection does the fixed thermal magnetic trip unit provide?
The thermal magnetic trip unit provides long-time protection against gradual overloads and instantaneous protection against severe short circuits. Both the thermal and magnetic trip points are fixed and cannot be adjusted in the field.
What types of enclosures and panels are compatible with this breaker?
This Frame 2 molded case circuit breaker is designed for installation in Eaton Power Defense panelboards, switchboards, and approved industrial enclosures.
Are the terminal lugs included with this circuit breaker?
Yes, the TFFL suffix indicates that this breaker comes factory equipped with load side lugs, which accept aluminum or copper wire ranging from 4 AWG to 4/0 AWG.
How is the PDG22F0150TFFL secured inside a panelboard?
This is a panel mount breaker that uses a bolt-on connection type to securely attach to the panel bus, ensuring a stable and reliable electrical connection.
Is this Power Defense circuit breaker suitable for direct current applications?
Yes, in addition to its alternating current ratings, this breaker is rated for use in 250VDC systems with an interrupting capacity of 10kA, making it versatile for both AC and DC industrial applications.
What safety precautions should be taken before installing this molded case circuit breaker?
Always de-energize the panelboard or switchboard before installation. Verify that the power is off using a properly rated voltage sensing device, and ensure the breaker is in the OFF position before mounting.
