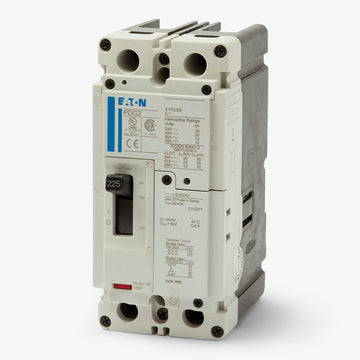

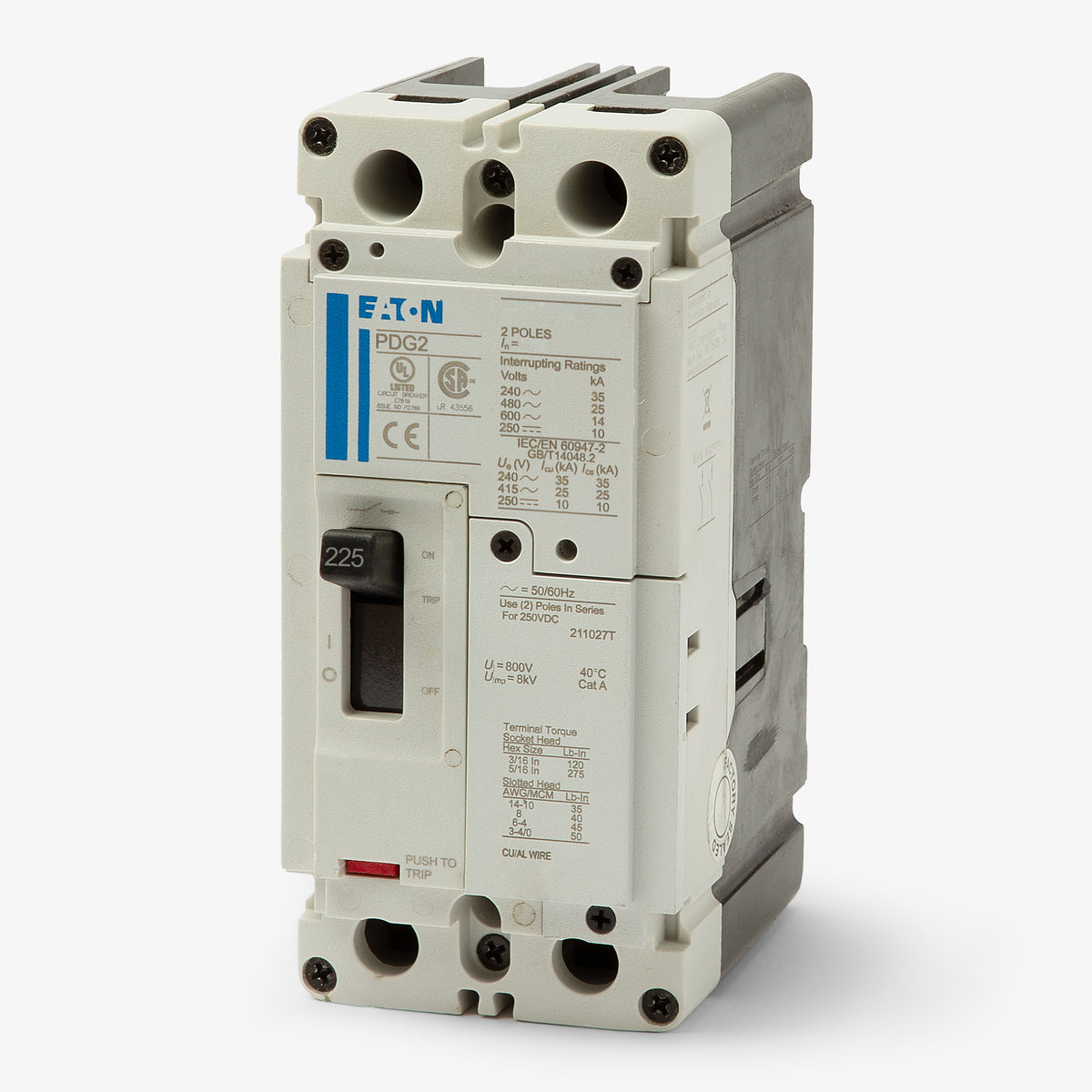

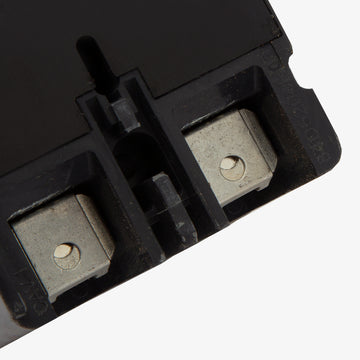

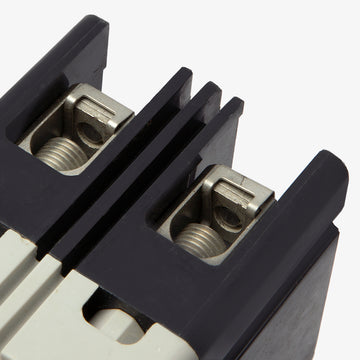

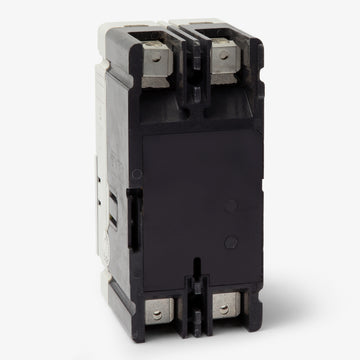

Eaton / Cutler-Hammer PDG22F0225TFFJ Molded Case Circuit Breaker
- 225A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22F0225TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22F0225TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG22F0225TFFJ - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22G0225TFFL
225A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0225TFFL
225A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22F0200TFFJ
200A 2 Pole Molded Case Circuit Breaker
Description
Operating within the Power Defense Frame 2 series, the Eaton PDG22F0225TFFJ provides essential long-time and instantaneous (LI) protection. This 2-pole, 225A molded case circuit breaker utilizes fixed thermal and magnetic trip settings to safeguard commercial, industrial, and marine electrical networks. It mounts into compatible Eaton panelboards and replaces legacy EHD2225 and FDB2225 breakers. Featuring a 35kAIC rating at 240V, the unit includes standard line and load lugs for wiring.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG22F0225TFFJ |
| Series | PDG2 |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Frame 2 Enclosures and Panelboards |
| Wire Gauge | 6 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Terminal Shields |
|---|---|
| Accessories | Line and Load Lugs (PDG2X2TA225) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
6 answersCan the PDG22F0225TFFJ replace older Cutler-Hammer circuit breakers?
Yes, the Eaton Power Defense Frame 2 series is designed to replace legacy F-Frame breakers. This specific model can serve as a direct replacement for older EHD2225 and FDB2225 breakers.
What wire sizes are accepted by the factory lugs on this 225A breaker?
The standard load and line lugs accommodate wire sizes from 6 AWG up to 300 kcmil. The terminals are rated for both aluminum and copper conductors.
Are the thermal and magnetic trip settings adjustable on this model?
No, this breaker features a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection without field-adjustable dials.
Is this circuit breaker suitable for direct current (DC) systems?
Yes, in addition to its AC ratings, this breaker is rated for up to 250VDC with a 10kA interrupting capacity for use in DC distribution applications.
Which Eaton panelboards are compatible with this Frame 2 breaker?
This unit is engineered specifically for Eaton Power Defense Frame 2 panelboards, switchboards, and standalone enclosures.
What global safety standards does this molded case circuit breaker meet?
The Power Defense series is globally rated, meeting UL 489, CSA C22.2, and IEC 60947-2 safety standards for commercial and industrial electrical systems.
