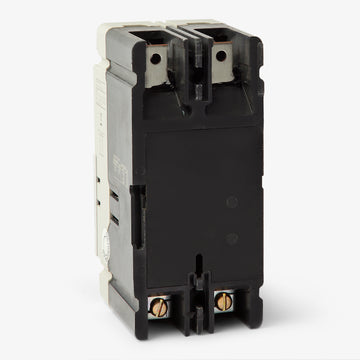

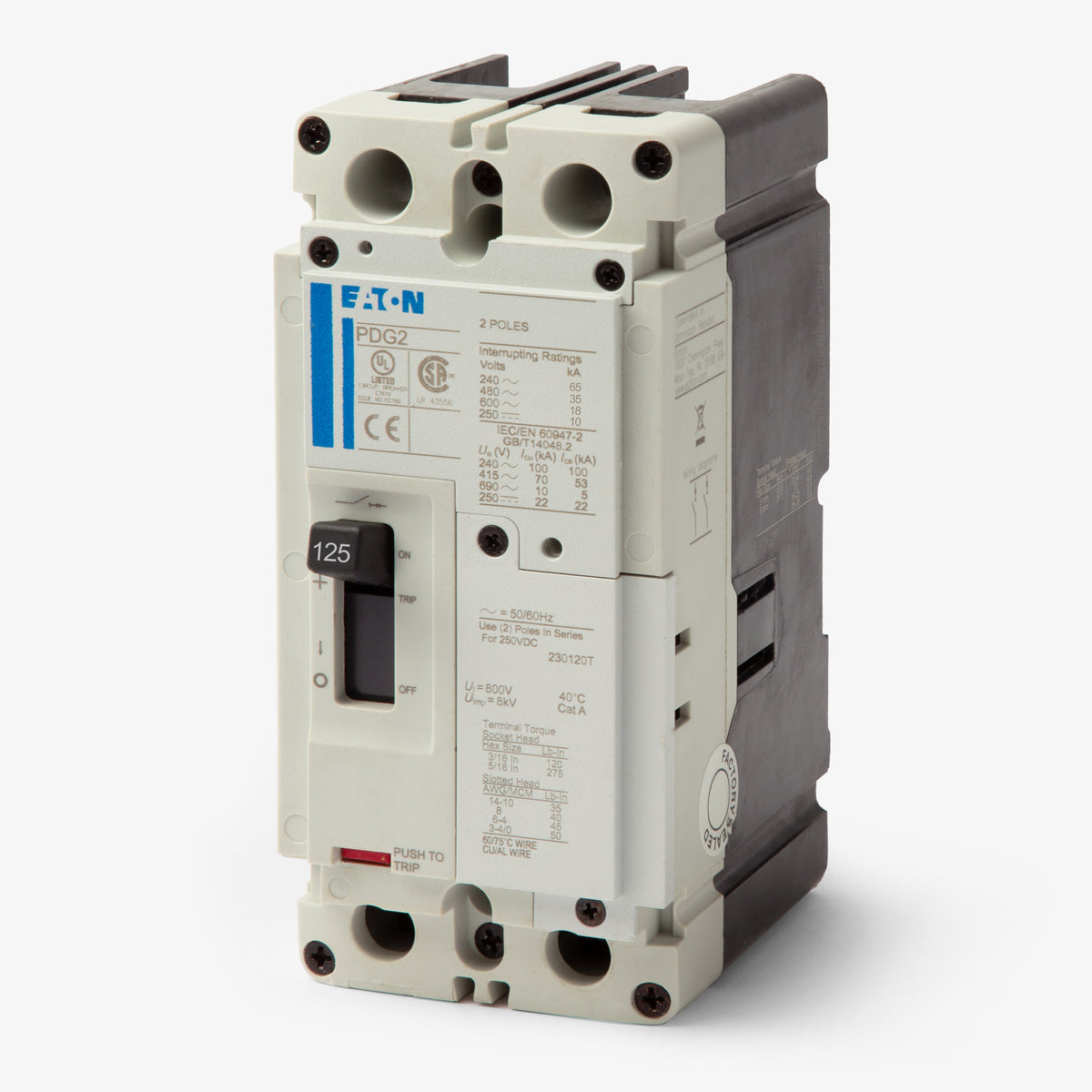

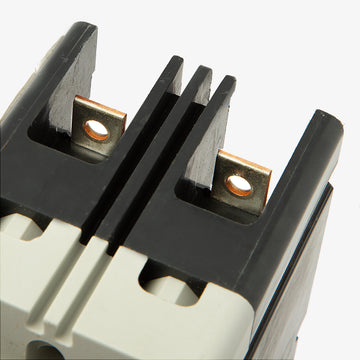

Eaton / Cutler-Hammer PDG22G0125TFFJ Molded Case Circuit Breaker
- 125A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22G0125TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22G0125TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG22G0125TFFJ - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22M0125TFFJ
125A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0125TFFL
125A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0150TFFJ
150A 2 Pole Molded Case Circuit Breaker
Description
Part of Eaton's Power Defense line, this 125A molded case circuit breaker delivers reliable thermal-magnetic LI protection for commercial applications. The two-pole unit features fixed long-time and instantaneous trip functions. The PDG22G0125TFFJ mounts into Eaton Power Defense and Series C F-Frame panelboards. It serves as a direct upgrade for legacy HFD2125 and EGS2125FFG breakers, including standard line and load lugs. Rated 35kAIC at 480VAC, this globally compliant MCCB is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG22G0125TFFJ |
| Series | PDG2 |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures, Series C F-Frame Panelboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
6 answersWhich panelboards are compatible with the PDG22G0125TFFJ?
This Power Defense Frame 2 breaker is designed for use in Eaton Power Defense panelboards, switchboards, and enclosures. It is also footprint compatible with legacy Series C F-Frame panelboards.
Can the PDG22G0125TFFJ replace older Cutler-Hammer Series C breakers?
Yes, the Eaton Power Defense Frame 2 series is a direct physical replacement for legacy Series C F-Frame circuit breakers, sharing the same footprint and mounting dimensions.

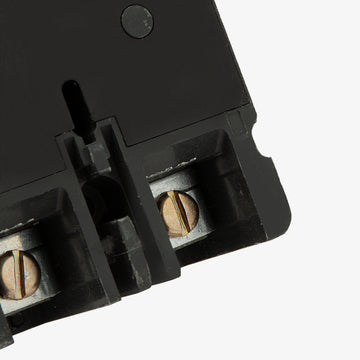

What wire sizes are accepted by the lugs on this breaker?
The factory-installed lugs accept 4 AWG through 4/0 AWG aluminum or copper conductors.
Are the thermal and magnetic trip settings adjustable on this model?
No, the PDG22G0125TFFJ features a fixed thermal and fixed magnetic trip unit. Neither the long-time nor the instantaneous pickup levels can be adjusted in the field.
How does the interrupting capacity scale across different AC voltages?
The breaker is rated for 65kAIC at 240VAC, 35kAIC at 480VAC, and 18kAIC at 600VAC. Ensure your system fault current does not exceed these limits at the respective operating voltage.
What is the DC interrupting rating for this Power Defense breaker?
When used in direct current applications, this breaker provides a 10kAIC interrupting rating at 250VDC.
