Eaton / Cutler-Hammer PDG22M0150TFFJ Molded Case Circuit Breaker
- 150A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22M0150TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22M0150TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

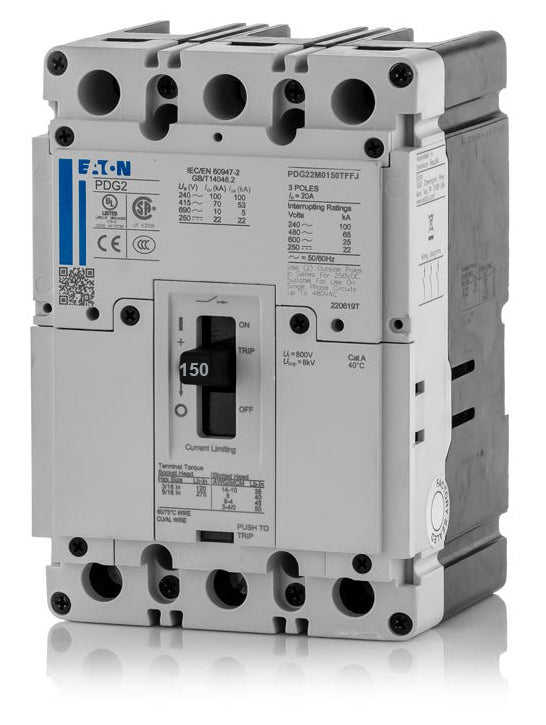

Eaton / Cutler-Hammer PDG22M0150TFFJ - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22M0125TFFJ
125A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0125TFFL
125A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0200TFFL
200A 2 Pole Molded Case Circuit Breaker
Description
Rated for 150A, this Frame 2 molded case circuit breaker delivers robust power distribution control for industrial environments. The PDG22M0150TFFJ utilizes a fixed thermal-magnetic trip unit with long-time and instantaneous (LI) protection. Designed for panel mount configurations, it integrates into Eaton Power Defense enclosures and switchboards. It also functions as a direct cross-reference for legacy HFD2150 breakers. This 65kAIC rated unit includes standard line and load terminals.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG22M0150TFFJ |
| Series | PDG2 |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Enclosures, Switchboards, Panelboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator, DIN Rail Adapter |
|---|---|
| Accessories | Standard Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
6 answersIs the PDG22M0150TFFJ a direct replacement for older Eaton Series C F-Frame breakers?
Yes, the Power Defense Frame 2 (PDG2) series is designed to replace legacy Series C F-Frame breakers, such as FD and HFD models, with the same electrical ratings. However, because the physical mounting arrangement differs, updated Eaton mounting hardware is required for installation.
Are the terminal lugs on the PDG22M0150TFFJ compatible with older Series C breakers?
Yes, Eaton Power Defense Frame 2 (PDG2) breakers are designed to use the same terminal lugs as legacy Series C F-Frame breakers, allowing for terminal interchangeability between the two frames.
What does "TFF" indicate in the PDG22M0150TFFJ catalog number?
In the Eaton Power Defense nomenclature, "TFF" signifies a thermal-magnetic trip unit with fixed thermal and fixed magnetic settings. This means the long-time and instantaneous trip functions are factory-set and cannot be adjusted in the field.
What does the "M" signify in the PDG22M0150TFFJ part number?
The "M" designates the breaker's interrupting rating tier. For Frame 2 Power Defense breakers, this corresponds to a 65kAIC rating at 480VAC.
How do I read the first section of the PDG22M0150TFFJ catalog number?
"PDG" stands for Power Defense Globally Rated. The first "2" indicates it is a Frame 2 breaker, and the second "2" indicates it is a 2-pole device.
Does the PDG22M0150TFFJ feature an Arcflash Reduction Maintenance System (ARMS)?
No, the Arcflash Reduction Maintenance System is only available on Power Defense breakers equipped with advanced Power Xpert Release (PXR) electronic trip units. The PDG22M0150TFFJ uses a standard thermal-magnetic trip unit.
