Eaton / Cutler-Hammer PDG23F0090TFFL Molded Case Circuit Breaker
- 90A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23F0090TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23F0090TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

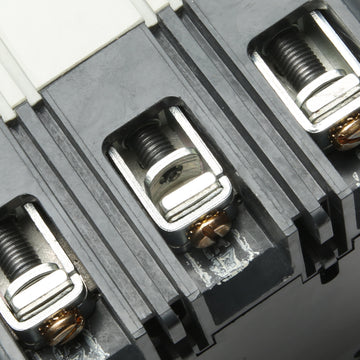

Eaton / Cutler-Hammer PDG23F0090TFFL - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23G0090TFFJ
90A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0090TFFJ
90A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0090TFFL
90A 3 Pole Molded Case Circuit Breaker
Description
Belonging to the Power Defense family, this 90A MCCB handles demanding commercial applications. The PDG2 frame incorporates current-limiting technology to minimize fault energy. Integration is seamless for Eaton enclosures and panelboards. Featuring load-side lugs, it serves as a drop-in upgrade for discontinued EGE3090FFG and FDB3090 components. Rated 25kAIC at 480VAC, the unit utilizes a fixed thermal-magnetic trip for consistent long-time and instantaneous (LI) defense.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Standard Terminals Load Only (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | RoHS Compliant |
Product FAQs
7 answersWhich Eaton enclosures and panelboards are compatible with the PDG23F0090TFFL?
This Frame 2 breaker is designed for use in Eaton Power Defense panelboards, switchboards, and compatible enclosures that accept bolt-on molded case circuit breakers.
What wire sizes and materials are supported by the standard lugs on the PDG23F0090TFFL?
The standard lugs accept aluminum or copper conductors ranging from 14 AWG to 1/0 AWG. Always verify proper torque specifications during installation as outlined by Eaton.
How does the PDG23F0090TFFL mount into a panel?
This breaker features a bolt-on connection type, requiring it to be physically bolted to the busbar in compatible Eaton Power Defense panelboards and switchboards.
What does the TFFL suffix in the PDG23F0090TFFL catalog number indicate?
The TFFL suffix indicates the breaker is equipped with a thermal-magnetic trip unit featuring fixed thermal and fixed magnetic settings, along with standard line and load lug terminals.
Are the trip settings adjustable on the PDG23F0090TFFL?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip functions are factory set and cannot be adjusted in the field.
Can the PDG23F0090TFFL replace older Eaton or Cutler-Hammer Frame 2 breakers?
Yes, the Power Defense PDG2 series is the modern replacement for legacy Eaton and Cutler-Hammer 90-amp Frame 2 breakers. Verify your panel mounting type and required interrupting ratings before upgrading.
What type of protection does the PDG23F0090TFFL provide?
It provides standard thermal-magnetic protection, which includes a long-time response for overloads and an instantaneous response for short circuits, protecting downstream wiring and equipment.
