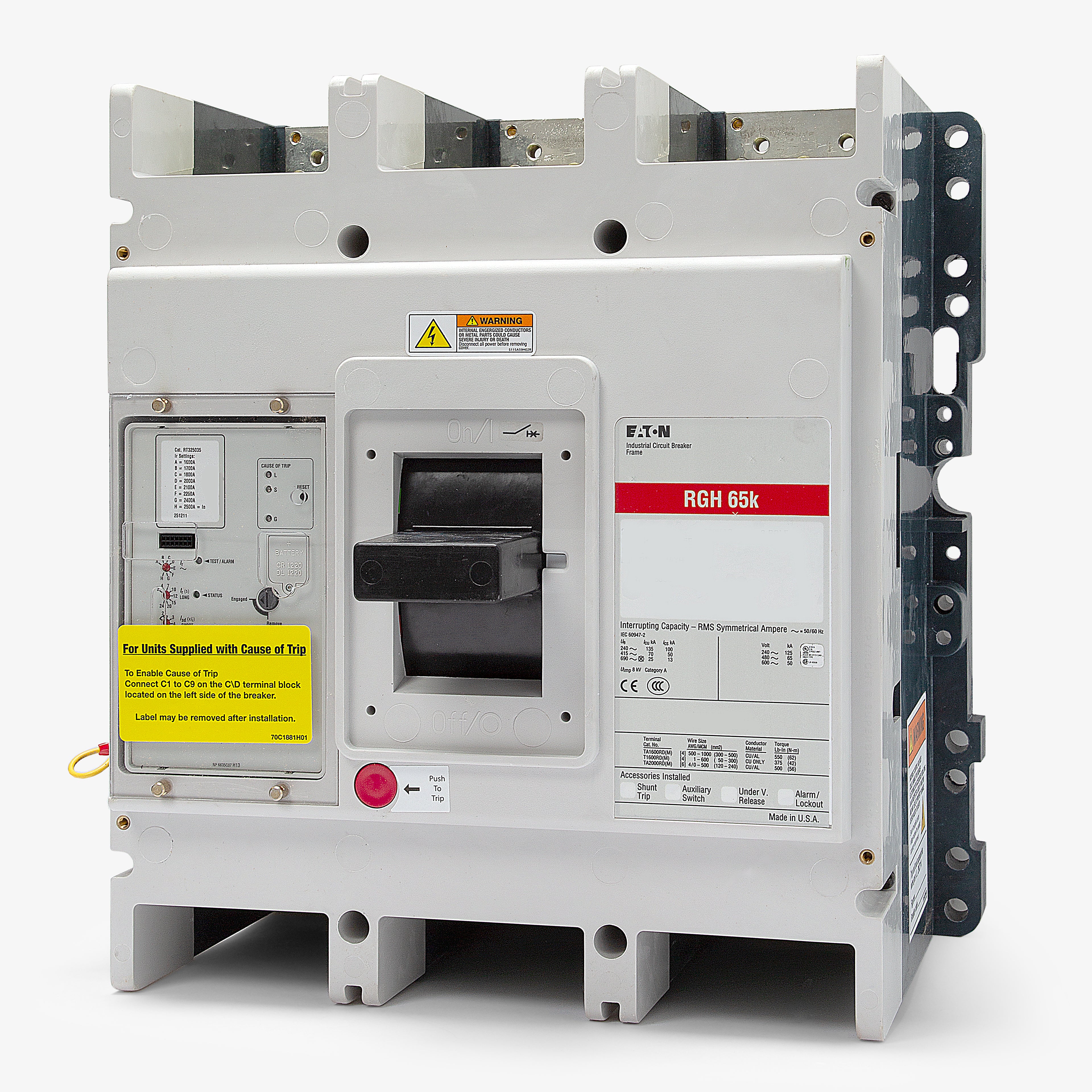

Eaton / Cutler-Hammer RGH316035E Molded Case Circuit Breaker
- 1600A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
RGH316035E
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
RGH316035E
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer RGH316035E - 1600A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerRGH316033E
1600A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerRGH316036E
1600A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerRGH316038E
1600A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial power systems, this 1600A Series G MCCB delivers advanced circuit protection. The Eaton RGH316035E is a 3-pole, RG-frame breaker designed to handle heavy electrical loads in industrial environments. It installs into Eaton Pow-R-Line switchboards and motor control centers using a standard unit-mount configuration with imperial tapped terminals. The integrated Digitrip 310+ electronic trip unit provides adjustable long-time, short-time, and ground fault (LSG) protection.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | RGH316035E |
| Series | RGH |
| Amperage | 1600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC |
| Amperage Range | 800-1600A |
|---|
| Frame Type | RG |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Eaton Pow-R-Line Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSG |
| Trip Function | Long-Time, Short-Time, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Imperial Tapped Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | 80% Rated, Reverse Feed, True RMS Sensing |
Product FAQs
5 answersWhat equipment is the Eaton RGH316035E compatible with?
This RG frame breaker is designed for use in Eaton Pow-R-Line switchboards and motor control centers. It features a unit mount, bolt-on configuration for direct integration into these systems.
What adjustability does the LSG electronic trip unit provide?
The LSG designation indicates the trip unit includes adjustable Long-Time, Short-Time, and Ground-Fault protection. This allows precise coordination with downstream devices and provides integrated ground fault monitoring without requiring external relays.
Does the RGH316035E come with standard mechanical lugs?
No, this breaker is configured with stud or tapped pad terminals. If you are not connecting it directly to busbars, you will need to source the appropriate cable lugs separately based on your wire size and material.
Is the RGH316035E part of the Eaton Series C or Series G family?
This breaker belongs to the Eaton Series G family. Series G breakers are known for their compact footprint compared to older legacy frames while offering high interrupting ratings.
Does the integrated ground fault protection require a neutral sensor?
If you are installing this breaker in a 3-phase, 4-wire system, an external neutral current sensor is required to ensure the ground fault protection operates correctly and prevents nuisance tripping.
