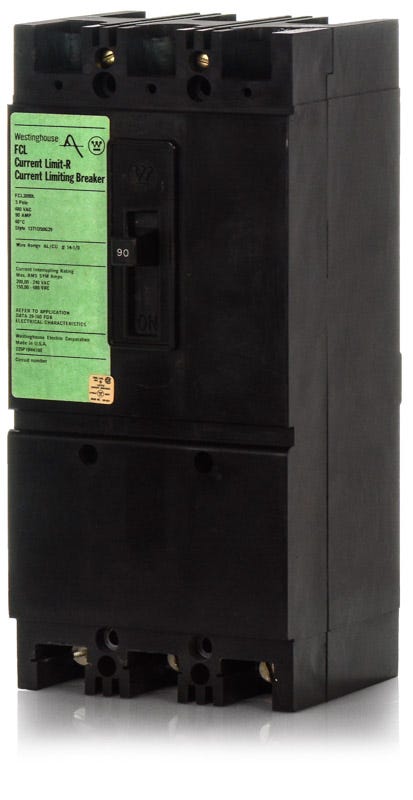

Eaton / Cutler-Hammer FCL3090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Unit Mount
Quantity

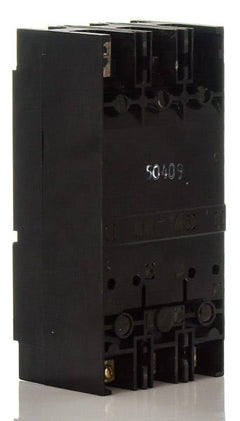

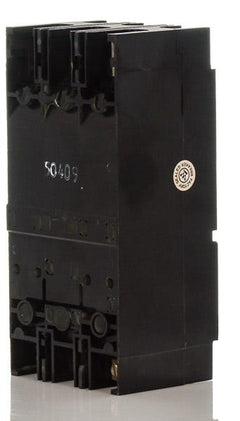

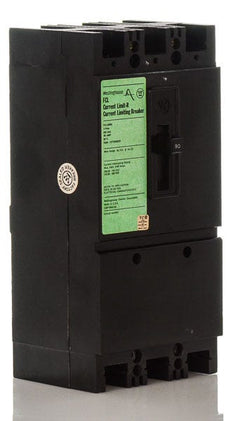

Eaton / Cutler-Hammer FCL3090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Designed for commercial and industrial facilities, the Eaton FCL3090 is a 90A, 3-pole current-limiting molded case circuit breaker. It provides advanced thermal-magnetic protection against severe electrical faults. This F-Frame unit mounts into Eaton Series C panelboards and motor control centers. It serves as a high-performance solution, noting that its replacement (the FDC3090) offers a lower 100kAIC rating at 480V.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FCL3090-R |
| Series | FCL |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 150kA @ 480VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Current Limiter |
| Standards | UL 489, CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated |
| Special Features | Current Limiting |
Product FAQs
6 answersWhat equipment is the Eaton FCL3090 compatible with?
The FCL3090 is a unit-mount F-Frame breaker designed for use in Eaton Series C panelboards, switchboards, and motor control centers.
What does the current limiting designation mean for the FCL3090?
As a current-limiting breaker, the FCL3090 clears severe electrical faults extremely fast. This reduces the let-through energy and peak current, protecting downstream equipment from thermal and magnetic stress. It provides a high interrupting capacity of 150kA at 480VAC.
What wire sizes and materials are supported by the FCL3090 lugs?
The standard lugs on the FCL3090 accept 14 AWG to 1/0 AWG wire. They are rated for both copper and aluminum conductors, providing flexibility during installation.
Is the FCL3090 a direct replacement for older Westinghouse F-frame breakers?
Yes. Eaton acquired the Westinghouse distribution equipment division, and the FCL3090 is part of the Series C F-Frame family. It directly replaces legacy Westinghouse FCL breakers with the same specifications.
Can the FDC3090 be used to replace the FCL3090?
While the FDC3090 is the modern Series C replacement for the FCL3090, it has a lower interrupting rating at 480VAC (100kAIC compared to the FCL3090 rating of 150kAIC). You must verify that your system available fault current does not exceed 100kA at 480VAC before substituting the FDC3090.
What type of trip protection does the FCL3090 provide?
The FCL3090 uses a thermal-magnetic trip unit with LI (Long-Time and Instantaneous) functions. It features fixed thermal protection for overloads and fixed magnetic protection for short circuits.
