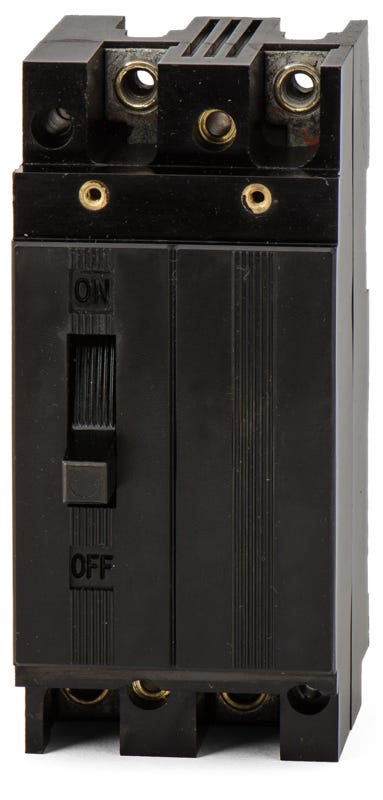

Eaton / Westinghouse EA2015 Molded Case Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Eaton / Westinghouse
EA2015
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
EA2015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse EA2015 - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items

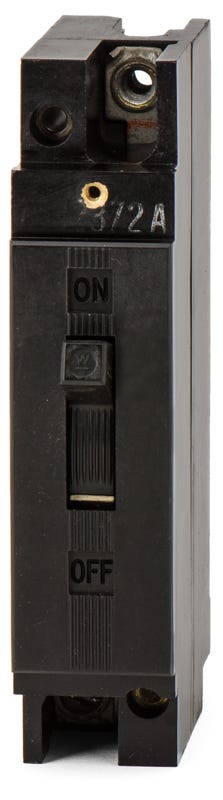

15A 1 Pole Molded Case Circuit Breaker

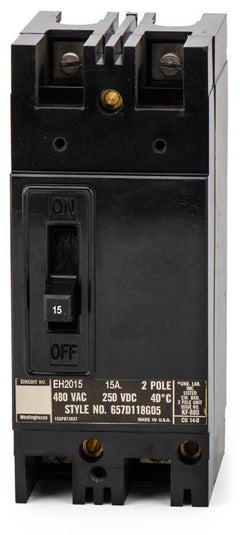

15A 2 Pole Molded Case Circuit Breaker
Description
Operating as a crucial safety component, this 15A, 2-pole molded case breaker protects commercial circuits from overloads. It features standard interrupting capacity for 240VAC systems. This unit is engineered specifically for compatibility with older Westinghouse and Eaton retrofit panelboards. Utilizing this exact replacement part avoids the complexity of adapting the newer EHD2015 cross-reference model.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EA2015-R |
| Series | EA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Frame Type | EA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse Panelboards, Eaton Panelboards (Retrofit) |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Standard Interrupting Capacity, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards accept the EA2015 circuit breaker?
This breaker installs into legacy Westinghouse panelboards, AB De-Ion panels, and Eaton Pow-R-Line retrofit panelboards configured for E-Frame breakers.
What is the modern replacement for the Westinghouse EA2015?
The Eaton EHD2015 serves as the modern cross-reference for this legacy breaker. Utilizing the exact EA2015 replacement can help avoid the complexity of adapting the newer EHD model to older infrastructure.
Are lugs included with the EA2015 breaker?
Yes, this unit comes equipped with load side lugs designed to accommodate wiring from 14 AWG to 1/0 AWG.
Is the EA2015 suitable for DC applications?
Yes, in addition to its 240VAC rating, this thermal magnetic breaker is rated for use in 125/250VDC systems with a 5kA interrupting capacity.
Are the trip settings adjustable on the EA2015?
No, this breaker features fixed thermal and fixed magnetic trip functions for long-time and instantaneous protection.
