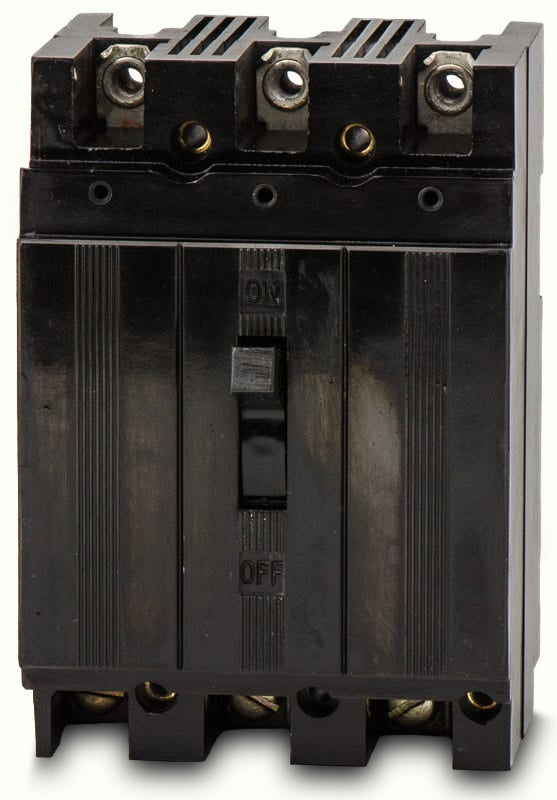

Eaton / Westinghouse EA3060 - 60A 3 Pole Molded Case Circuit Breaker
Free Shipping Over $99

Eaton / Westinghouse EA3060 Molded Case Circuit Breaker

  • 60A
  • 3 Pole
  • Bolt-On
Eaton / Westinghouse EA3060
Molded Case Circuit Breaker
Brand Eaton / Westinghouse
SKU EA3060
Select Item Condition
Earn 296 SuperPoints
  • 60A
  • 3 Pole
  • Bolt-On

Quantity

Bulk Pricing
Send your parts list for a volume quote.
Request Pricing
Eaton / Westinghouse EA3060 - 60A 3 Pole Molded Case Circuit Breaker

Eaton / Westinghouse EA3060 - 60A 3 Pole Molded Case Circuit Breaker

Re-Certified

$296.24 No Stock

Quantity

Similar Items

Description SpecificationsProduct FAQs SuperClub Warranties Shipping Reviews 5.0 (1)

Description

Designed for commercial distribution networks, the Eaton EA3060 provides 60 amps of reliable thermal-magnetic protection. This 3-pole molded case circuit breaker is engineered to handle 240VAC and 125/250VDC applications with a standard 10kAIC rating. It offers a drop-in solution for legacy Westinghouse CDP and FDP panelboards, ensuring a proper fit without modifications. The breaker also integrates into Eaton Pow-R-Line 3 systems and is cross-referenced to the EHD3060 replacement model.

Specifications

Key specifications
Brand Eaton / Westinghouse
Series EA
Amperage 60A
Poles 3
Mounting Style Bolt-On
Voltage 240VAC, 125/250VDC
Phase 3
AIC Rating 10kA @ 240VAC, 5kA @ 125/250VDC
Fit and installation
Frame Type EA
Terminal Type Lugs
For Use With Westinghouse CDP Panelboards, Westinghouse FDP Panelboards, Eaton Pow-R-Line 3 Panelboards
Wire Gauge 14-1/0 AWG
Max Wire 1/0 AWG
Min Wire 14 AWG
Protection and operation
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Standards and features
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch
Accessories Load Side Lugs Included
Standards NEMA AB-1, UL 489
Approval UL
Temp Rating 40C
Construction Features Standard Interrupting Capacity

Product FAQs

6 answers
Is the Westinghouse EA3060 still in active production?

The EA frame is a legacy Westinghouse design that is no longer manufactured. The Eaton EHD3060 serves as the modern, direct cross-reference replacement and shares the same physical footprint and mounting configuration.

Which panelboards are compatible with the EA3060?

This bolt-on breaker is designed as a drop-in replacement for legacy Westinghouse CDP and FDP distribution panels. It is also fully compatible with modern Eaton Pow-R-Line 3 (PRL3) panelboards without requiring modifications.

Is the EA3060 suitable for direct current (DC) applications?

Yes, in addition to its standard AC ratings, this thermal-magnetic breaker is rated for DC systems. It provides an interrupting capacity of 5kA at 125/250VDC.

Are the trip settings on the EA3060 adjustable?

No, the EA3060 features a fixed thermal and fixed magnetic trip unit. Both the long-time (overload) and instantaneous (short-circuit) trip functions are factory-set and cannot be modified in the field.

Does the EA3060 require separate load-side lugs?

No, the breaker comes equipped with factory-installed load-side lugs that accommodate wire sizes from 14 AWG up to 1/0 AWG.

Does the EA3060 provide ground fault protection?

No, the EA3060 is a standard thermal-magnetic breaker that provides only long-time and instantaneous protection (LI). It does not include ground fault or equipment protection features.
