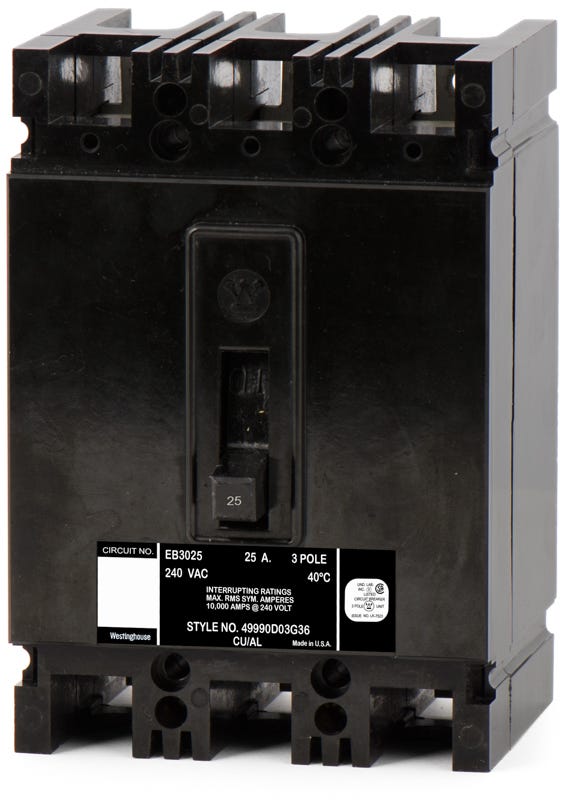

Eaton / Westinghouse EB3025 Molded Case Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
EB3025
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
EB3025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse EB3025 - 25A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
35A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy Westinghouse line, the EB3025 is a 25A, 3-pole molded case circuit breaker. Built for commercial applications, it provides reliable protection for aging electrical systems. It mounts into compatible Westinghouse and Eaton panelboards using a secure bolt-on connection. When this specific frame is unavailable, it is replaced by the newer EHD3025 model. Rated for 10kAIC at 240VAC, the breaker utilizes thermal-magnetic trip technology for standard LI protection.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EB3025-R |
| Series | EB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Panelboards, Eaton Panelboards |
| Wire Gauge | 14-10 AWG (Al/Cu) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Non-Interchangeable Trip, Standard Interrupting Capacity |
Product FAQs
5 answersWhat panelboards accept the EB3025 circuit breaker?
The EB3025 is a bolt-on E-Frame breaker designed to mount into compatible legacy Westinghouse and Eaton panelboards.
What is the modern replacement for the legacy EB3025 breaker?
If the original EB3025 is unavailable, the newer Eaton EHD3025 is the direct E-Frame replacement model for 25A, 3-pole applications.
Is the EB3025 suitable for direct current (DC) circuits?
Yes, this breaker is rated for use in DC systems up to 250VDC, providing a 5kA interrupting capacity for substantially non-inductive DC circuits.
What wire gauge is required for the EB3025 load lugs?
The factory-installed load lugs accept 14 AWG to 10 AWG conductors and are rated for both aluminum and copper (Al/Cu) wiring.
Are the trip settings on the EB3025 adjustable?
No, the EB3025 features a fixed thermal-magnetic trip unit. Both the long-time (thermal) and instantaneous (magnetic) trip functions are factory set and non-interchangeable.
