Eaton / Westinghouse EHB1025 Molded Case Circuit Breaker
- 25A
- 1 Pole
- Bolt-On
Quantity

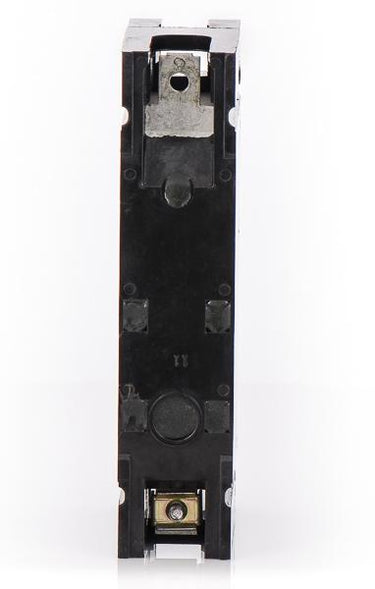

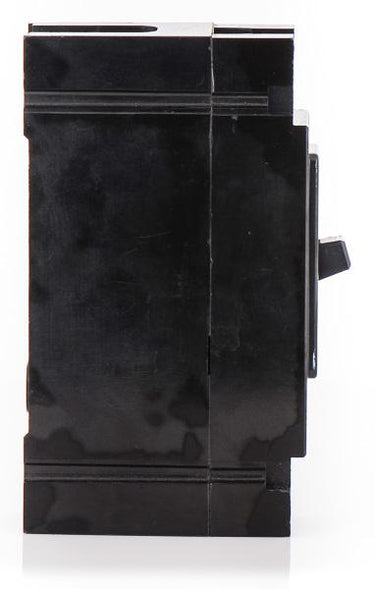

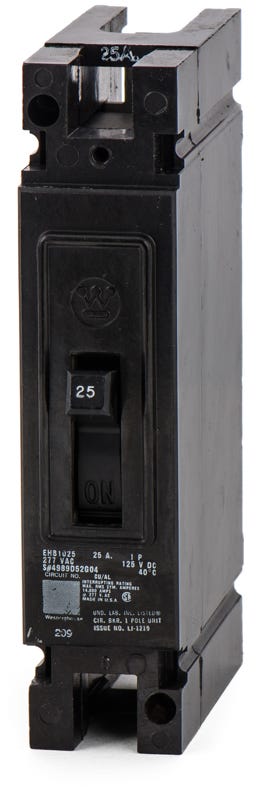

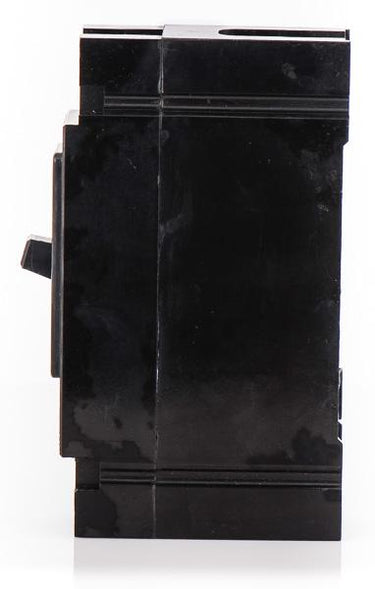

Eaton / Westinghouse EHB1025 - 25A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
A drop-in replacement for aging commercial infrastructure, the Eaton EHB1025 is a 25-amp, single-pole molded case circuit breaker. It is specifically designed for industrial applications requiring reliable thermal-magnetic protection. This bolt-on MCCB mounts into classic NEHB panelboards, eliminating the need for retrofits. Rated for 14 kAIC at 277VAC and 65 kAIC at 120VAC, it features a non-interchangeable trip and is HACR and SWD rated for switching duty.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EHB1025-R |
| Series | EHB |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | EHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Visual Trip Indicator, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat panelboards are compatible with the EHB1025 circuit breaker?
The EHB1025 is a bolt-on breaker designed for use in legacy Westinghouse panelboards that accept E-Frame breakers.
Is the EHB1025 obsolete, and what is the modern replacement?
Yes, the EHB series is a legacy product that has been discontinued by Eaton. It has been replaced by modern Eaton F-Frame circuit breakers, such as the EHD series, which serve as direct substitutes for legacy Westinghouse panelboards.
Can the EHB1025 be used in DC electrical systems?
Yes, this thermal-magnetic breaker is rated for use in DC applications up to 125VDC, where it provides a 10kA interrupting capacity.
Does the EHB1025 require a retrofit kit to install in older Westinghouse panels?
No, the EHB1025 is an exact fit for legacy Westinghouse panelboards designed for E-Frame bolt-on breakers, eliminating the need for retrofit kits or mounting adapters.
Are Eaton and Westinghouse EHB breakers the same?
Yes. Eaton acquired Westinghouse's distribution equipment division, so EHB breakers manufactured under the Eaton, Cutler-Hammer, or Westinghouse brands are physically and functionally identical.
Are the trip settings adjustable on the EHB1025?
No, the EHB1025 features a non-interchangeable trip unit with fixed thermal and fixed magnetic settings for long-time and instantaneous overcurrent protection.
