Eaton / Westinghouse EHB2060 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Eaton / Westinghouse
EHB2060
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
EHB2060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

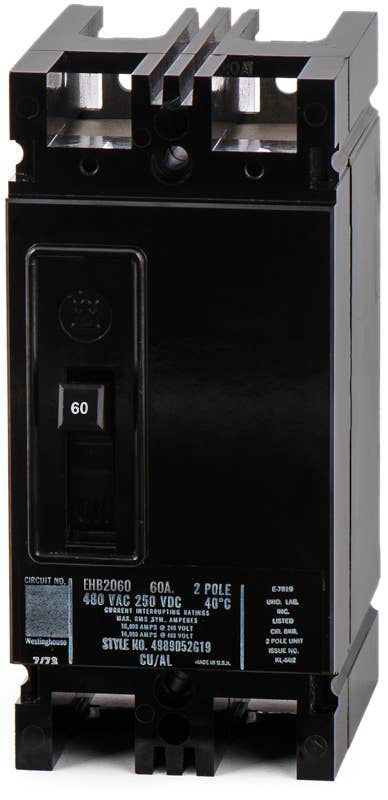

Eaton / Westinghouse EHB2060-R - 60A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
15A 2 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
A drop-in replacement for legacy Westinghouse and Cutler-Hammer systems, the Eaton EHB2060 is a 60A, two-pole molded case circuit breaker. Built for commercial and industrial applications, it delivers reliable thermal-magnetic protection for critical branch circuits. This bolt-on MCCB installs into NEHB panelboards without the need for adapters. It serves as an exact cross-reference and is replaced by the EHD2060. Rated at 14 kAIC at 480Y/277VAC, the breaker features a non-interchangeable trip.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EHB2060-R |
| Series | EHB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC |
| Frame Type | EHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse NEHB Panelboards |
| Wire Gauge | 14-2 AWG (Cu/Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards accept the EHB2060 circuit breaker?
The EHB2060 is a bolt-on branch breaker specifically designed for installation in legacy Westinghouse NEHB panelboards.
Can I use an Eaton EHB2060 to replace an older Cutler-Hammer or Westinghouse EHB2060?
Yes. Because Eaton acquired both Cutler-Hammer and the Westinghouse distribution equipment line, EHB2060 breakers branded under any of these three names are physically and electrically identical drop-in replacements.
Is the EHB2060 still in active production?
No, the EHB frame is an obsolete legacy product. While exact replacements are often sourced through specialized distributors, Eaton's official replacement guides list the EHD2060 as the modern substitute.
Does the EHB2060 require special adapters to mount in an NEHB panel?
No adapters are required. This breaker features a direct bolt-on connection designed to mount directly to the bus of Westinghouse NEHB panelboards.
Are the trip settings on the EHB2060 adjustable?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time (overload) and instantaneous (short-circuit) trip functions are factory-set and non-adjustable.
Are the lugs on the EHB2060 rated for aluminum wire?
Yes, the factory-installed lugs are dual-rated for both copper and aluminum conductors ranging from 14 AWG to 2 AWG.
