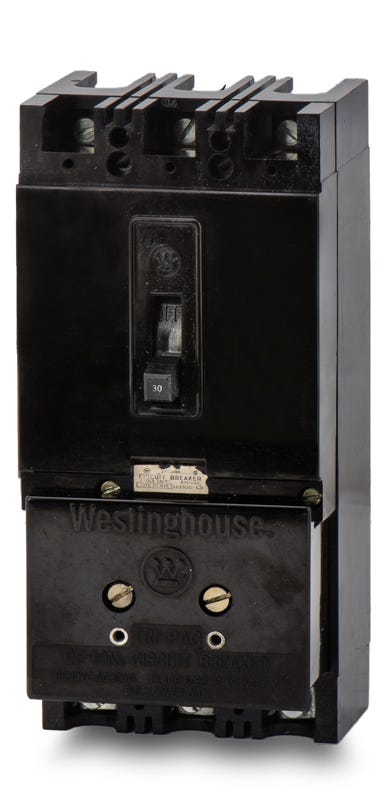

Eaton / Westinghouse FA3030P Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Quantity
Eaton / Westinghouse FA3030P - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Engineered to restore aging electrical infrastructure, the Eaton FA3030P is a 3-pole, 30A molded case circuit breaker. It delivers reliable protection for commercial facilities utilizing legacy equipment. This bolt-on MCCB installs into older Westinghouse panelboards, motor control centers, and Eaton Pow-R-Line C panels. It provides a perfect fit without requiring modifications. Featuring a 14kAIC rating at 480VAC, this breaker includes AB De-Ion arc quenching and reverse feed capabilities.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | FA3030P-R |
| Series | FA |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Panelboards, Motor Control Centers, Switchboards, Eaton Pow-R-Line C Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lug |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
5 answersWhich panelboards and enclosures are compatible with the FA3030P?
This bolt-on F-Frame breaker is designed to fit legacy Westinghouse panelboards, motor control centers, and switchboards. It is also compatible with Eaton Pow-R-Line C panelboards, allowing you to maintain existing infrastructure without panel modifications.
What type of wire can be used with the terminals on this breaker?
The included load side lugs are rated for both copper and aluminum conductors. They accept wire sizes ranging from 14 AWG to 1/0 AWG. Always verify proper wire sizing for a 30-amp circuit according to the National Electrical Code (NEC).
Is the FA3030P rated for direct current (DC) systems?
Yes, in addition to its AC ratings, this thermal-magnetic breaker is rated for DC applications up to 250VDC, delivering an interrupting capacity of 10kA.
Can the FA3030P be used in reverse feed applications?
Yes, this breaker is suitable for reverse feed or backfeed applications. When using it to backfeed a panel, you must install an approved retaining bracket or hold-down kit to secure the breaker in place and comply with safety regulations.
Is the Westinghouse FA series still in active production?
The FA3030P is a legacy component originally produced by Westinghouse and later by Eaton / Cutler-Hammer. While the original FA frame series has been superseded by newer designs, exact replacements are still available to service existing panels without requiring a complete system upgrade.
