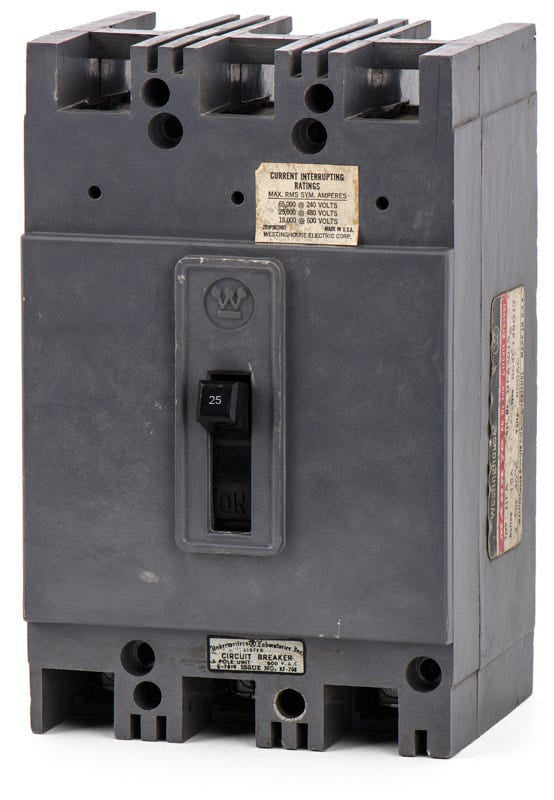

Eaton / Westinghouse HFA3025 Molded Case Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Quantity
Eaton / Westinghouse HFA3025 - 25A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Maintaining older industrial infrastructure is simple with the HFA3025, a 25A, 3-pole molded case circuit breaker. It offers a straightforward solution for facilities relying on classic distribution equipment. This bolt-on MCCB installs securely into Westinghouse Pow-R-Line panelboards and switchboards. As a cross-reference to the newer HFD3025, it provides an exact physical match for legacy enclosures. Delivering 25kAIC at 480V, it relies on fixed thermal-magnetic trip technology.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Series | HFA |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Pow-R-Line Panelboards, Motor Control Centers, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersIs the HFA3025 manufactured by Eaton or Westinghouse?
The HFA series was originally developed by Westinghouse. Eaton acquired the Westinghouse electrical distribution business and supports these legacy H-Frame breakers under the Eaton and Cutler-Hammer brands.
What equipment is the HFA3025 designed to be installed in?
This legacy H-Frame breaker is engineered for use in Westinghouse Pow-R-Line panelboards, motor control centers, and switchboards.
Are the thermal or magnetic trip settings adjustable on the HFA3025?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip functions cannot be adjusted in the field.
What wire types and sizes are compatible with the factory lugs?
The standard lugs on this breaker accept 14 AWG through 1/0 AWG conductors and are rated for both copper and aluminum wire.
Can the HFA3025 be used in direct current (DC) systems?
Yes, in addition to its AC ratings, this breaker is rated for use in 250VDC systems with a 10kA interrupting capacity.
Will this breaker fit in a standard residential plug-on load center?
No, the HFA3025 is a bolt-on molded case circuit breaker designed for commercial and industrial panelboards. It cannot be installed in plug-on load centers.
Does the HFA3025 provide ground fault protection?
No, it is equipped with a standard thermal magnetic trip unit for overload and short circuit protection. It does not include equipment ground fault or personnel ground fault protection.
