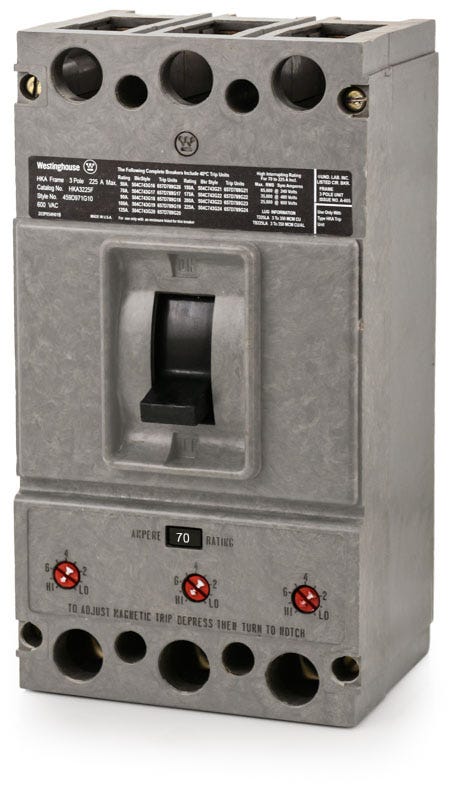

Eaton / Westinghouse HKA3070 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
Quantity
Eaton / Westinghouse HKA3070 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Built for legacy industrial applications, the Eaton HKA3070 delivers 70 amps of thermal-magnetic protection in a 3-pole configuration. This Mark 75 series breaker utilizes fixed thermal and adjustable magnetic trip settings. Designed to fit existing Westinghouse panelboards, this bolt-on MCCB eliminates the need for retrofit adapters. While the JD3070 is the modern substitute, using this exact replacement prevents mounting modifications.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | HKA3070-R |
| Series | HKA |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | #4 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | #4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Interchangeable Trip Unit, HACR Rated, Reverse Feed, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat panelboards are compatible with the HKA3070 breaker?
This K-frame breaker is designed for use in legacy Westinghouse, Cutler-Hammer, and Eaton panelboards, switchboards, and motor control centers.
Are Eaton, Cutler-Hammer, and Westinghouse HKA3070 breakers the exact same?
Yes. Eaton acquired the Westinghouse distribution equipment business and integrated it into their Cutler-Hammer line. An HKA3070 breaker has the same physical dimensions and ratings regardless of which of these three brands is printed on the label.
What does the H in the HKA prefix indicate?
The H designates this as a high-interrupting capacity breaker within the Mark 75 family. It provides higher fault current protection compared to standard KA frame breakers.
Can the trip unit on the HKA3070 be swapped out?
Yes, this breaker features an interchangeable thermal-magnetic trip unit. This allows panel builders to change the amperage rating by swapping the trip unit while keeping the existing K-frame installed.
How does the adjustable magnetic trip work on this breaker?
The HKA3070 features a fixed thermal element for overload protection and an adjustable magnetic element for short-circuit protection. The magnetic trip threshold can be adjusted using the dial on the front of the trip unit to coordinate with other protective devices.
Does this breaker include both line and load side lugs?
This breaker is supplied with load side lugs. Because it is a bolt-on breaker designed for panelboards and switchboards, the line side typically bolts directly to the bus bar and does not require standard wire lugs.
