Eaton / Westinghouse JA2225 Molded Case Circuit Breaker
- 225A
- 2 Pole
- Bolt-On
Quantity

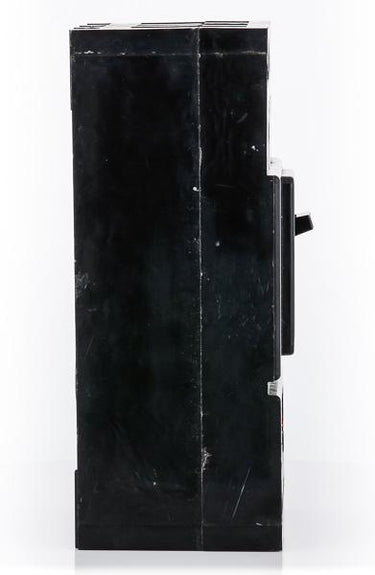

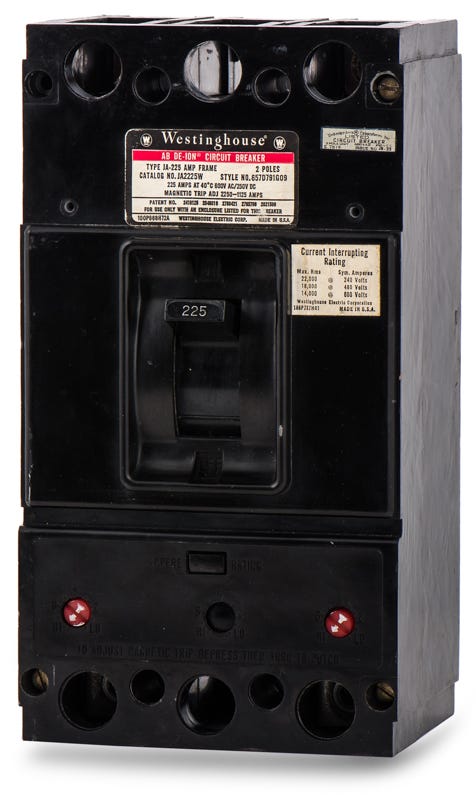

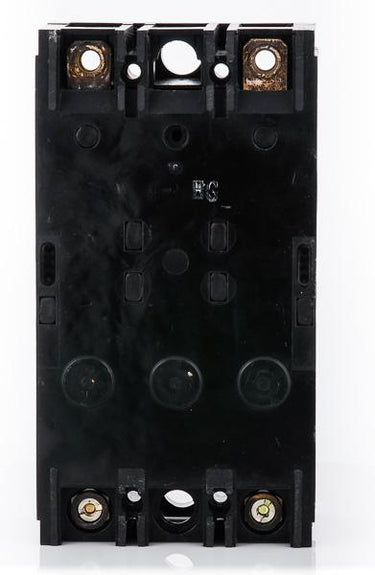

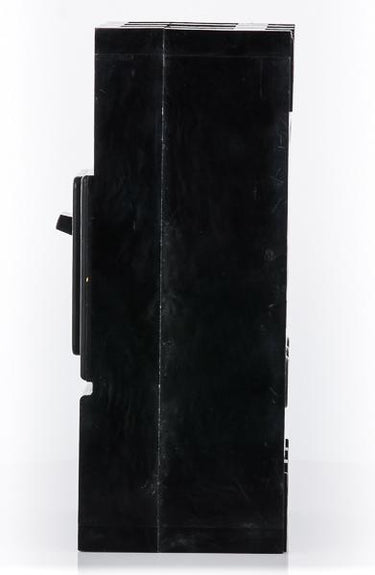

Eaton / Westinghouse JA2225 - 225A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Part of the legacy Westinghouse J-Frame family, the JA2225 delivers reliable thermal-magnetic protection for commercial and industrial applications. This 225-amp, two-pole unit features a non-interchangeable trip unit housed in a three-pole frame. It mounts into older Westinghouse panelboards, switchboards, and motor control centers. As a discontinued model, it serves as an exact fit for systems where the newer JDB2225 substitute might require modifications.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | JA2225-R |
| Series | JA |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | JA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Lugs |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, 2-Pole in 3-Pole Housing |
Product FAQs
4 answersWhat equipment is compatible with the JA2225 circuit breaker?
The JA2225 is a legacy J-Frame breaker designed to mount into older Westinghouse panelboards, switchboards, and motor control centers.
What is the modern replacement for the discontinued JA2225?
The Eaton JDB2225 serves as the modern substitute. Note that installing a newer J-Frame breaker into vintage Westinghouse CDP or FDP panelboards often requires a specific retrofit hardware kit to adapt the bus connections.
Can the trip unit on the JA2225 be swapped out for a different rating?
No, the JA2225 features a non-interchangeable trip unit. While the magnetic trip setting is adjustable, the thermal rating is fixed and the unit itself cannot be removed from the breaker frame.
Does the 2-pole JA2225 require a 2-pole or 3-pole space in the panel?
The JA2225 is built with a 2-pole configuration but is housed inside a standard 3-pole J-Frame footprint. It will occupy the space of a 3-pole breaker in your panelboard or switchboard.
