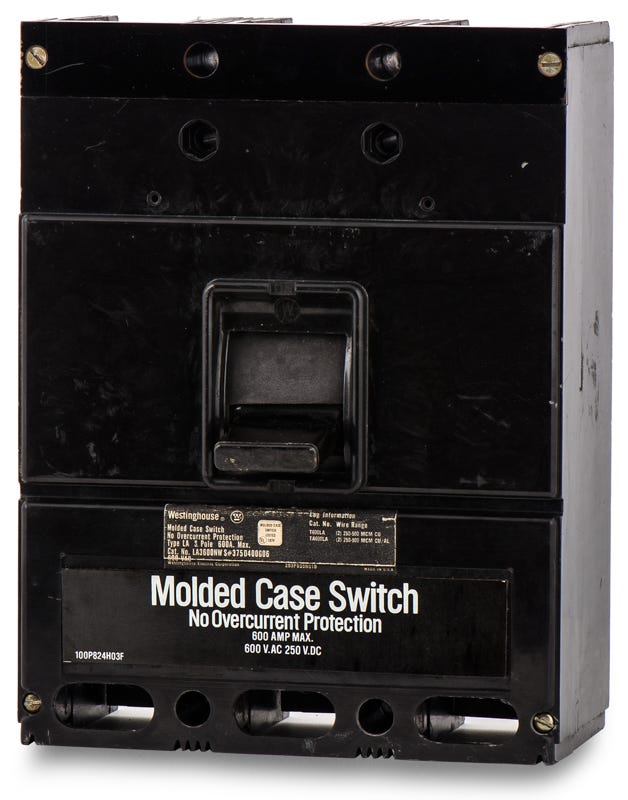

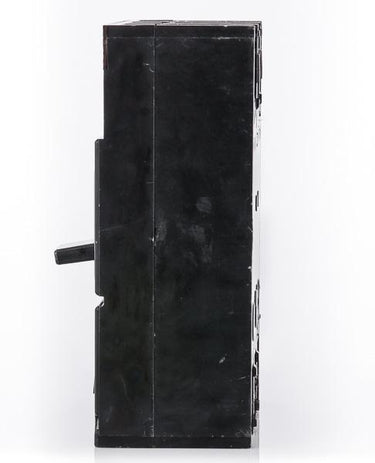

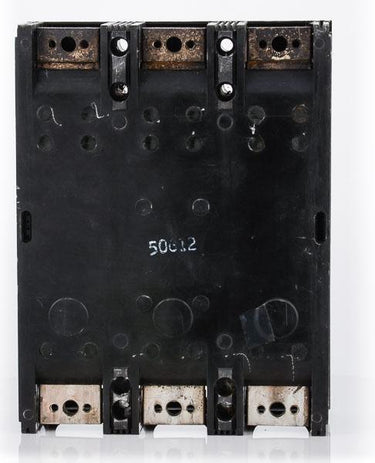

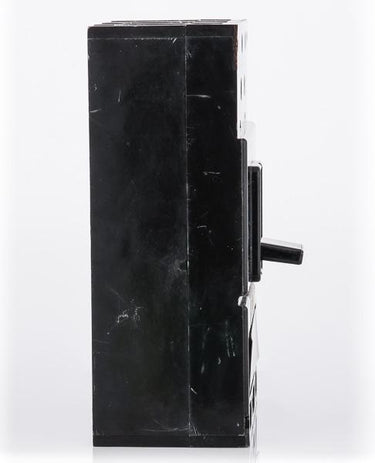

Eaton / Westinghouse LA3600NW - 600A 3 Pole Molded Case Switch
Re-Certified
Quantity
Description
Engineered for commercial power systems, the LA3600NW operates strictly as a molded case switch. It provides manual load isolation with a high-magnetic trip designed exclusively for internal self-protection. This three-pole disconnect mounts into older Westinghouse and Cutler-Hammer switchboards. Serving as a reliable L-Frame replacement, it restores functionality and is cross-referenced with the LD3600K. Handling 600A up to 600VAC, it ensures safe maintenance without overload protection.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | LA3600NW-R |
| Series | LA |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse / Eaton Panelboards and Switchboards |
| Wire Gauge | (1) 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Not Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), High-Magnetic, Non-Interchangeable Trip |
