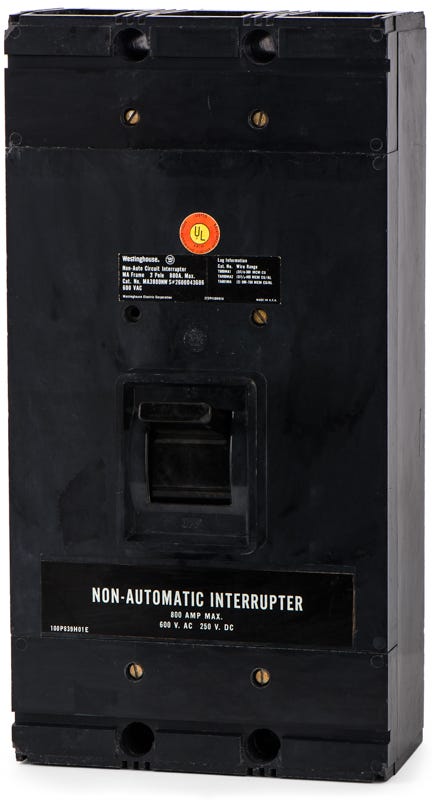

Eaton / Westinghouse MA3800NW - 800A 3 Pole Molded Case Switch
Re-Certified
Quantity
Description
Designed to operate strictly as a disconnect, this 800-amp three-pole component ensures safe manual switching for industrial applications. The bolt-on configuration installs easily into classic Westinghouse motor control centers and PRL4 panelboards without requiring modern adapters. Delivering a 30kA withstand rating at 480VAC, this legacy M-frame switch provides reliable isolation. Facility managers often utilize this exact match before transitioning to the newer MDL3800K series.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | MA3800NW-R |
| Series | MA |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse PRL4 Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Without Terminals |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic |
