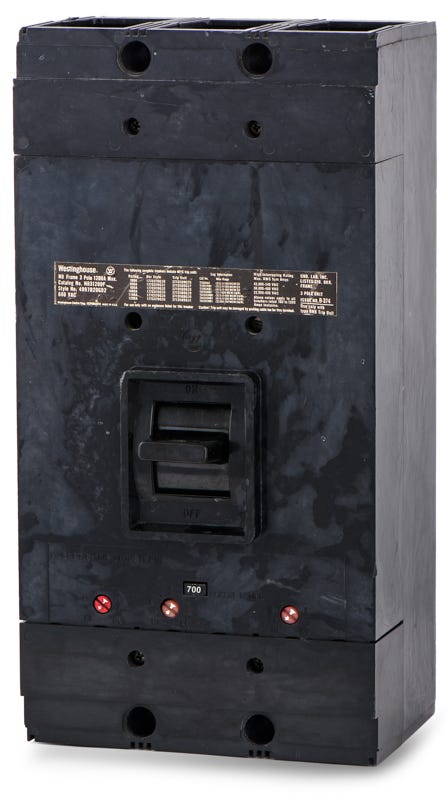

Eaton / Westinghouse NB3700 Molded Case Circuit Breaker
- 700A
- 3 Pole
- Bolt-On
Quantity
Eaton / Westinghouse NB3700 - 700A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Engineered to support aging electrical infrastructure, the Eaton NB3700 provides 700A of thermal-magnetic protection. This legacy molded case circuit breaker features an interchangeable trip unit for commercial facilities. The bolt-on design mounts securely into Westinghouse PRL4 panelboards and switchboards. It serves as a drop-in substitute for HNB3700 and ND3700 units, ensuring a precise fit without custom mounting hardware.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | NB3700-R |
| Series | NB |
| Amperage | 700A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse PRL4 Panelboards, Switchboards |
| Wire Gauge | (3) 3/0 AWG - 400 kcmil |
| Max Wire | 400 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Not Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit |
Product FAQs
6 answersWhat panelboards are compatible with the NB3700 circuit breaker?
The NB3700 is designed for bolt-on installation in Westinghouse PRL4 panelboards and compatible switchboards.
Can the NB3700 replace other legacy Westinghouse breakers?
Yes, the NB3700 serves as a direct drop-in substitute for HNB3700 and ND3700 units without requiring custom mounting hardware.
What wire sizes are accepted by the lugs on the NB3700?
The standard lugs accept three conductors per phase, ranging from 3/0 AWG to 400 kcmil.
Is the NB3700 rated for DC applications?
Yes, this breaker is rated for up to 250VDC with a 20kA interrupting capacity, in addition to its standard AC voltage ratings.
Does the NB3700 feature adjustable trip settings?
Yes, it features a thermal magnetic trip unit with a fixed thermal element for long-time protection and an adjustable magnetic element for instantaneous short-circuit protection.
Are Eaton and Westinghouse NB3700 breakers the same?
Yes. Eaton acquired the Westinghouse distribution equipment division. Eaton, Cutler-Hammer, and Westinghouse NB3700 breakers share the exact same physical and electrical specifications.
