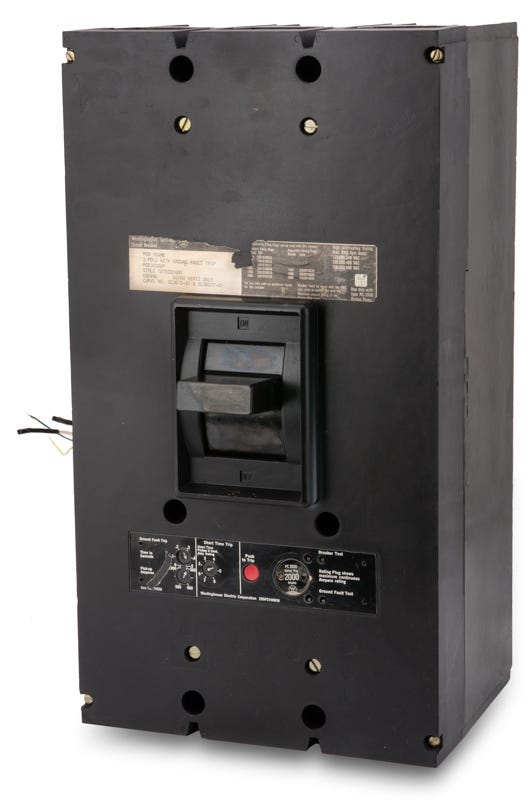

Eaton / Westinghouse PCG32000 Molded Case Circuit Breaker
- 2000A
- 3 Pole
- Bolt-On
Quantity
Eaton / Westinghouse PCG32000 - 2000A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Part of the legacy PC frame family, the Eaton PCG32000 delivers robust power distribution for industrial facilities. This 2000A molded case circuit breaker utilizes a solid-state trip unit for precise overcurrent protection. Designed for older Westinghouse and Cutler-Hammer switchgear, this bolt-on breaker serves as an exact replacement for aging infrastructure. Rated 100kAIC at 480V, the unit includes adjustable long-time, short-time, and ground fault (LSG) sensing capabilities.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | PCG32000 |
| Series | PCG |
| Amperage | 2000A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 100kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton / Westinghouse Switchboards, Switchgear |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSG |
| Trip Function | Long-Time, Short-Time, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Lug Kits |
|---|---|
| Accessories | 2000A Rating Plug |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | 100% Rated, Reverse Feed, Ground Fault Protection, Trip-Free Mechanism |
Product FAQs
4 answersWhat equipment is the PCG32000 circuit breaker designed to fit?
The PCG32000 is a legacy PC-frame breaker designed for use in older Eaton, Cutler-Hammer, and Westinghouse switchboards and switchgear.
What protection functions does the LSG trip unit provide?
The solid-state electronic trip unit features LSG functions, which provide adjustable Long-Time, Short-Time, and Ground-Fault sensing for precise coordination and overcurrent protection in industrial power systems.
Can the Eaton PCG32000 replace an older Westinghouse PCG32000?
Yes. Because Eaton acquired the Westinghouse electrical distribution line, the Eaton, Cutler-Hammer, and Westinghouse PCG32000 models share the exact same PC-frame footprint and are direct replacements for aging infrastructure.
How is the PCG32000 installed in a panel?
This is a bolt-on circuit breaker that mounts directly to the buswork of compatible Eaton or Westinghouse gear. It utilizes lug terminals for secure cable connections.
