Eaton / Westinghouse QCC3125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- Unit Mount
Quantity

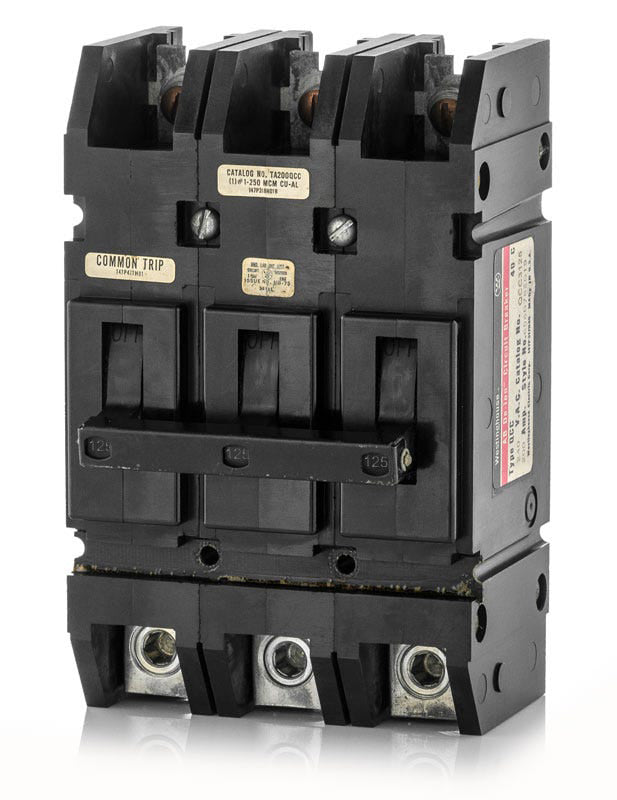

Eaton / Westinghouse QCC3125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Built to handle main service disconnect duties, this 125A Quicklag breaker delivers dependable thermal-magnetic protection. The three-pole configuration is optimized for tenant main applications in residential and commercial settings. Designed for seamless integration, it mounts into Type ECC unit enclosures and Eaton meter stacks. It provides an exact replacement solution for aging infrastructure and crosses over to the CC3125. The unit features a 10kAIC rating at 240VAC and includes lugs.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | QCC3125-R |
| Series | QCC |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QCC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Meter Stacks, Type ECC Unit Enclosures |
| Wire Gauge | #4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, Feed-Thru Connection |
Product FAQs
4 answersWhat equipment is the QCC3125 designed to be installed in?
This main breaker is designed for use in Eaton meter stacks and Type ECC unit enclosures. It features a unit mount, feed-thru connection rather than a standard plug-on or bolt-on panelboard mounting.
Can I use an Eaton QCC3125 to replace an older Westinghouse QCC3125?
Yes. Eaton acquired the Westinghouse distribution equipment line. The QCC3125 manufactured under the Eaton or Cutler-Hammer brand is the exact same form, fit, and function as the original Westinghouse breaker.
What type of wire can be used with the QCC3125 lugs?
The factory lugs accept both copper and aluminum conductors. The supported wire range is 4 AWG to 4/0 AWG. Always apply an approved oxide inhibitor when terminating aluminum wire and torque to the manufacturer specifications.
What type of protection does the fixed thermal magnetic trip provide?
The thermal magnetic trip unit provides Long-Time and Instantaneous protection. The thermal component protects against sustained overloads, while the magnetic component trips immediately during a short circuit. Both settings are fixed and cannot be adjusted in the field.
