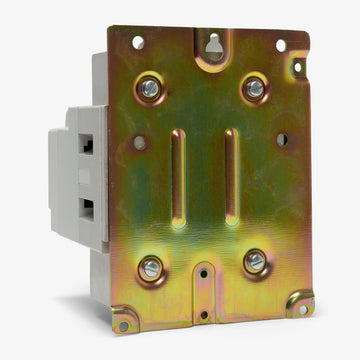

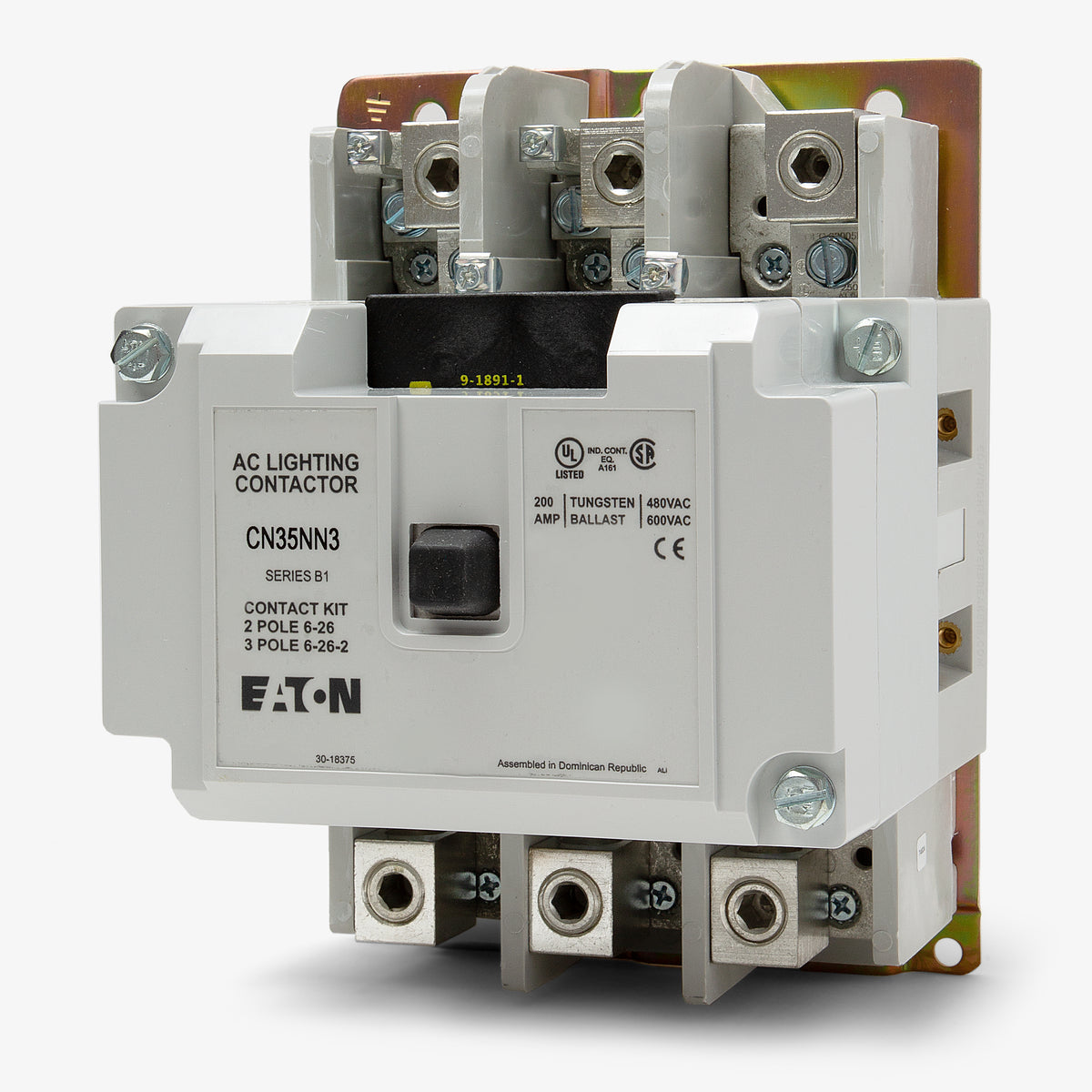

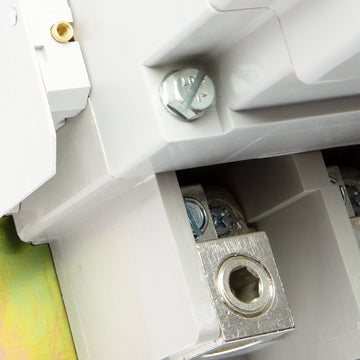

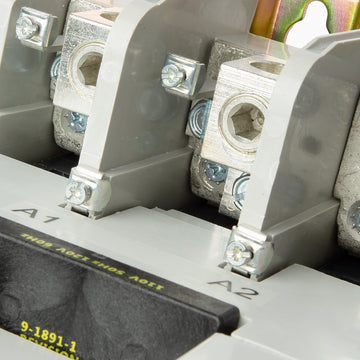

Eaton CN35NN3AB Contactor
The Eaton CN35NN3AB is a 3 Pole contactor with a current rating of 200 Amps and a voltage rating of 600VAC. It has a coil volts of 110/120VAC at 50/60Hz. The CN35NN3AB used for CN35 Electrically Held motor control systems.
Specifications
| Amperage | 200 A |
|---|---|
| Coil Volts | 110/120VAC at 50/60Hz |
| Poles | 3 |
| Voltage | 600VAC |
| Phase | 3 |
|---|
| Frame Type | CN35 |
|---|---|
| Length (in) | 7.25 |
| Width (in) | 7.05 |
| Height (in) | 9.11 |
| For Use With | CN35 Electrically Held Motor Control Systems |
| NEMA Size | 4 |
| Approval | UL, CSA |
|---|
| Series | CN35 |
|---|---|
| Brand | Eaton |
| MPN | CN35NN3AB |
| UPC | 782114821220 |
