Eaton/Cutler-Hammer CHF120 1 Pole Circuit Breaker
New
Quantity
Description

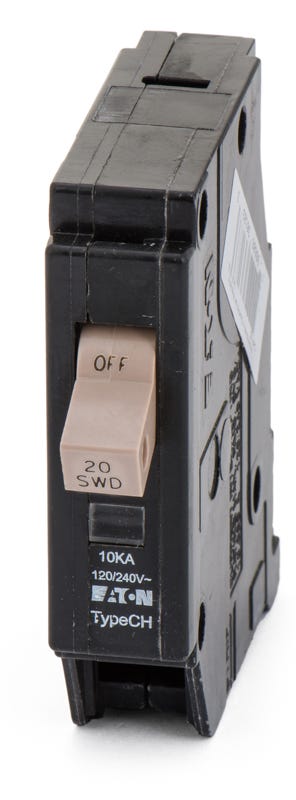

Eaton CHF120 1 Pole Circuit Breaker
The Eaton CHF120 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 20 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120V. The CHF120 has a plug-in connection type and includes long time and instantaneous trip functions.
Specifications
| Amperage | 20 A |
|---|---|
| Voltage | 120/240VAC |
| Series | CHF |
| Poles | 1 |
| Phase | 1 |
|---|---|
| Interrupting Rating | 10kAIC at 120V |
| Mounting Type | Plug-On Mounting Type |
|---|---|
| Frame Type | CH |
| Connection Type | Plug-In |
| Length (in) | 3 |
| Width (in) | 0.75 |
| Height (in) | 3 |
| Wire Gauge | 1x AWG 14 to AWG 8, 2x AWG 14 to AWG 10, Copper/Aluminum |
| For Use With | Type CH Loadcenters |
| Protection | Thermal Magnetic |
|---|---|
| Functions | LI - Long-Time and Instantaneous Trip |
| Circuit Breaker Type | Standard |
| Actuator Type | Toggle |
| Approval | UL |
|---|
| Brand | Eaton/Cutler-Hammer |
|---|---|
| MPN | CHF120 |
| UPC | 786685361840 |
