Eaton/Cutler-Hammer W+200M4CFC Starter
Quantity
Core Specs
See full specs
Eaton/Cutler-Hammer W+200M4CFC Starter
New
Quantity
Description

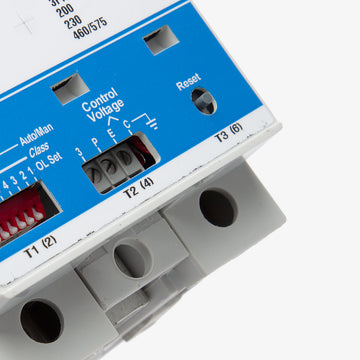

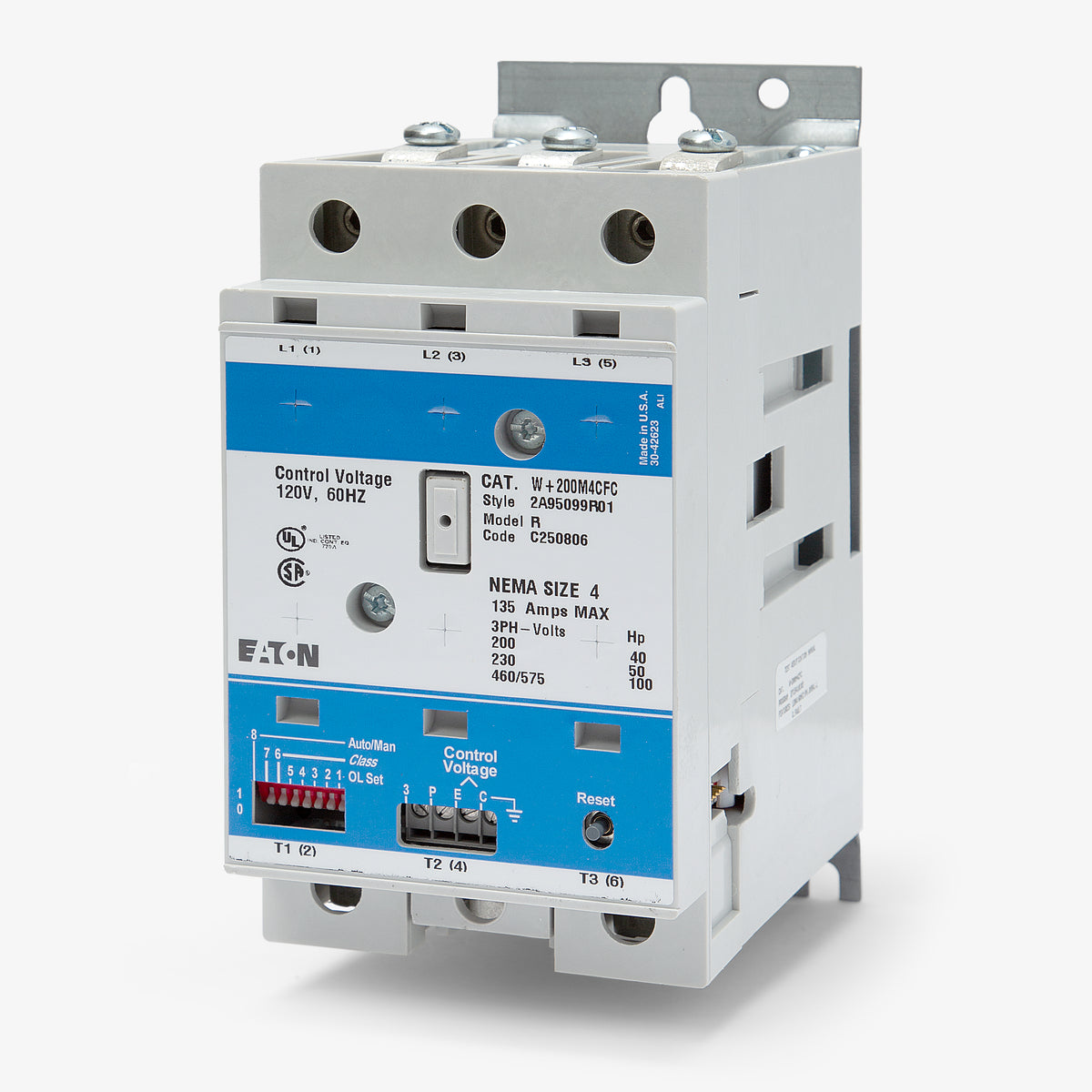

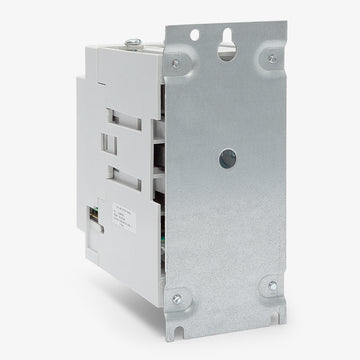

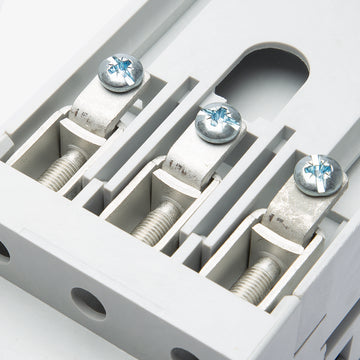

Eaton/Cutler-Hammer W+200M4CFC Starter
The Eaton/Cutler-Hammer W+200M4CFC is a 3 Pole starter with a current rating of 135 Amps and a voltage rating of 600VAC. It has a coil volts of 120VAC at 60Hz. The W+200M4CFC used for Advantage series motor control systems.
Specifications
| Amperage | 135 A |
|---|---|
| Coil Volts | 120VAC at 60Hz |
| Poles | 3 |
| Voltage | 600VAC |
| Phase | 3 |
|---|
| Mounting Type | Surface |
|---|---|
| Frame Type | W+200 |
| For Use With | Advantage Series Motor Control Systems |
| NEMA Size | 4 |
| Action | Non-Reversing |
|---|
| NEMA Rating | 4 |
|---|
| Series | W2 |
|---|---|
| Brand | Eaton/Cutler-Hammer |
| MPN | W+200M4CFC |
| UPC | 782114974933 |
